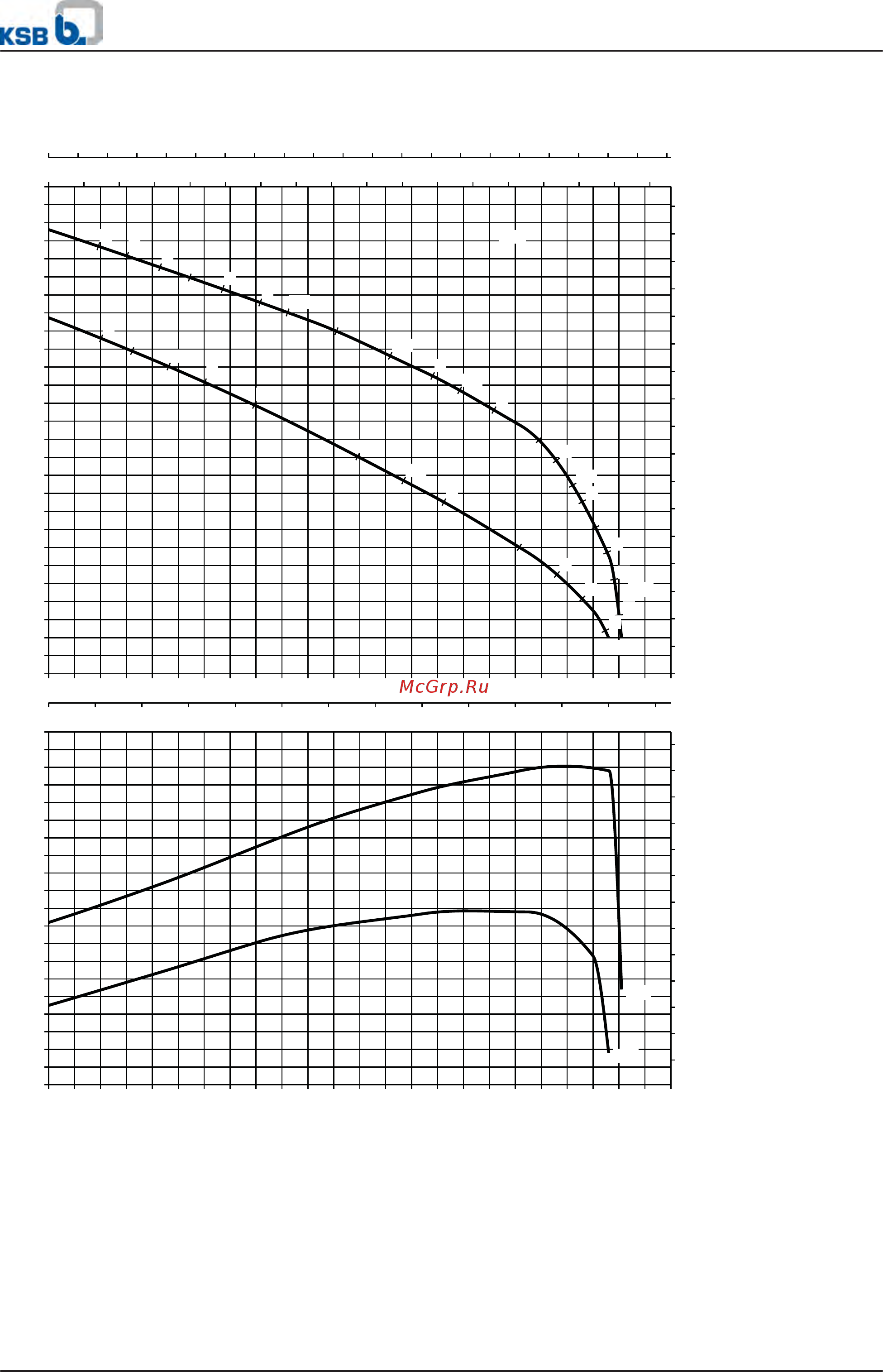

Amarex N S 50-222, n = 2900 rpm
Characteristic curves to ISO 9906 Class 2A / 3B, below 10 kW to § 4.4.2. They refer to the effective motor speed.
K2563-52-15/0
0 5 10 15 20Q [m³/h]
0 20 40 60 80 100Q [US.gpm]
0 20 40 60 80Q [IM.gpm]
0
10
20
30
40
50
54
H [m]
0
50
100
150
H [ft]
0 2 4 6Q [l/s]
1.5
2.0
2.5
3.0
3.5
P [kW]
3
4
P [hp]
0 5 10 15 20Q [m³/h]
ø190
ø190
ø175
ø175
42.3
10
15
15
20
20
24
24
28
28
32
32
34.5
34.5
38
38
40.5
40.5
42
42
32.4
10
15
15
20
20
24
24
28
28
32
32
η [%]
Free passage = 6 mm
Waste Water
Submersible Motor Pump
14
Amarex N
