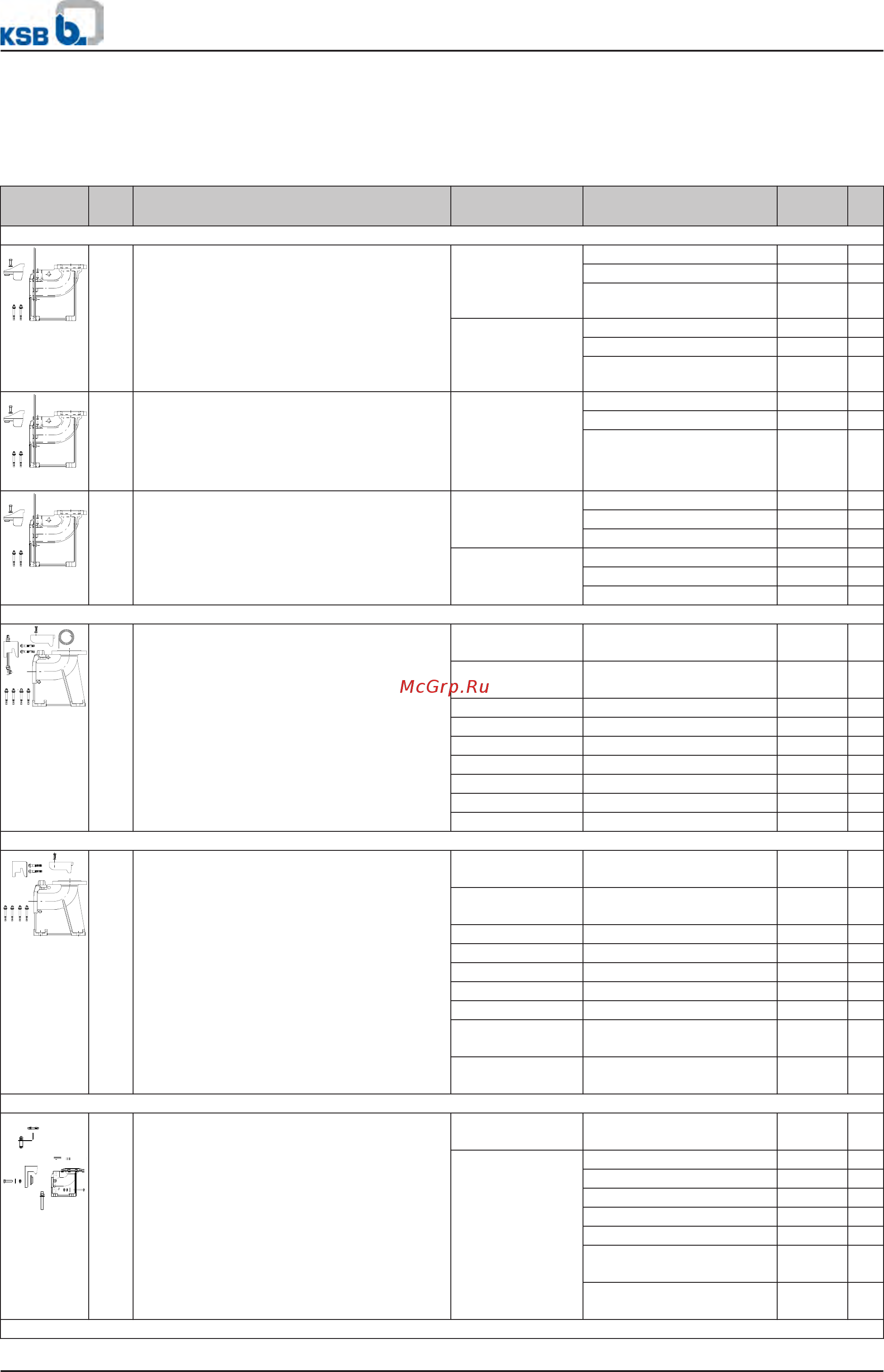

Accessories
Installation parts for stationary pump sets
Overview of installation parts for stationary installation
Item Description Sizes Connection/
installation depth
Mat. No. [kg]
Guide hoop arrangement
P2 +
P5
Installation parts for stationary wet
installation (guide hoop arrangement)
Consisting of: DN 50 flanged duckfoot bend,
stainless steel anchor bolts, guide rail, claw
with stainless steel screws/bolts
Amarex DN 50,
DN 3: DIN ISO
ASME
straight claw
Inst. depth 1.5 m 39022210 9
Inst. depth 1.8 m 39022211 10
Inst. depth 2.1 m 39022212 11
Amarex N DN 50,
DN 3: DIN ISO
ASME
inclined claw
Inst. depth 1.5 m 39022213 14
Inst. depth 1.8 m 39022214 15
Inst. depth 2.1 m 39022215 14
P2 +
P5
Installation parts for stationary wet
installation (guide hoop arrangement)
Consisting of: DN 65 flanged duckfoot bend,
stainless steel anchor bolts, guide hoop, claw
with stainless steel screws/bolts
Amarex N DN 65,
DN 3: DIN ISO
ASME
Inst. depth 1.5 m 39020827 14.5
Inst. depth 1.8 m 39020828 15.5
Inst. depth 2.1 m 39020829 17
P2 +
P5
Installation parts for stationary wet
installation (guide hoop arrangement)
Consisting of: DN 65/80 flanged duckfoot
bend, stainless steel anchor bolts, guide rail,
claw with stainless steel screws/bolts
Amarex N
DN 65/80,
DN 3: DIN/ISO
Inst. depth 1.5 m 39020848 16
Inst. depth 1.8 m 39020849 17
Inst. depth 2.1 m 39020850 18.5
Amarex N
DN 65/80,
DN 3: ASME
Inst. depth 1.5 m 39022255 16
Inst. depth 1.8 m 39022256 17
Inst. depth 2.1 m 39022257 16
Guide wire arrangement
P4 +
P5
Installation parts for stationary wet
installation, installation depth 4.5 m (guide
wire installation)
Consisting of: flanged duckfoot bend,
stainless steel anchor bolts, suspension
bracket, mounting bracket, 10 m guide wire,
claw with stainless steel screws/bolts
Amarex N
straight claw
DN 50, DN 3: DIN ISO ASME 39022196 13
Amarex N
inclined claw
DN 50, DN 3: DIN ISO ASME 39022200 18
Amarex N DN 65, DN 3: DIN ISO ASME 39020820 13.8
Amarex N DN 65/80, DN 3: DIN/ISO 39020834 19.1
Amarex N DN 65/80, DN 3: ASME 39020838 19.1
Amarex N DN 80, DN 3: DIN/ISO 39020988 35
Amarex N DN 80, DN 3: ASME 39020992 41
Amarex N DN 80/100, DIN ISO ASME 39021002 31.5
Amarex N DN 100, DIN ISO ASME 39021009 41
Single guide rail arrangement
P4 +
P5
Installation parts for wet-installed stationary
pump sets (single guide rail arrangement) for
installation depth = 4.5 m
Consisting of: flanged duckfoot bend,
stainless steel anchor bolts, mounting
bracket, claw with stainless steel screws/bolts
(guide rail not included in KSB's scope of
supply)
Amarex N
straight claw
DN 50, DN 3: DIN ISO ASME 39022204 12.5
Amarex N
inclined claw
DN 50, DN 3: DIN ISO ASME 39022207 18.5
Amarex N DN 65, DN 3: DIN ISO ASME 39021191 14.8
Amarex N DN 65/80, DN 3: DIN/ISO 39021194 18.7
Amarex N DN 65/80, DN 3: ASME 39021197 19.2
Amarex N DN 80, DN 3: DIN/ISO 39021200 26
Amarex N DN 80, DN 3: ASME 39021203 29.6
Amarex N DN 80/DN 100, DN 3: DIN
ISO ASME
39021206 31
Amarex N DN 100, DN 3: DIN ISO
ASME
39021209 26.8
Twin guide rail arrangement
x2
x4
x4
P4 +
P5
Installation parts for stationary wet
installation (twin guide rail arrangement)
Consisting of: flanged duckfoot bend,
stainless steel anchor bolts, mounting
bracket, adapter, claw with stainless steel
screws/bolts (guide rails not included in KSB's
scope of supply)
Amarex N
inclined claw
DN 50, DN 3: DIN ISO ASME 39023002 14
Amarex N
straight claw
DN 65, DN 3: DIN ISO ASME 39023006 19.5
DN 65/80, DN 3: DIN/ISO 39023009 22.8
DN 65/80, DN 3: ASME 39023012 24.5
DN 80, DN 3: DIN/ISO 39023018 32
DN 80, DN 3: ASME 39023021 32
DN 80/100, DN 3: DIN ISO
ASME
39023024 34
DN 100, DN 3: DIN ISO
ASME
39023027 34
Claw
Waste Water
Submersible Motor Pump
Amarex N
41
