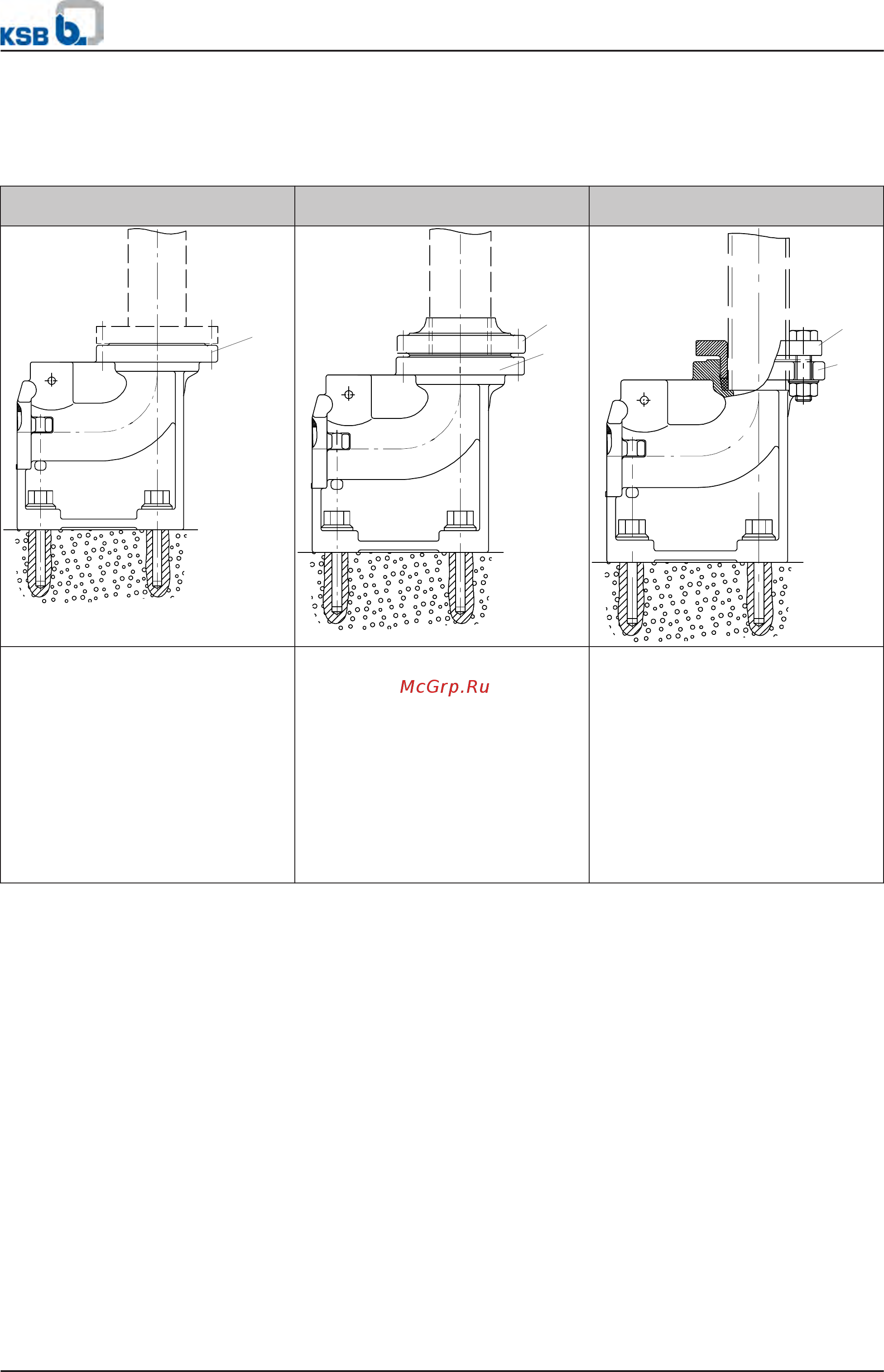

Dimensions and connections
Connections
Discharge line connections at the duckfoot bend
Flanged connection (DN 50/DN 65) Threaded connection in the flange
(DN 50/DN 65)
Clamped connection (DN 50/DN 65)
P2 / P4
P27
P2 / P4
P8
P2 / P4
For standard pipes to DIN 2440 / DIN 2441
▪ With outside diameter of 60.3 mm,
steel for DN 50
▪ With outside diameter of 63 mm, PVC
(ISO 3606) for DN 50
▪ With threaded flange DN 50 - G 2″
▪ With outside diameter of 76.1 mm,
steel for DN 65
▪ With outside diameter of 75 mm, PVC
(ISO 3606) for DN 65
▪ With threaded flange DN 65 - G 2
1
/
2
″
For standard pipes to DIN 2440 /
DIN 2441 / DIN 2448
▪ With outside diameter of 60.3 mm,
steel for DN 50
▪ With outside diameter of 63 mm, PVC
(ISO 3606) for DN 50
▪ With outside diameter of 76.1 mm,
steel for DN 65
▪ With outside diameter of 75 mm, PVC
(ISO 3606) for DN 65
Waste Water
Submersible Motor Pump
Amarex N
23
