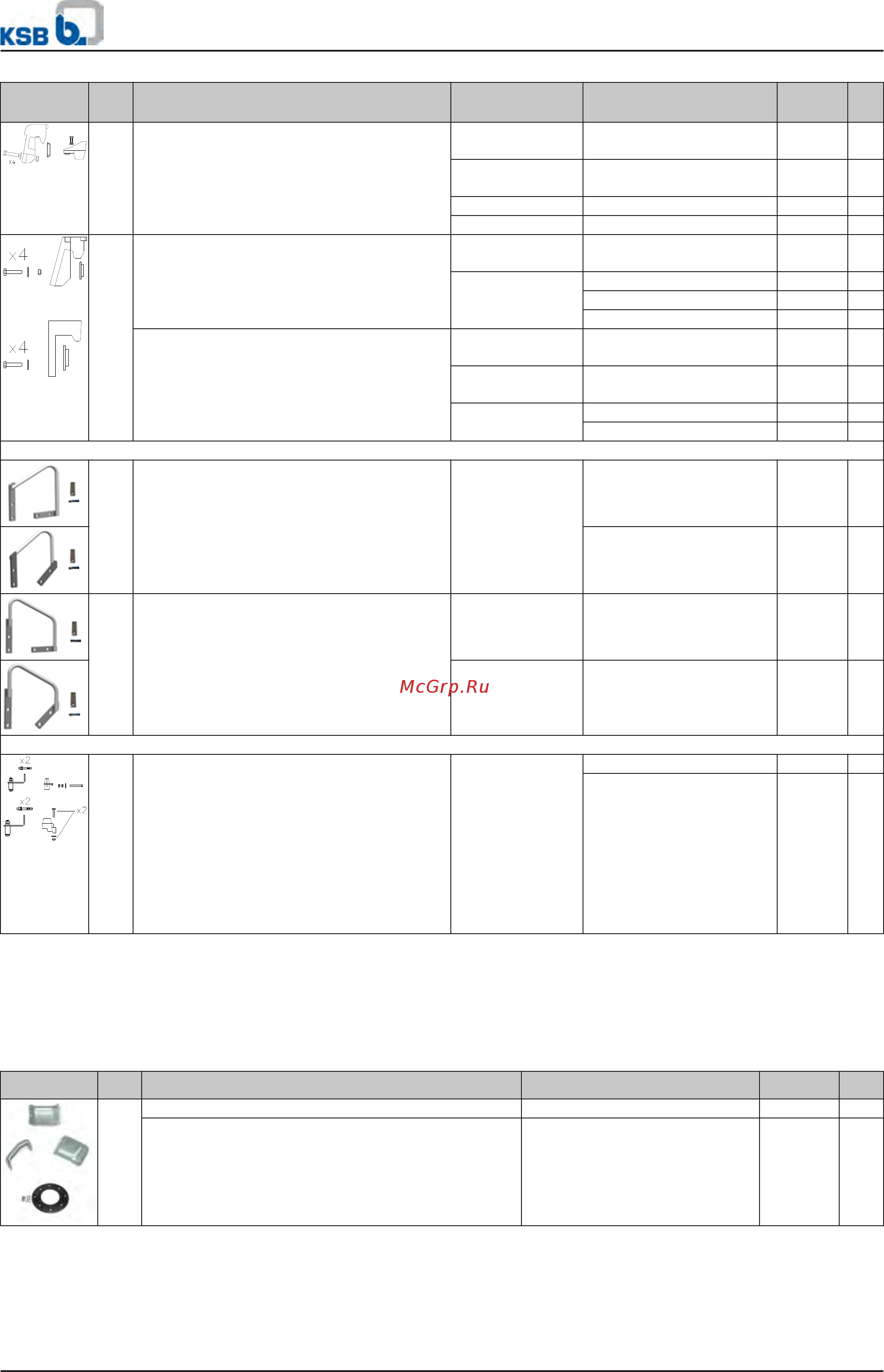

Item Description Sizes Connection/
installation depth
Mat. No. [kg]
P5 Claw for Amarex N EN-GJL-250 with stainless
steel screws/bolts
Guide hoop arrangement for DN 50 and
DN 65; guide wire and single guide rail
arrangement for all DN
Amarex N
straight claw
DN 50 39022248 1.1
Amarex N
inclined claw
DN 50 39022252 7
Amarex N DN 65 39021018 1.9
Amarex N DN 80/DN 100 39021020 3.1
P5 Claw for Amarex N EN-GJL-250 with stainless
steel screws/bolts
Twin guide rail arrangement
Amarex N
inclined claw
DN 50 39022990 6
Amarex N
straight claw
DN 65 39022993 7.3
DN 80 39022996 9.7
DN 100 39022999 14.7
Claw for Amarex EN-GJL-250 with stainless
steel screws/bolts
Guide wire, single guide rail, guide hoop
arrangement
Amarex
straight claw
DN 50 39021016 1.1
Amarex
inclined claw
DN 50 19551046 5
Amarex DN 65 39021018 1.9
DN 80/DN 100 39021020 3.1
Lifting bail
x 2
x 4
Lifting bail made of stainless steel 1.4306 with
A4-70 bolts, for lowering the pump set at an
angle
Amarex N DN 50 39022395 0.6
x 2
x 4
DN 65/DN 80/DN 100 39018004 1
x 2
x 4
Lifting bail made of stainless steel 1.4306
With A4-70 screws/bolts, for lowering the
pump set in a vertical position
Amarex N DN 32/50 39023593 0.85
x 2
x 4
Amarex N DN 65/DN 80/DN 100 39023594 1.2
Conversion parts
Parts for conversion to twin guide rail
arrangement, consisting of: mounting
bracket, stainless steel screws/bolts, adapter,
anchor bolts
Note: required for conversion of guide hoop,
guide wire or single guide rail arrangement
to twin guide rail arrangement
Note: for twin guide rail arrangements a claw
is mandatory.
DN 50/DN 65 39022984 1.4
DN 80/DN 100 39022987 2.5
Off-standard designs on request.
Installation parts for transportable pump sets
Overview of installation parts for transportable pump sets
Item Description Sizes Mat. No. [kg]
P6 3 feet Amarex N DN 50, 65, 80, 100 39022260 0.4
Footplate incl. bolts
(only for uneven mounting surfaces and in
combination with feet)
Amarex N DN 50, 65, 80, 100 39022262 0.9
Waste Water
Submersible Motor Pump
42
Amarex N
