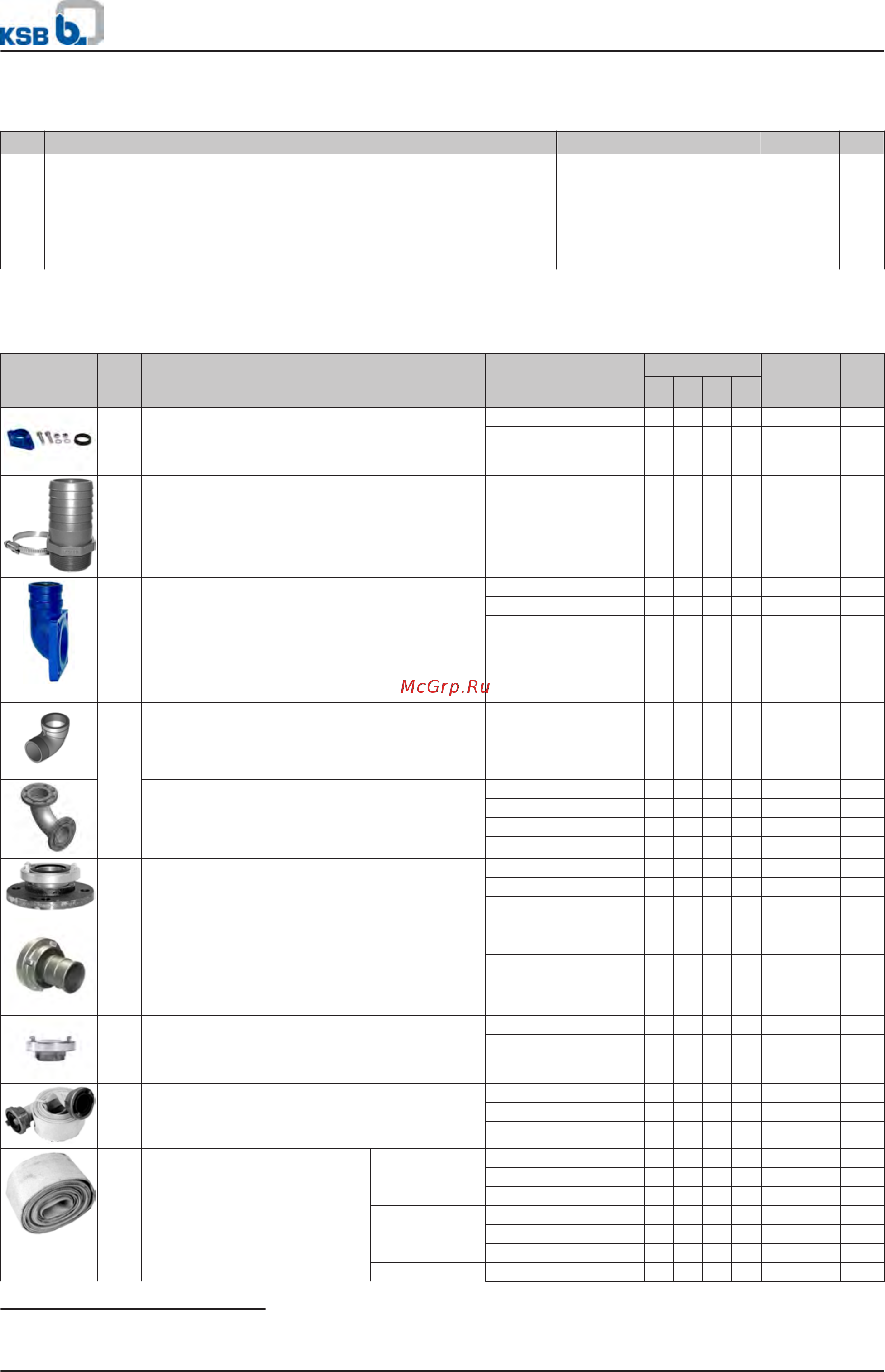

Chain for stationary and transportable pump sets
Overview of chains for stationary and transportable pump sets
Item Description Sizes Mat. No. [kg]
P7 Chain (1.4404) short-linked, tested and duly labelled to Directive
2006/42/EC (Machinery Directive), hook (1.4301), shackle (1.4404)
Maximum load: 160 kg
2 m Amarex N DN 50, 65 39023811 1.2
3 m Amarex N DN 50, 65, 80, 100 39023812 1.6
5 m Amarex N DN 50, 65, 80, 100 39023813 2.4
10 m Amarex N DN 50, 65, 80, 100 39023814 4.4
Polypropylene lifting rope with shackle 1.4401 and hook
1.4571
22)
5 m Amarex N DN 50, 65, 80, 100 39021975 2.5
Pump accessories
Overview of accessories for stationary and transportable pump sets
Item Description Connection Amarex N Mat. No. [kg]
50
65
80
100
P8 Flange for pipe coupling PN 10, at the flanged
elbow, mating dimensions to PN 16
DN 50/R2 ✘ - - - 19551111 1.2
DN 65/R2 1/2 - ✘ - - 39020184 1.2
P9 PVC adapter for hose connection, with 1 hose
clip, plastic hose of inside diameter 63 item 19
R2 ✘ - - - 11191498 0.3
P13 Connection elbow with flange/hose connection
made of EN-GJL-250, grey cast iron
PN 16, DIN 2501, including joint ring and hose
clip; for DN 100 also with fixing bolts
To be used for flange connections item 25 /
item 26 (not for DN 100).
DN 65/B 75 - ✘ - - 19135655 6
DN 80/B 75 - - ✘ - 19131746 6.6
DN 100/A 110 - - - ✘ 19139718 10
P14 Elbow with internal thread/external thread (to be
used for flange connection item 27 and item 30),
galvanised grey cast iron
R2 ✘ - - - 00241966 0.3
Connection elbow with flanges PN 16, DIN 2501
(to be used for flange connections item 25 or
item 26), grey cast iron
DN 65/65 - ✘ - - 00265480 11
DN 65/80 - ✘ - - 25198402 8
DN 80/80 - - ✘ - 11150856 10
DN 100/100 - - - ✘ 25145802 14.4
P15 Storz rigid coupling with flange, to DIN 2501,
drilled to PN 16 (to be used for flange connection
item 25 or item 26), aluminium/steel
DN 65/B 75 - ✘ - - 18040148 3.5
DN 80/B 75 - - ✘ - 18072642 3.5
DN 100/A 110 - - - ✘ 18060162 5
P16 Storz hose coupling, aluminium alloy
2 hose clips, item 20, are required for hose
mounting (for plastic hoses B 75 and A 110, item
19)
C 52 (DIN 14321) ✘ - - - 00524551 0.3
B 75 (DIN 14322) - ✘ ✘ - 00520454 0.7
A 110 (DIN 14323) - - - ✘ 00522313 1.5
P17 Storz rigid coupling with external thread to
DIN ISO 228/1
C 52/G 2 A ✘ - - - 00524370 0.2
B 75 - G 2 1/2 - ✘ - - 00524371 0.4
P18 Plastic hose DN 50, DIN 14811, with integrated C
couplings
C 52 ✘ - - - 00522262 2.3
C 52 ✘ - - - 00522263 4.2
C 52 ✘ - - - 00522264 5.7
P19 Plastic hose
without coupling, DIN 14 811
63 5 ✘ - - - 39018688 1.7
10 ✘ - - - 39018689 3.4
20 ✘ - - - 39018690 6.8
B 75 5 - ✘ ✘ - 39019064 2
20 - ✘ ✘ - 39019066 8
30 - ✘ ✘ - 39019071 12
80 5 - - ✘ - 39018691 2.2
22)
Increase quantity for larger installation depths.
Waste Water
Submersible Motor Pump
Amarex N
43
