Dimensions

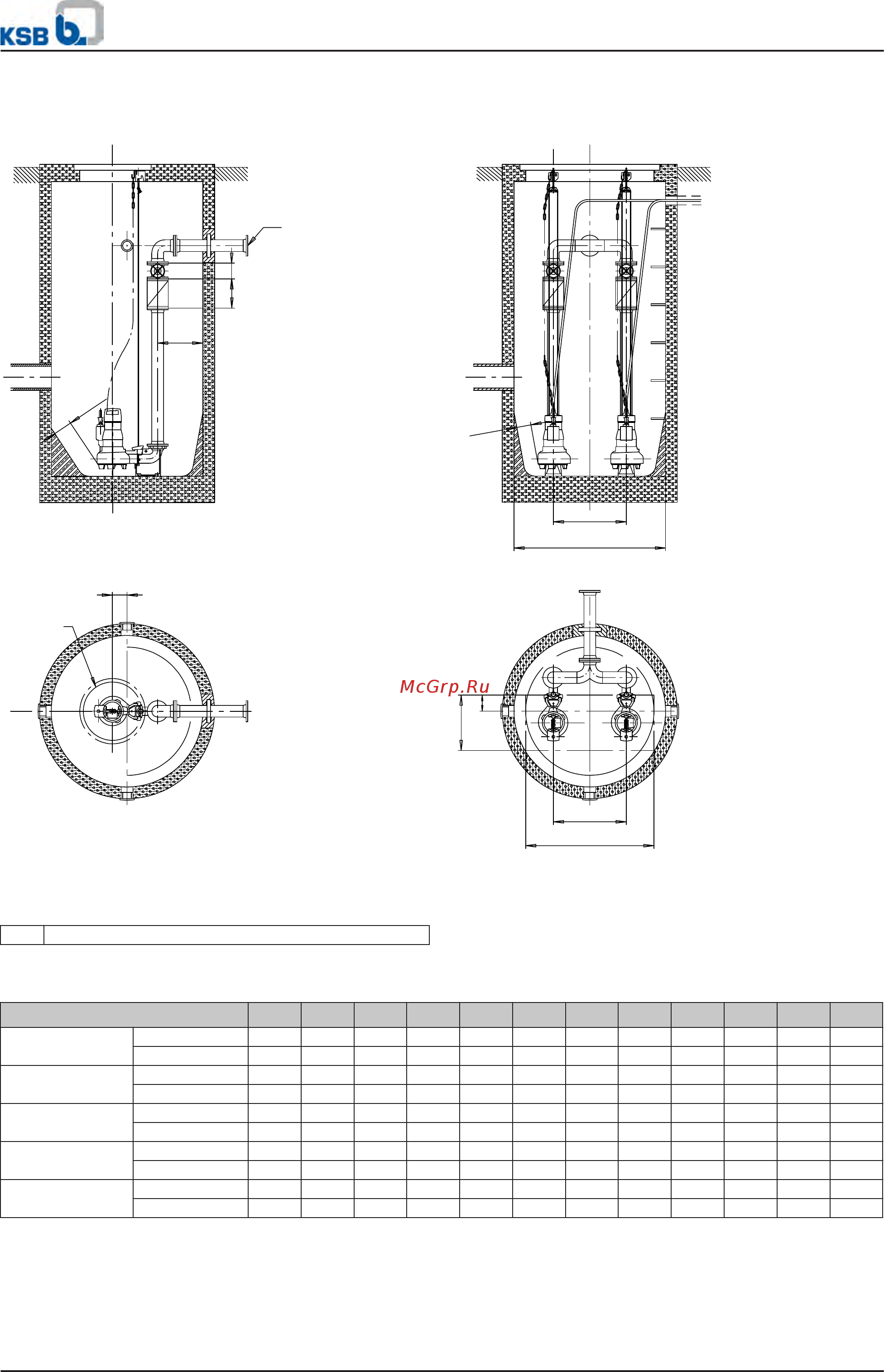

Guide wire arrangement
Amarex N 50, 65, 80, 100
DN
2
G
K
B
≥ DN
1
L
ØA
≥ DN
1
E
ØD
E
Na)
Ma)
O
Single-pump station for 4.5 m installation depth
Flanged duckfoot bend
Dual-pump station for 4.5 m installation depth
Flanged duckfoot bend
a) minimum
Dimensions [mm]
Amarex N Ø A B Ø D E G K L M N O DN
1
DN
2
S 50-172 /
F 50-170
1 pump 625 165 1000 - 75 150 42 - - - 50 50
2 pumps - 235 1000 300 75 150 - 550 700 200 50 50
S 50-222 /
F 50-220
1 pump 625 165 1000 - 75 150 42 - - - 50 50
2 pumps - 235 1000 300 75 150 - 550 700 200 50 50
F 65-170 /
F 65-220
1 pump 625 175 1000 - 180 260 92 - - - 65 65
2 pumps - 360 1200 600 180 260 - 550 1000 135 65 65
F 80-220 /
D 80-220
1 pump 625 200 1000 - 180 260 25 - - - 80 80
2 pumps - 320 1200 600 180 260 - 600 1000 168 80 80
F 100-220 1 pump 625 200 1000 - 190 300 65 - - - 100 100
2 pumps - 320 1200 600 190 300 - 600 1000 128 100 100
Waste Water
Submersible Motor Pump
Amarex N
39
