No. Name Setting Range Default
b3-523 Backspin Search Deceleration Time 2 0.1 to 10.0 s 2.0 s
u
b4: Timer Function
The timer function is independent of drive operation and can delay the switching of a digital output triggered by a digital input
signal and help eliminate chattering switch noise from sensors. An on-delay and off-delay can be set separately.
To enable the timer function, set a multi-function input to “Timer Function Input” (H1-oo = 18) and set a multi-function
output to “Timer output” (H2-oo = 12). Only one timer can be used.
n
b4-01, b4-02: Timer Function On-Delay, Off-Delay Time
b4-01 sets the on-delay time for switching the timer output. b4-02 sets the off-delay time for switching the timer output.
No. Name Setting Range Default
b4-01 Timer Function On-Delay Time 0.0 to 3000.0 s 0.0 s
b4-02 Timer Function Off-Delay Time 0.0 to 3000.0 s 0.0 s
n

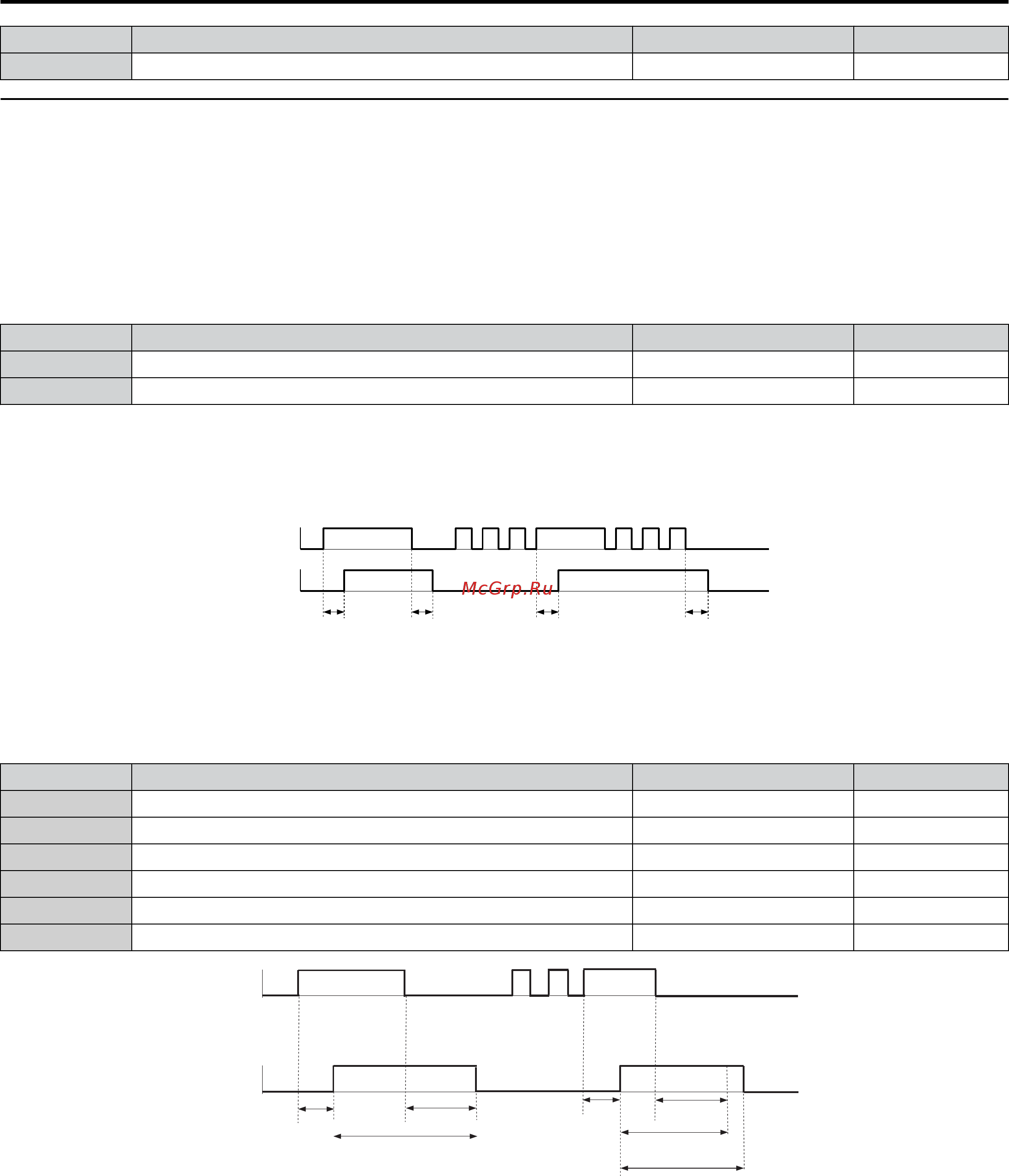

Timer Function Operation
The
timer function
switches on when the timer function input closes for longer than the value set to b4-01. The timer function
switches off when the timer function input is open for longer than the value set to b4-02. Figure 5.22 illustrates the timer
function operation:
b4-01 b4-02 b4-01 b4-02
Multi-function Contact
Input: Timer Function
On (Closed)
Off (Open)
On (Closed)
Off (Open)
Multi-function Contact
Output: Timer Function
ON ON
ON ON
Figure 5.22 Timer Operation
n
b4-03 to b4-08: H2-oo ON-Delay and OFF-Delay Time
Sets the length of the delay time for contact outputs to open or close for the related functions set in H2-oo.
No. Name Setting Range Default
b4-03 H2-01 ON Delay Time 0 to 65000 ms 0 ms
b4-04 H2-01 OFF Delay Time 0 to 65000 ms 0 ms
b4-05 H2-02 ON Delay Time 0 to 65000 ms 0 ms
b4-06 H2-02 OFF Delay Time 0 to 65000 ms 0 ms
b4-07 H2-03 ON Delay Time 0 to 65000 ms 0 ms
b4-08 H2-03 OFF Delay Time 0 to 65000 ms 0 ms
ON
ON ON
ON
Internal data of H2-01
Multi-Function Digital
Outputs of H2-01
b4-03
b4-04
b4-03
On (Closed)
Off (Open)
On (Closed)
Off (Open)
b4-04
Time period that the multi- function
digital output is closed 100 ms
Time period that the multi-function
digital output is closed < 100 ms
Time period that the multi-function
digital output is closed = 100 ms
Note: The multi-function digital
output closes for at least 100 ms even when the length of the off-delay time and on-delay time for multi-function
digital output are each shorter than 100 ms,
5.2 b: Application
176
YASKAWA ELECTRIC SIEP C710636 04C U1000 Industrial MATRIX Drive Technical Manual
