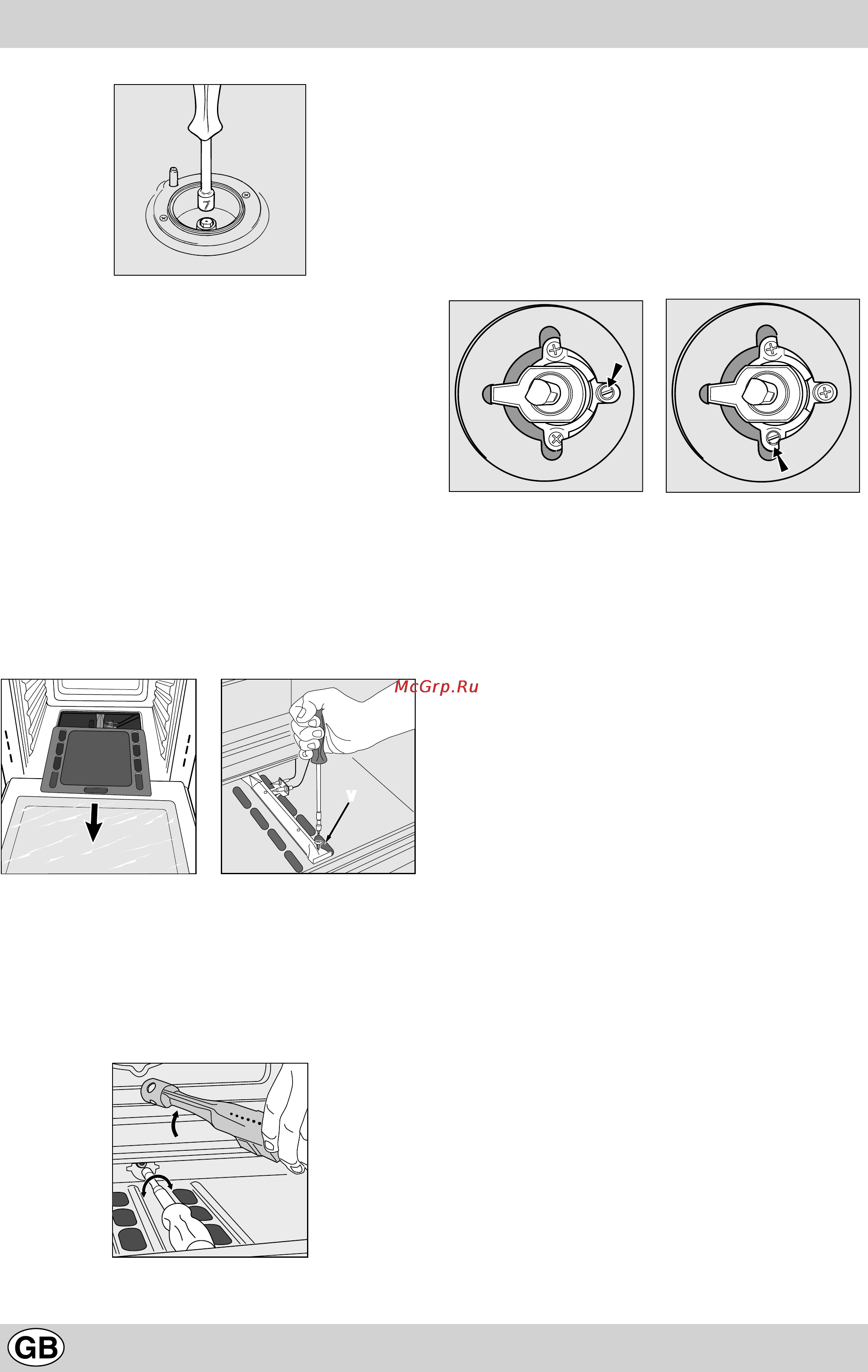

c) Minimum regulation of the hob burners:

•

Turn the tap to minimum;

• Remove the knob and adjust the regulation screw, which

is positioned in or next to the tap pin, until the flame is

small but steady.

N.B.: In the case of liquid gas, the regulation screw

must be screwed in all the way.

• Check that the flame does not go out when you turn the

tap quickly from high to low.

d) Regulating the primary air of the burners: The primary air

of the burners does not need to be regulated.

Adapting to different types of gas

In order to adapt the oven to a different type of gas with

respect to the gas for which it was manufactured (indi-

cated on the label), follow these simple steps:

a) Replacing the oven burner nozzle

· open the oven door fully

· pull out the sliding oven bottom

· unscrew the burner fastening screws

· remove screw “V” and then the oven burner;

· Unscrew the oven burner nozzle using the special

socket spanner for the nozzles, or a 7 mm socket span-

ner, and replace it with a nozzle suited to the new type

of gas (see Table 1).

Take particular care handling the spark plug wires

and the thermocouple pipes.

· Replace all the parts, following the steps described

above in the reverse order.

b) Regulating the minimum for the gas oven burner with

thermostat:

• Light the burner as described in the paragraph “The Oven

Knob” in the instruction booklet;

• urn the knob first to the Max setting for about 10 minutes

and then to Min;

• Remove the knob;

• Adjust the screw located outside the thermostat pin

until the flame is small but steady;

N.B.: In the case of liquid gas, the adjustment screw

must be screwed all the way in.

• Check that the burner does not turn off when you turn

the knob from Max to Min and when you open and close

the oven door quickly.

Regulating the Primary Air for the Oven Burner

The oven burner do not need to be regulated in terms of

primary air.

Important

On completion of this operation, replace the old rating sticker

with one indicating the new type of gas used. This sticker is

available from our Service Centres.

Note

Should the pressure of the gas used be different (or vary)

from the recommended pressure, it is necessary to fit a

suitable pressure regulator onto the inlet pipe in

compliance with current National Regulations relative to

“regulators for channelled gas”.
