4
The following instructions should be read by a qualified
technician to ensure that the appliance is installed,
regulated and technically serviced correctly in compliance
with current regulations.
Important: disconnect the cooker from the electricity when
making any adjustement, maintenance operation, etc.
Positioning
The cooker is prepared with protection degree against
excessive heating of type X, the appliance can therefore
be installed next to cabinets, provided the height does not
exceed that of the hob

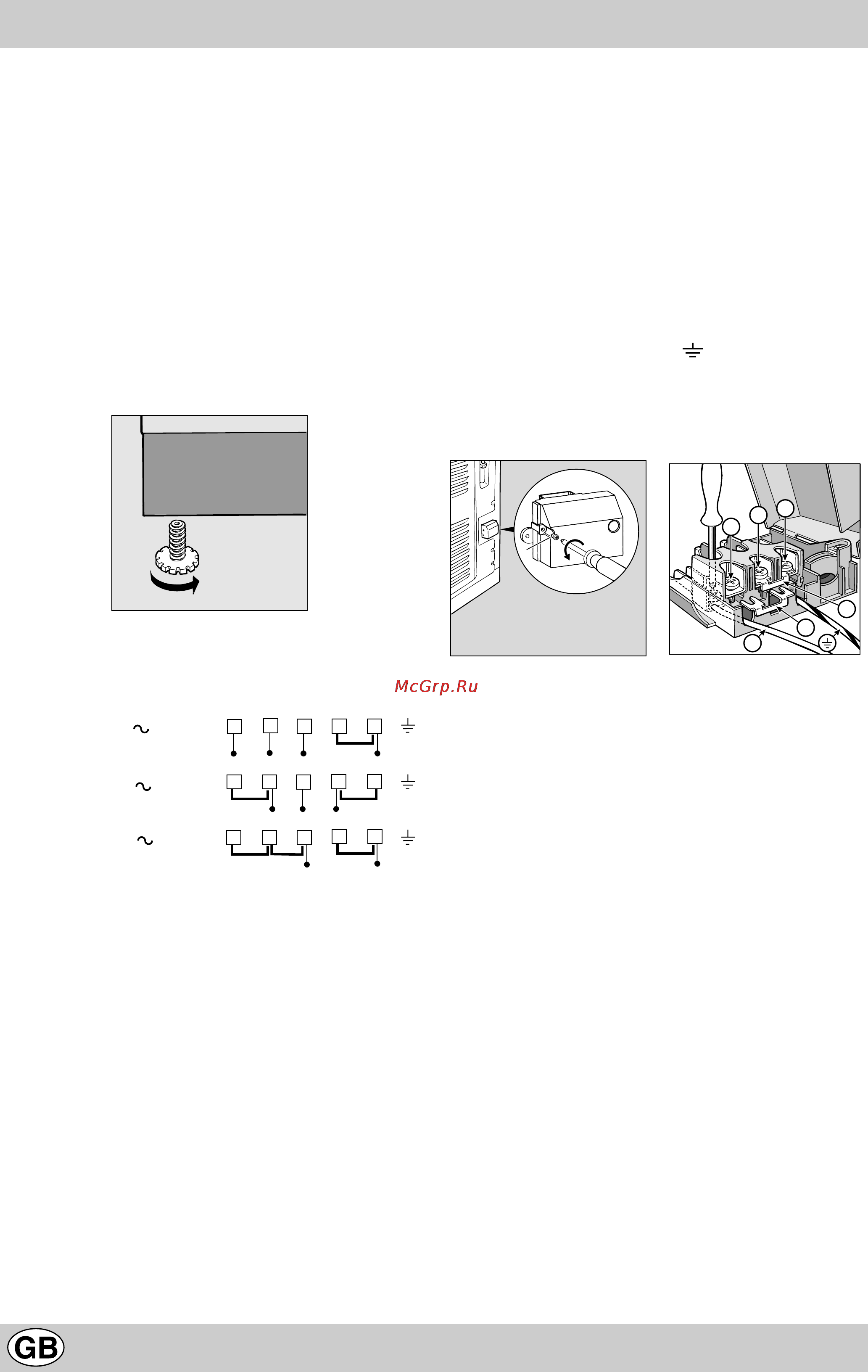

Levelling
In order to have a perfect levelling of the cooker adjustable
feets are supplyed (see Fig.1). They can be screwed in
the seats positioned in the corners of the cooker base.
Electrical connection
The power supply cable since its size depends on the
electric connection (see the following connection diagram).
1 2
3
4
5
12345
1
2
3
4
5
R
S
T
N
R
S
N
R
N
400 3N
H05RR-F 5x2.5 CEI-UNEL 35363
400V 2N
H05RR-F 4x2.5 CEI-UNEL 35363
230V 1N
H07RN-F 3x4 CEI-UNEL 35364
Installation
Feeding cable installation
Terminal block opening:
· Unscrew screw “V”
· Pull and open the junction block lid
For the installation of the feeding cable carry out the
following operations:
· position the small connection A-B according to the type
of connection that has to be performed using the
scheme shown in the figure 3.
Note: the small connections are prepared by the Factory
for the 230V monophase connection (contacts 1-2-3 are
connected to one another). The bridge 4-5 is situated in
the lower part of the terminal block.
· introduce the cables (N and ) as shown in the figu-
re and tighten the relative screws.
· fix the remaining cables on the 1-2-3 clips.
· fix the feeding cable in the special cable stop and close
the cover fastening it with the screw “V”.
V
1
2
3
N
A
B
Connecting the supply cable to the mains
Fit a plug, normalised for the load indicated on the data
plate, on the cable; when making the connection directly
to the mains, an omnipoIar switch with a minimum opening
of 3 mm between the contacts, must be installed between
the appliance and the mains. This switch must be sufficient
for the load and must comply to regulations in force (the
earthing wire must not be interrupted by the switch). The
power supply cable must be positioned so that it does not
exceed 50°C more than room temperature at any point of
its length. Before making the connection check that:
· the limiter valve and the home system can support the
appliance load (see data plate);
· the power supply system has an efficient earthing
connection which complies with the provisions of
current regulations;
· the socket or omnipoar circuit-breaker is easily
accessible once the cooker has been installed.
