- 8 -
4.2. Controller Architecture

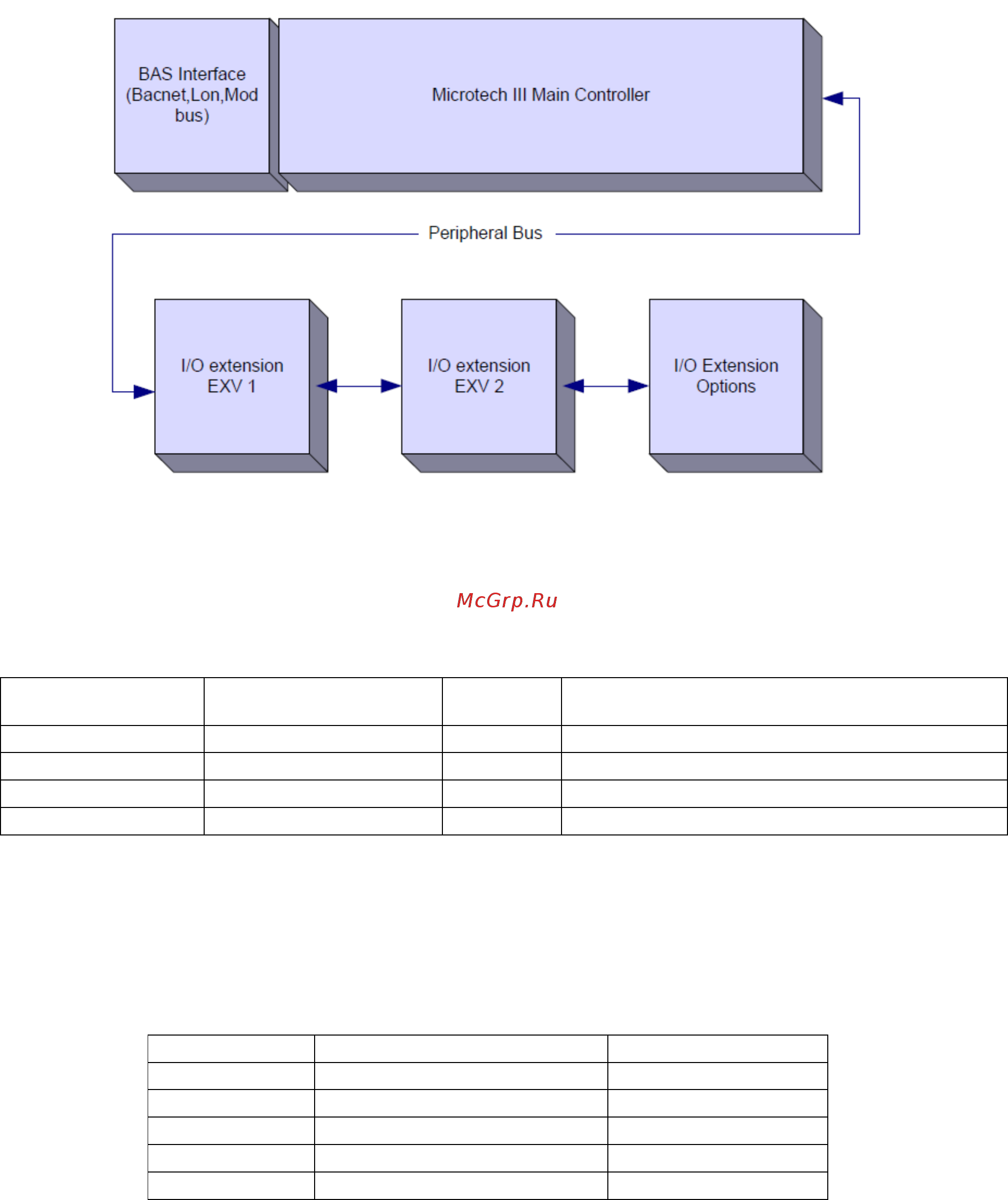

The overall controller architecture is the following:
• One MicroTech III main controller
• I/O extensions as needed depending on the configuration of the unit
• Communications interface(s) as selected
4.3. Controller and Extension Details
Peripheral Bus is used to connect I/O extensions to the main controller.
Controller/
Extension Module
Siemens Part Number Address Usage
Main Controller POL687.70/MCQ n/a Used on all configurations
EEXV Module 1 POL94E.00/MCQ 3 Used on all configurations
EEXV Module 2 POL94E.00/MCQ 5 Used when configured for 2 circuits
Options Module
POL965.00/MCQ 18
Used when configured for at least one option
4.4. Communication Modules
Any of the following modules can be connected directly to the left side of the main controller to allow a BAS or
other remote interface to function. Up to three can be connected to the controller at a time. The controller should
automatically detect and configure itself for new modules after booting up. Removing modules from the unit will
require manually changing the cshouldonfiguration.
Module Siemens Part Number Usage
BacNet/IP POL908.00/MCQ Optional
Lon POL906.00/MCQ Optional
Modbus POL902.00/MCQ Optional
BACnet/MSTP POL904.00/MCQ Optional
AWM POL909.00/MCQ Optional
