Pre-Test Run Checks ESIE-0302
4–18 Part 4 – Commissioning and Test Run
3
1
4
5

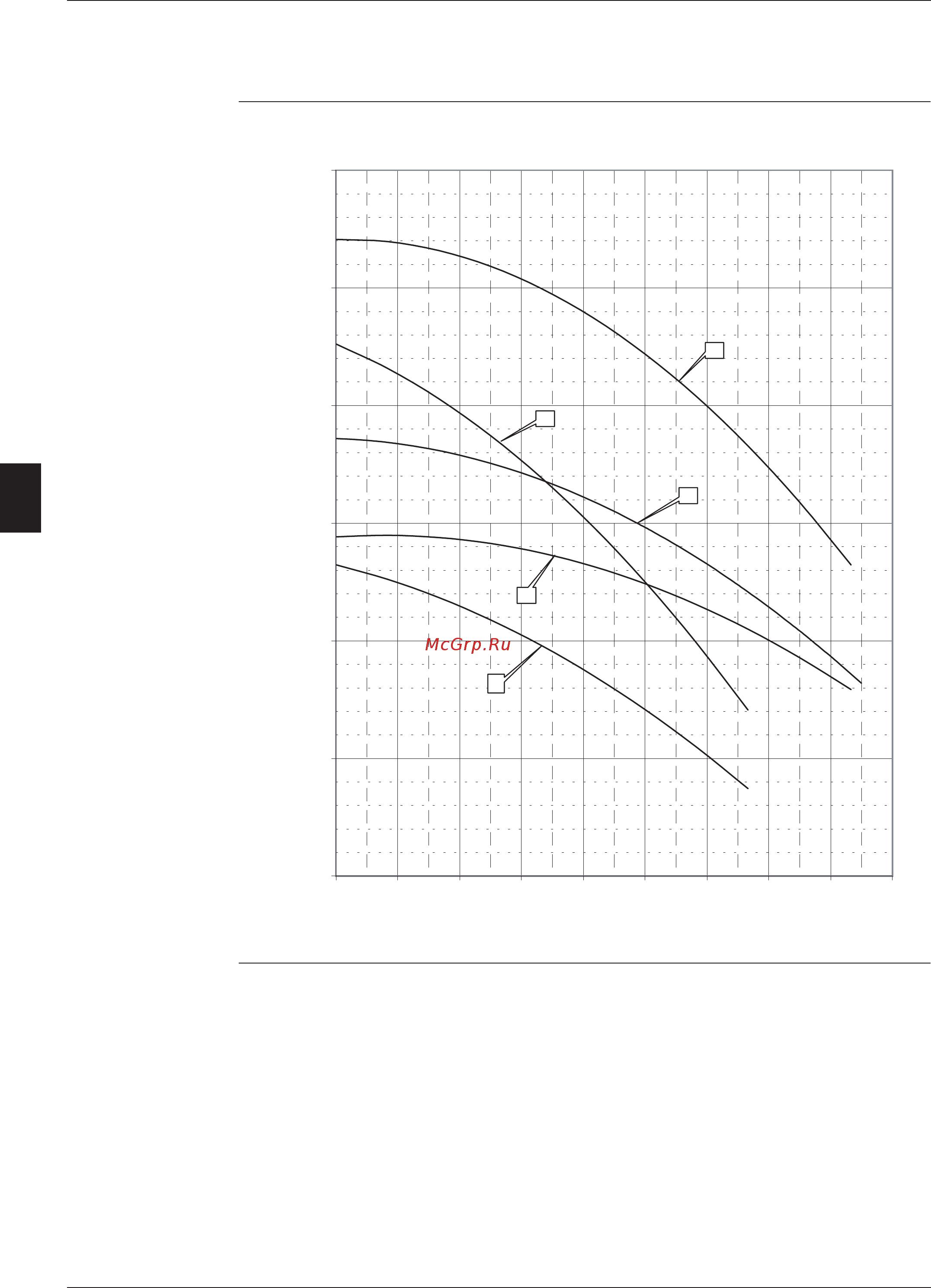

1.9 Static Pressure of the Pump for EUWA*5-24KZW1 and EUWY*5-24KZW1
Static pressure The illustration below shows the static pressure of the pump depending on the water flow and the
pump type.
0,00
100,00
200,00
300,00
400,00
500,00
600,00
0,00 20,00 40,00 60,00 80,00 100,00 120,00 140,00 160,00 180,00
WF [l/min]
SP [kPa]
3
2
1
4
5
