Functional Control ESIE07-04
2–90 Part 2 – Functional Description
3
1
2
4
5
3.10 Ambient Lockout
Introduction The Ambient lockout function will allow you to disable the unit below a specified Ambient temperature.
Function
description
P When the ambient temperature gets below the ambient lockout set point, the unit will be switched
off.
P When the unit is off by ambient lockout, and the temperature rises above 6°C, the unit will restart
and continue operation.

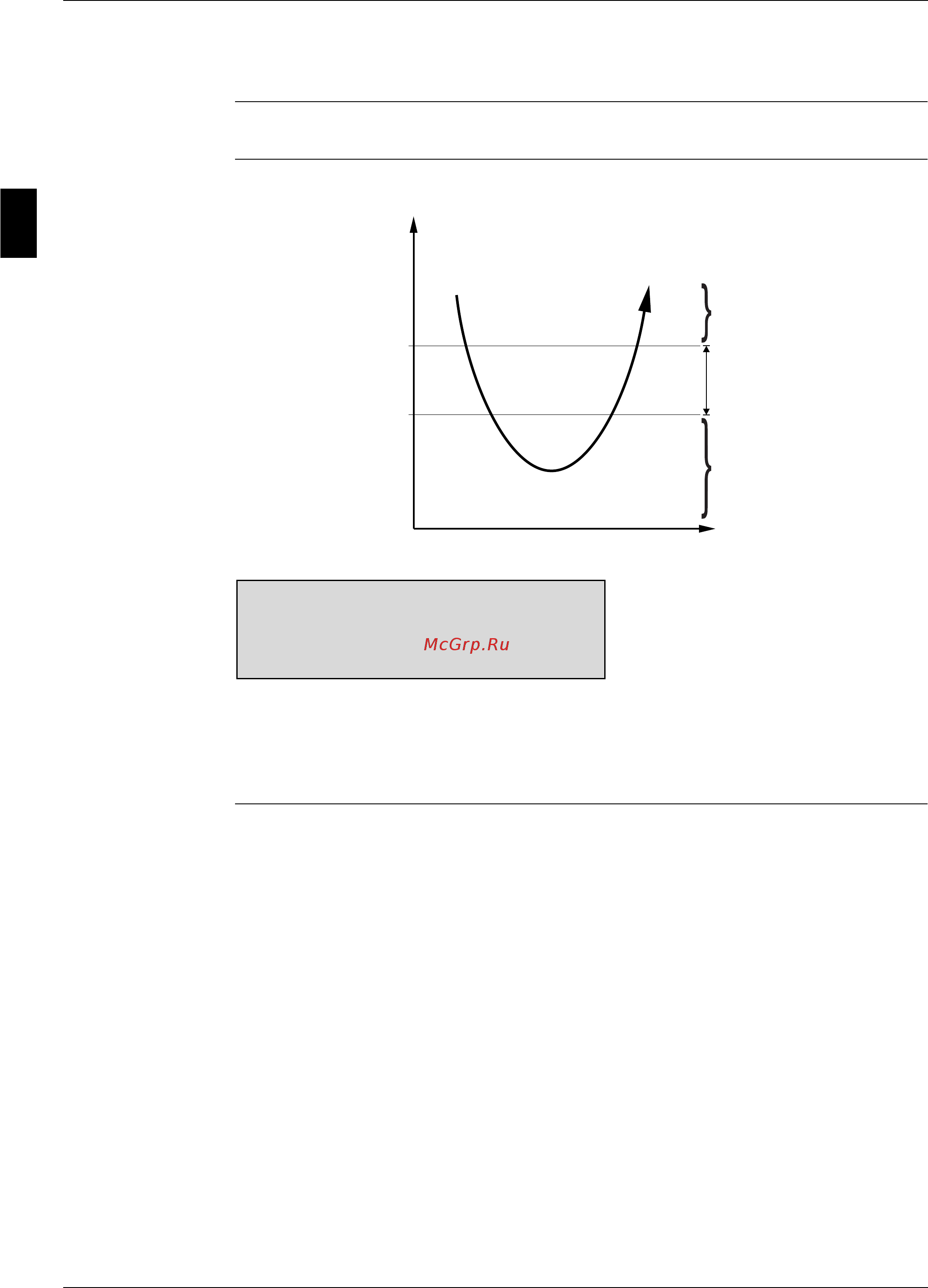

6
5 Setpoint
Ambient
reset ambient lockout
and restart unit
diff.
switch off unit
Setpoint
Diff.
05.0 ˚C
01.0 ˚C
En. Ambient Lockout
