General Outline ESIE07-04
1–48 Part 1 – System Outline
3
1
1
4
5

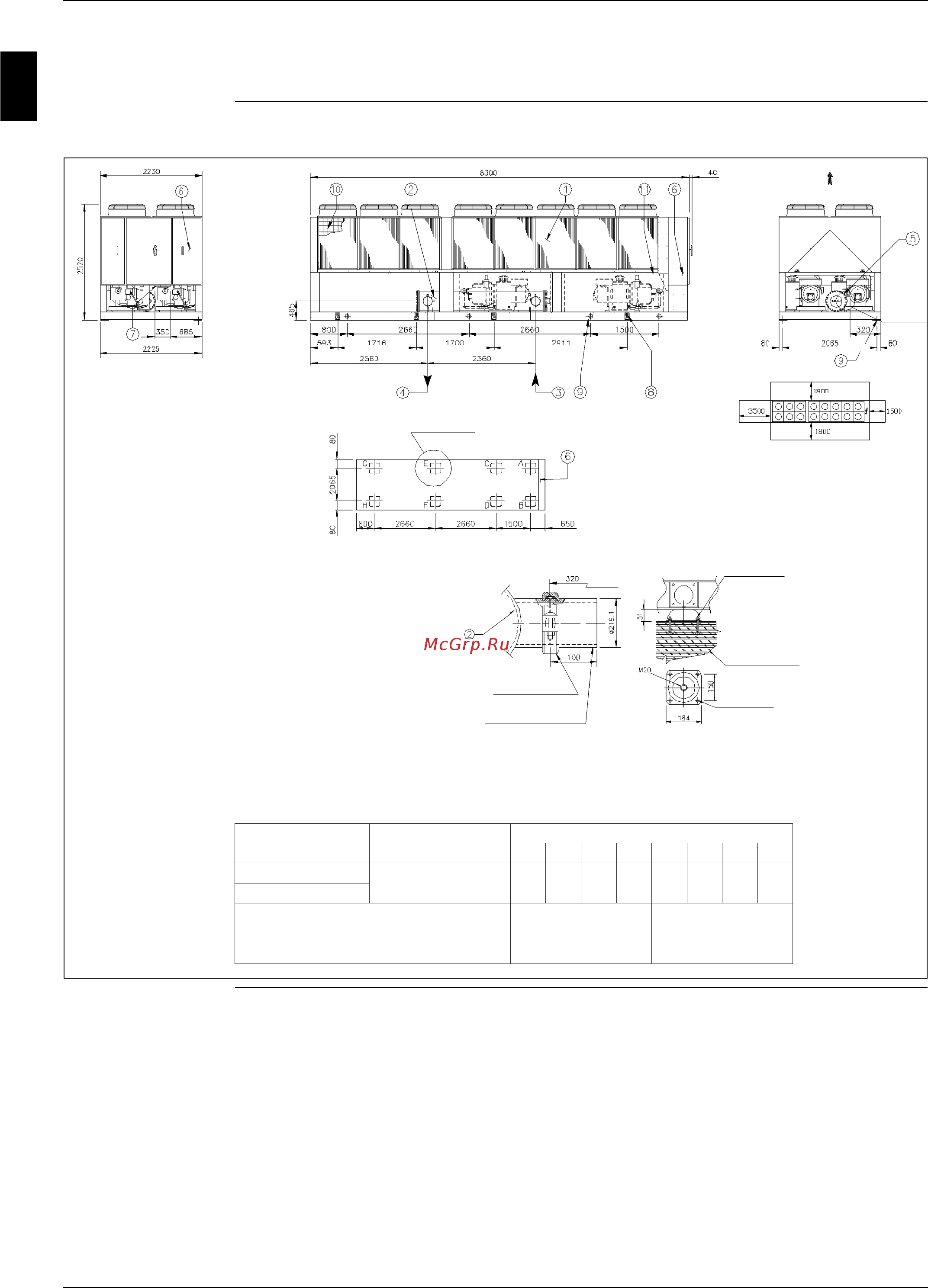

1.28 Outlook Drawing: EWAD800-850BJYNN/Q
The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
(Frame)
(Control box)
Air discharge
Fan arrangements and minimum
clearance requirements
See detail A
Isolators location
Detail "A" rubber isolator
Fixing bolt (not furnished)
Concrete footing
I.D. 13 N. 4 holes
Condenser Type
Weight KG
Type (q/ty)
786010-m
(4 Pz.)
786010-w
(2 Pz.)
Shipping Operating A B C D E F
1195 1195 970 970
GH
695 6951445 14458190 8610
Isolators load KG
Aluminum
Acrylic coated
Rubber isolators
See
detail B
Refer
Detail B
''Victaulic''coupling-furnished
Connecting pipe-furnished
