ESIE97–02 General Outline
Part 1 – System Outline 1–13
1.5 Installation Outline
Introduction The installation outline gives an overview of the main parts in a typical installation. We consider three
main parts:
■ chiller
■ primary water circuit
■ secondary water circuit.
Typical installation
outline

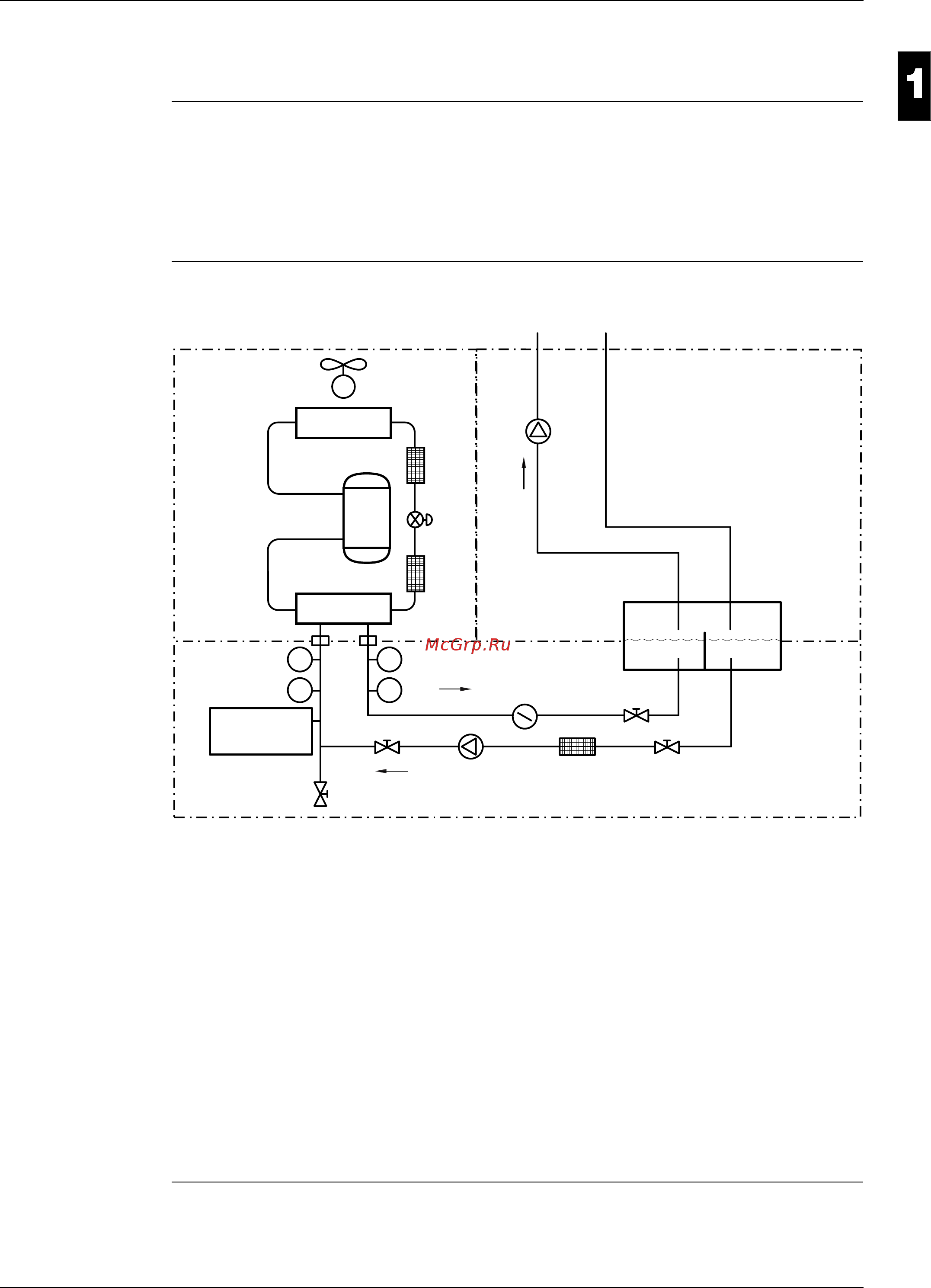

The illustration below shows you a typical installation outline. Some of these installation parts are not
necessarily included in all the chillers described in this manual.
T1
P1
T2
P2
SECONDARY WATER CIRCUITCHILLER
PRIMARY WATER CIRCUIT
3
2
6
6
4
5
1
15
9
10
10
13
14
12
88
7
11
4899
CHILLER PRIMARY WATER CIRCUIT
1 compressor 8 measurement points for temperature and pressure
2 air heat exchanger 9 flow switch
3 expansion valve 10 shut-off valves
4 water heat exchanger 11 buffer tank
5 fan motor 12 water filter
6 refrigerant filter strainer 13 water pump
7 water connections 14 drain valve
15 expansion tank
