The Digital Controller ESIE97–02
2–36 Part 2 – Functional Description

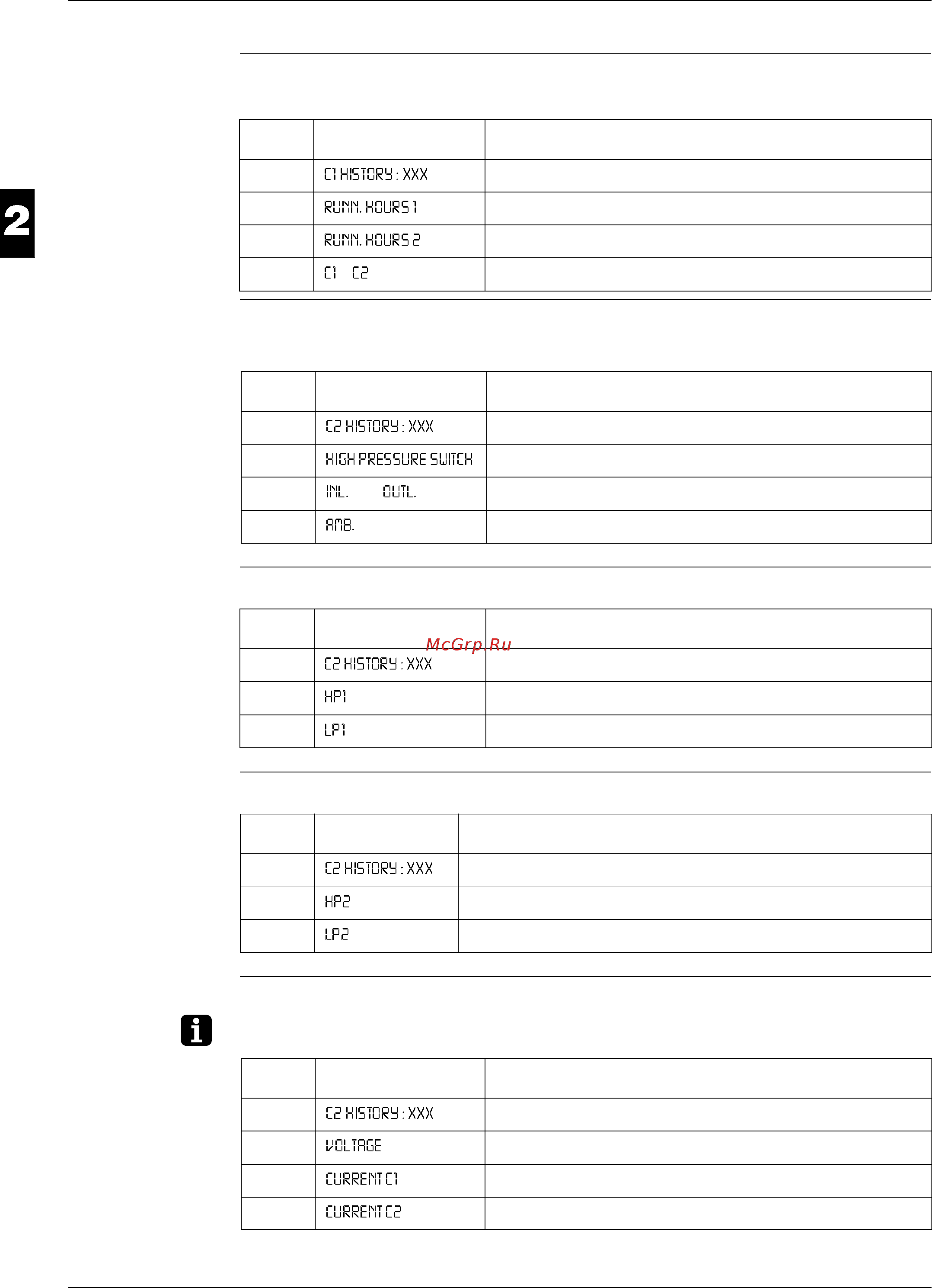

Subscreen 2-4 This screen shows information about the total running hours of the compressors and the capacity
steps:
Screen 3 This screen shows the circuit 2 history:
Subscreen 3-1 This screen shows information about the pressures of circuit 1:
Subscreen 3-2 This screen shows information about the pressures of circuit 2:
Subscreen 3-3 This screen shows information about the voltage and compressor current.
This screen is available if optional voltage and current transmitters are installed.
Line n° Display Description
1
screen title
2
total running hours compressor circuit 1
3
total running hours compressor circuit 2
4
compressor capacity steps
Line n° Display Description
1
x = the total number of circuit 2 shutdowns
2
activated circuit 2 safety
3
inlet/outlet water temperature circuit 2
4
ambient temperature circuit 2
Line n° Display Description
1
screen title
2
high pressure refrigerant circuit 1 (in bar and equivalent in °C)
3
low pressure refrigerant circuit 1 (in bar and equivalent in °C)
Line n° Display Description
1
screen title
2
high pressure refrigerant circuit 2 (in bar and equivalent in °C)
3
low pressure refrigerant circuit 2 (in bar and equivalent in °C)
Line n° Display Description
1
screen title
2
voltage
3
compressor current circuit 1
4
compressor current circuit 2
