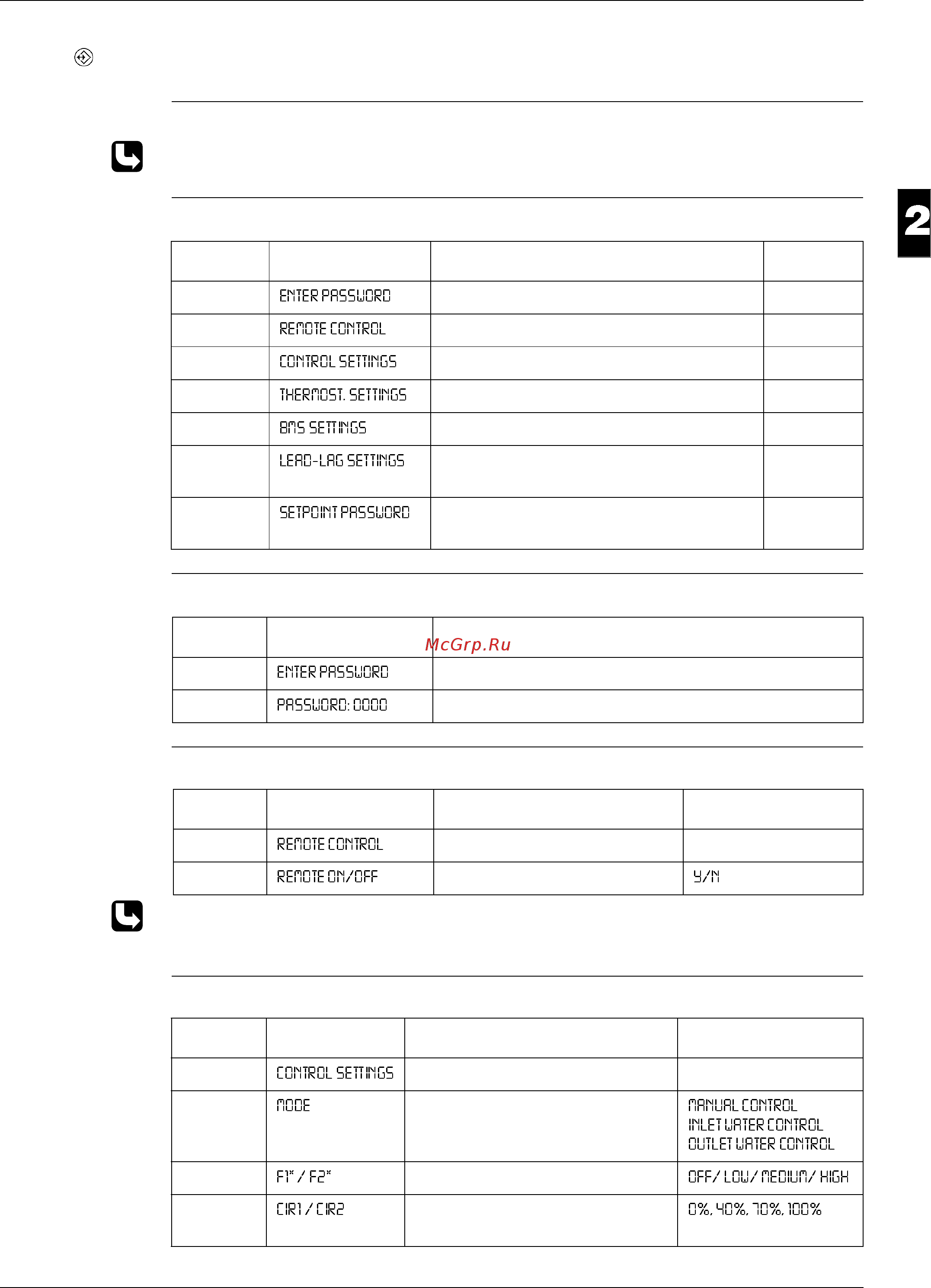

ESIE97–02 The Digital Controller
Part 2 – Functional Description 2–27
2.9 User Settings Menu
Password You need the password to enter this menu. The units leave the factory with password 1914.
To adjust the settings, use the programming procedure on page 2-23.
Menu description This menu allows a full customizing of the units and provides the following 6 screens:
Screen 1 You need to enter the correct password before you can consult the screens in this menu:
Screen 2 This screen provides the ability to activate remote control:
The procedure to start or stop the unit is given in ‘Start/Stop and Temperature Setting’ on page
page 2-19.
Screen 3 This screen provides the ability to modify the control settings:
Screen n° Display Description See page
1
To enter the password. page 2-27
2
To activate remote control page 2-27
3
To adjust and activate manual control mode. page 2-27
4
To adjust the thermostat settings. page 2-28
5
To adjust the BMS settings. page 2-29
6
To define the lead-lag mode of both circuits
(only for EUWA(*)80-120JX)
page 2-29
7
To assign password protection to the
setpoints menu.
page 2-29
Line n° Display Description
1
screen title
2
to enter the correct password
Line n° Display Description Possible settings
1
screen title
2
to activate remote start/stop
Line n° Display Description Possible settings
1
screen title
2
to select the control mode
3 fan speed circuit 1/2 (manual mode)
4 capacity step circuit 1/2 (manual
mode)
