Energy Saving —
We care about energy saving. This logo represents
that this model has "low no load power consumption"!
23

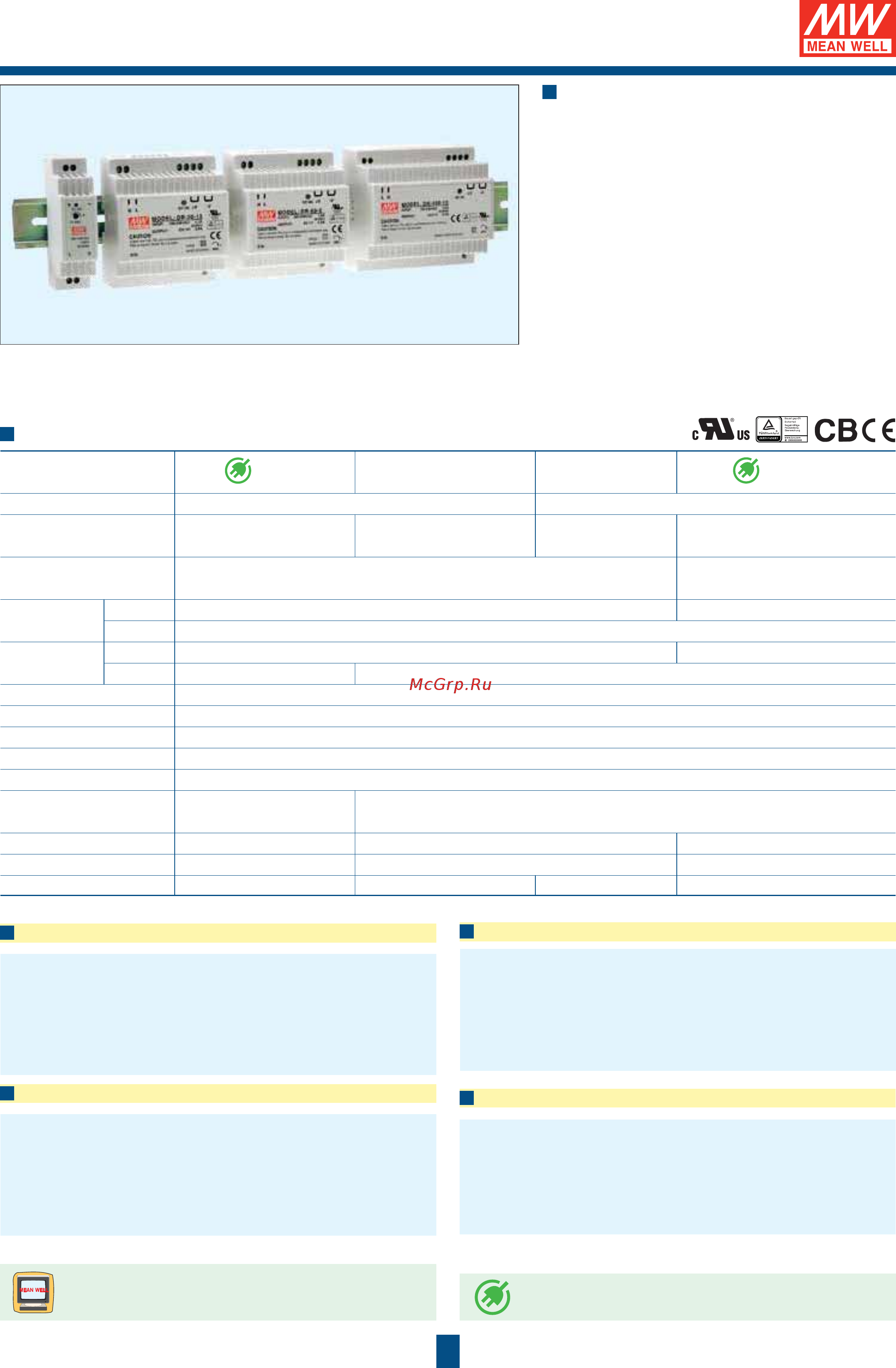

DIN Series
15~100W Step Shape
Features
• Isolation Class II
• Universal AC input / Full range
• No load power consumption<1W (DR-100);
• No load power consumption<0.5W (DR-15)
• Protections: Short circuit / Overload /
Over voltage / Over temp. (DR-100)
• Installed on DIN rail TS-35 / 7.5 or 15
• Cooling by free air convection
• DC output voltage adjustable
• LED indicator for power on
• Suitable for building automation and control of
household appliance
• 3 years warranty
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. DR-15 DR-30 DR-60 DR-100
AC input voltage range 85~264VAC; 120~370VDC 88~264VAC; 124~370VDC
AC inrush current (max.)
Cold start,
65A at 230VAC
Cold start,
30A at 230VAC
Cold start,
36A at 230VAC
Cold start,
45A at 230VAC
DC adjustment range ±10% rated output voltage
12V: 12~15V, 15V: 15~18V,
24V: 24~29V
Overload
protection
Range 105%~160% 105%~135%
Type constant current limiting, auto-recovery
Over voltage
protection
Range 115%~135% rated output voltage 125%~155% rated output voltage
Type Shut off, clamp by zener diode Shut down, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC
Working temperature -20~+60°C (refer to output load derating curve)
Vibration 10~500Hz, 2G 10 min./1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL60950-1, TUV60950-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection
I/P and O/P:
2 poles screw DIN terminal
I/P: 2 poles,
O/P: 4 poles screw DIN terminal
Dimension (WxHxD)(mm) 25x93x56 78x93x56 100x93x56
Case No. 985A 918B 970A
Packing 140pcs / 15.0kg 48pcs / 14.0kg 48pcs / 15.4kg 36pcs / 13.6kg
60W DR-60
DR-30
DR-60
DR-100
Model No. Output Tol. R&N Effi.
DR-60-5 5V, 0~6.5A ±2% 80mV 76%
DR-60-12 12V, 0~4.5A ±1% 120mV 82%
DR-60-15 15V, 0~4.0A ±1% 120mV 83%
DR-60-24 24V, 0~2.5A ±1% 150mV 84%
15W DR-15
30W DR-30
Model No. Output Tol. R&N Effi.
DR-15-5 5V, 0~2.40A ±2% 80mV 77.0%
DR-15-12 12V, 0~1.25A ±1% 120mV 84.0%
DR-15-15 15V, 0~1.00A ±1% 120mV 83.5%
DR-15-24 24V, 0~0.63A ±1% 150mV 85.0%
Model No. Output Tol. R&N Effi.
DR-30-5 5V, 0~3.0A ±2% 80mV 74%
DR-30-12 12V, 0~2.0A ±1% 120mV 81%
DR-30-15 15V, 0~2.0A ±1% 120mV 82%
DR-30-24 24V, 0~1.5A ±1% 150mV 83%
100W DR-100
Model No. Output Tol. R&N Effi.
DR-100-12 12V, 0~7.5A ±2% 120mV 87%
DR-100-15 15V, 0~6.5A ±1% 120mV 87%
DR-100-24 24V, 0~4.2A ±1% 150mV 89%
DR-15
