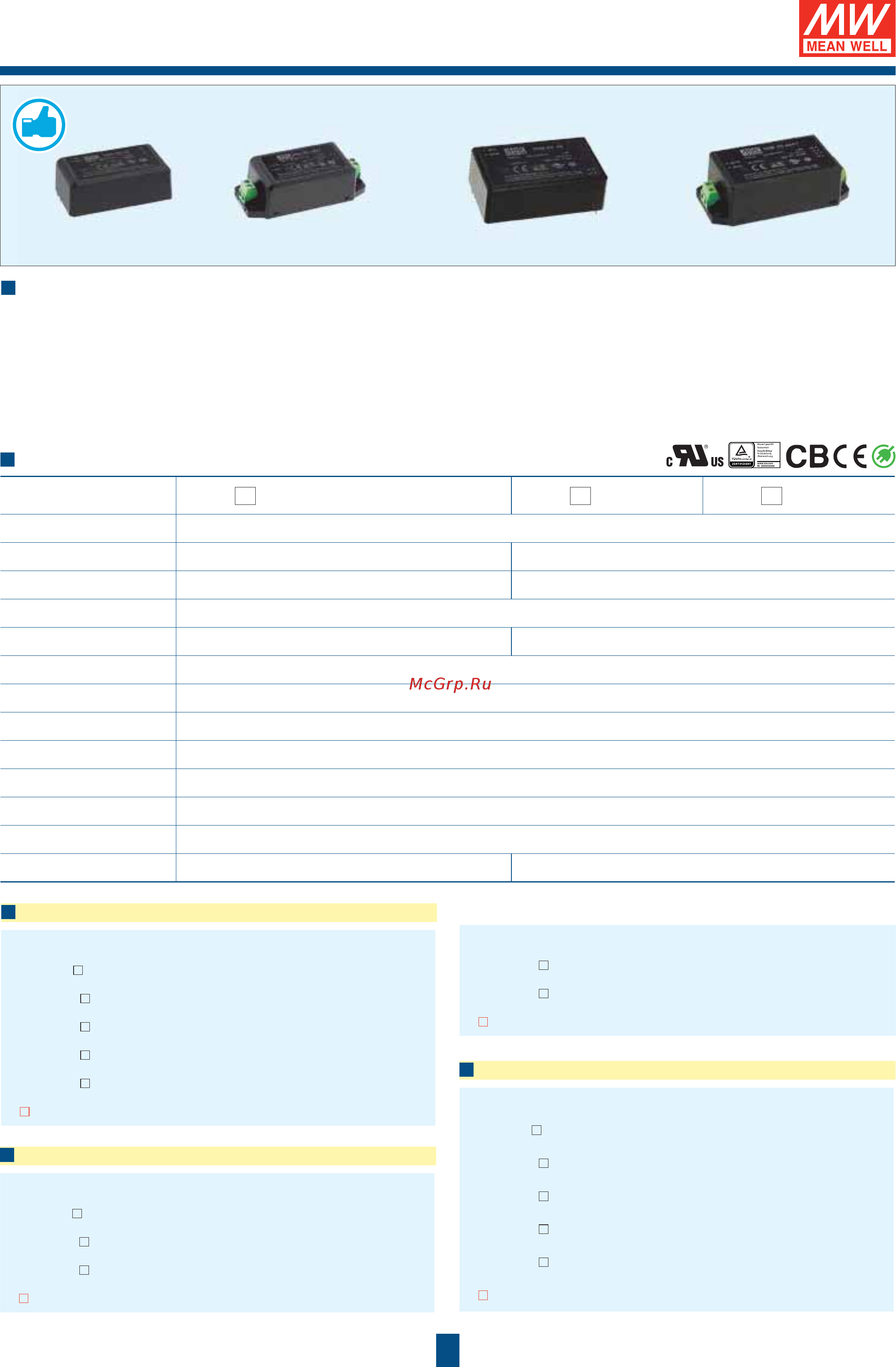

Features
IRM-30-xST IRM-45/60-xSTIRM-30 IRM-45/60
50
Green Open Frame
30~60W AC/DC Miniature Encapsulated Type
• Universal AC input / Full range
• No load power consumption < 0.1W
• Miniature size, high power density
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Isolation Class II
• Fully isolated plastic case
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. IRM-30-x ST IRM-45-x ST IRM-60-x ST
AC input voltage range 85~264VAC
AC inrush current (max.) Cold start, 25A at 115VAC, 45A at 230VAC Cold start, 30A at 115VAC, 60A at 230VAC
Overload protection 105%~160% 115%~160%
Over voltage protection 105%~135%
Setup, rise, hold up time 1000ms, 30ms, 40ms at 230VAC 1000ms, 30ms, 50ms at 230VAC
Leakage current Less than 0.25mA at 240VAC
Withstand voltage I/P-O/P: 3kVAC
Working temperature
-30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 4 industrial pins
Dimension (LxWxH)(mm) PCB mounting: 69.5x 39x 24; Screw I/O: 91x 39.5x 28.5 PCB mounting: 87x 52x 29.5; Screw I/O: 109x 52x 33.5
30W IRM-30
45W IRM-45
60W IRM-60
Model No. Output Tol. R&N Effi.
IRM-30-5
5V, 0~6A ±2.5% 120mV 83%
IRM-30-12
12V, 0~2.5A ±2.5% 150mV 88%
IRM-30-15
15V, 0~2A ±2.5% 200mV 88%
IRM-30-24
24V, 0~1.3A ±2.5% 240mV 88.5%
IRM-30-48
48V, 0~0.63A ±2.5% 300mV 90%
= Blank, ST ; Blank: PCB mounting style, ST: Screw terminal style
Model No. Output Tol. R&N Effi.
IRM-45-5
5V, 0~8A ±2.5% 80mV 83.5%
IRM-45-12
12V, 0~3.8A ±2.5% 150mV 87.5%
IRM-45-15
15V, 0~3A ±2.5% 180mV 88.5%
= Blank, ST ; Blank: PCB mounting style, ST: Screw terminal style
Model No. Output Tol. R&N Effi.
IRM-45-24
24V, 0~1.9A ±2.5% 200mV 89.5%
IRM-45-48
48V, 0~0.94A ±2.5% 300mV 90.5%
= Blank, ST ; Blank: PCB mounting style, ST: Screw terminal style
Model No. Output Tol. R&N Effi.
IRM-60-5
5V, 0~10A ±2.5% 80mV 84%
IRM-60-12
12V, 0~5A ±2.5% 120mV 87.5%
IRM-60-15
15V, 0~4A ±2.5% 120mV 89%
IRM-60-24
24V, 0~2.5A ±2.5% 150mV 90%
IRM-60-48
48V, 0~1.25A ±2.5% 240mV 91%
= Blank, ST ; Blank: PCB mounting style, ST: Screw terminal style
• Comply with EN55032 class B without any additional components
• High operating temperature up to +70
o
C
• Withstand 5G vibration test
• Low cost, high reliability
• Pass LPS (except for IRM-45/60 5V)
• 3 years warranty
