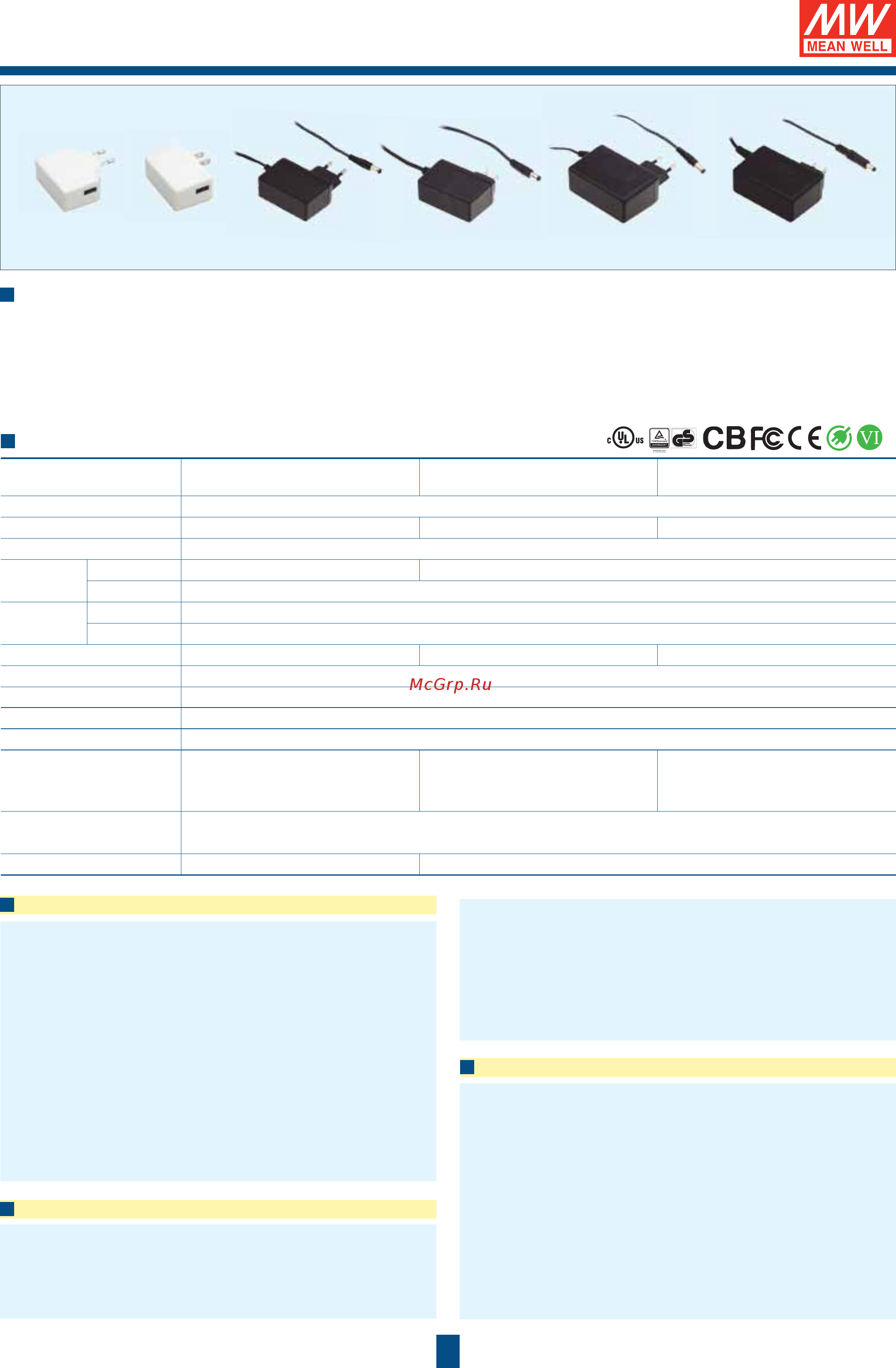

Industrial Adaptor
12~25W Slim Wall-mounted
• Universal AC input / Full range
• No load power consumption <0.075W
• Energy efficiency level VI
• Comply with EISA 2007/DoE, EU ErP
• 2 pole US/European type plug
• Class II power (without earth pin)
General Specification (Please refer to www.meanwell.com for detail spec.)
Wall-mounted Ň12W
Wall-mounted Ň25W
Wall-mounted Ň18W
Model No.
SGA12
ƒ SGA18ƒ SGA25ƒ
AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC Cold start, 45A at 230VAC Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload
protection
Range 110%~250% rated output power 120%~180% rated output power
Type Hiccup mode, auto recovery
Over voltage
protection
Range 110%~140% rated output voltage
Type Clamp by Zener diode
Setup, rise, hold up time 1300ms, 50ms, 12ms 300ms, 30ms, 16ms 300ms, 60ms, 18ms
Withstand voltage I/P-O/P: 4242VDC
Working temperature -20~+60°C (refer to output derating curve)
Safety standards U-Type: UL60950-1, CSA22.2 approved; E-Type: TUV EN60950-1 approved
EMC standards U-Type: FCC part15 class B; E-Type: EN55032 class B
Length of output cable
100cm of 18AWG for SGA12 05~07-P1J
120cm of 22AWG for SGA12 09-P1J
180cm of 24AWG for SGA12 12~48-P1J
100cm of 16AWG for 5~9V
100cm of 18AWG for 12V
150cm of 22AWG for 15~48V
100cm of 16AWG for 5~12V
180cm of 18AWG for 15~18V
180cm of 20AWG for 24~48V
Standard DC Plug
(refer to page 62 for DC plug list)
USB: Type A; P1J: 2.1øx5.5øx11mm / C+, tuning fork type
Dimension (LxWxH)(mm) 62.2x 27.4x 39.7 75.5x 32x 47.5
Model No. Output Tol. R&N Effi.
SGA12
Ƒ05-USB
5V, 2.40A ±5% 50mV 80.0%
SGA12
Ƒ05-P1J
5V, 2.40A ±5% 50mV 80.0%
SGA12
Ƒ07-P1J
7.5V, 1.60A ±5% 50mV 83.0%
SGA12
Ƒ09-P1J
9V, 1.33A ±3% 80mV 83.0%
SGA12
Ƒ12-P1J
12V, 1.00A ±3% 80mV 83.0%
SGA12
Ƒ15-P1J
15V, 0.80A ±3% 80mV 84.5%
SGA12
Ƒ18-P1J
18V, 0.666A ±3% 80mV 85.0%
SGA12
Ƒ24-P1J
24V, 0.50A ±2% 100mV 85.0%
SGA12
Ƒ48-P1J
48V, 0.25A ±2% 100mV 86.0%
Ƒ= U/E; U: American 2P, E: European 2P
Model No. Output Tol. R&N Effi.
SGA25
Ƒ05-P1J
5V, 4.00A ±5% 80mV 82.0%
SGA25
Ƒ07-P1J
7.5V, 2.93A ±5% 80mV 85.5%
SGA25
Ƒ09-P1J
9V, 2.77A ±5% 80mV 86.0%
SGA25
Ƒ12-P1J
12V, 2.08A ±3% 80mV 86.0%
SGA25
Ƒ15-P1J
15V, 1.66A ±3% 80mV 86.5%
SGA25
Ƒ18-P1J
18V, 1.38A ±3% 80mV 86.5%
SGA25
Ƒ24-P1J
24V, 1.04A ±2% 80mV 87.0%
SGA25
Ƒ48-P1J
48V, 0.52A ±2% 120mV 88.5%
Ƒ= U/E; U: American 2P, E: European 2P
Model No. Output Tol. R&N Effi.
SGA18
Ƒ05-P1J
5V, 3.00A ±5% 80mV 80.5%
SGA18
Ƒ09-P1J
9V, 2.00A ±5% 80mV 84.5%
SGA18
Ƒ12-P1J
12V, 1.50A ±3% 80mV 84.0%
Model No. Output Tol. R&N Effi.
SGA18
Ƒ15-P1J
15V, 1.20A ±3% 80mV 84.0%
SGA18
Ƒ18-P1J
18V, 1.00A ±3% 80mV 84.5%
SGA18
Ƒ24-P1J
24V, 0.75A ±2% 80mV 85.0%
SGA18
Ƒ48-P1J
48V, 0.375A ±2% 120mV 86.0%
Ƒ= U/E; U: American 2P, E: European 2P
• Protections: Short citcuit / Over load / Over voltage
• Pass LPS
• Fully enclosed plastic case
• Approvals:
U type: UL / CUL / CB / FCC; E type: TUV / CB / CE
• 3 years warranty
Ƒ
Ƒ
Ƒ
