![MEAN WELL RPT-75D [74/112] Charger](/views2/1669843/page74/bg4a.png)

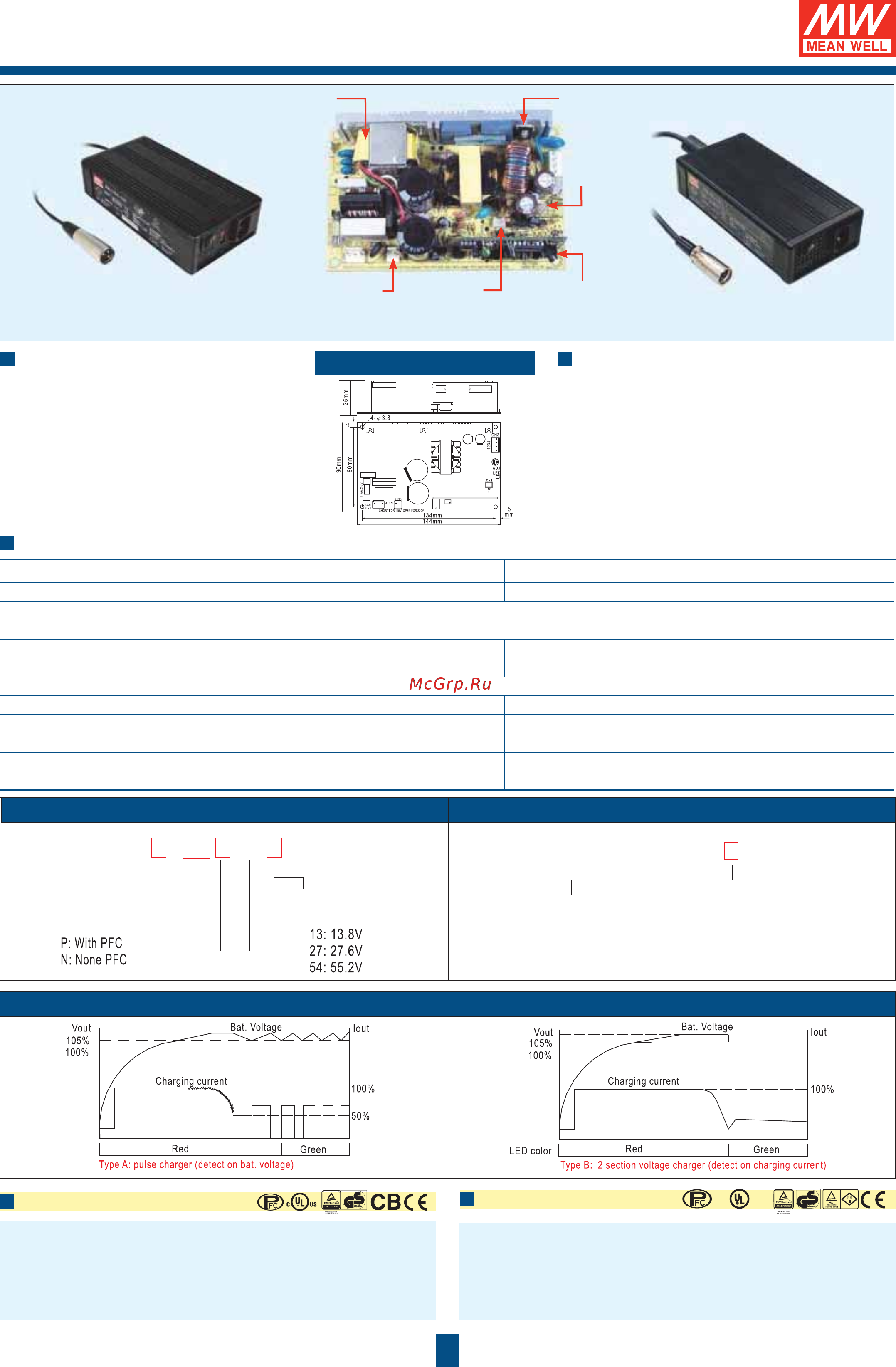

71
120~230W Portable Battery Charger
Charger
Features for PA/PB-120 Features for PB-230
• Stationary charger for lead-acid batteries
• AC input range selectable by switch
• Charging type selectable (optional)
• Passive PFC option
• Protections:
Short circuit / Overload / Over voltage / Over temp.
• Built-in ON/OFF power switch
• 3 poles AC inlet with fuse holder
• 2 color LED loading indicator
• Open frame models available (without safety approvals)
• 2 years warranty
• Stationary charger for lead-acid batteries and Li-ion batteries
• Universal AC input/Full range
• 3 stage charging
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage / Over temp.
• Built-in remote ON/OFF control
• Fan ON/OFF control
• 2 color LED loading indicator
• 2 years warranty
Model No. Output Tol. R&N Effi.
P
Ƒ-120Ƒ-13Ƒ
13.8V, 0~7.2A ±3~±8.5% 150mV 73%
P
Ƒ-120Ƒ-27Ƒ
27.6V, 0~4.3A ±1~±8.0% 200mV 79%
P
Ƒ-120Ƒ-54Ƒ
55.2V, 0~2.2A ±1~±7.5% 250mV 79%
Power Factor
Correction Choke
115 / 230 Selectable
Output Diode
of Charger
2 Color LED
Indicator
Fan Connector Fast Charging Circuit
(A/B Selectable)
Order Information for PA/PB-120 Order Information for PB-230
Model No. Output Effi.
PB-230-12
Ƒ
14.4V, 0~16A 81.5%
PB-230-24
Ƒ
28.8V, 0~8A 85.5%
PB-230-48
Ƒ
57.6V, 0~4A 86.0%
Ƒ=
Blank, AD1; Blank= XLR 4P, male type, AD1= Anderson connector
PA/PB-120
PA/PB-120 (PCB type)
PA/PB-120 (PCB type) PB-230
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. PA/B-120 PB-230
AC input voltage range 88~132VAC/ 176~264VAC selectable by switch 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 50A at 230VAC
Overload protection 90%~110% constant current limiting ,auto-recovery
Over voltage protection 108%~127% hiccup mode, auto-recovery 102%~125% shut down o/p voltage, auto-recovery
Setup, rise, hold up time 1000ms, 50ms, 16ms at full load and 230VAC NA
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -10~+45°C (refer to output derating curve) -20~+50°C (refer to output derating curve)
Safety standards
UL60950-1, TUV EN60950-1, EN60335-1,
EN60335-2-29(except for 55.2V) approved
UL1012(PB-230xx-AD1 only),
TUV EN60950-1, PSE J60950-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
Dimension (LxWxH)(mm) Case Type: 180x 96x 49; PCB Type: 144x 90x 35 190x 96x 49
PA/B-120 Series
PB-230 Series
(PB-230-xxAD1)
Charging Curve for PA/PB-120
PB-230-xx
PA -120P-xx
Blank: XLR 4P (standard)
AD1: Anderson connector (optional)
P: Open PCB
C: With case
A: Voltage detector
B: Current detector
TUV
Rhei nland
Prod uct Safe ty
P S
E
