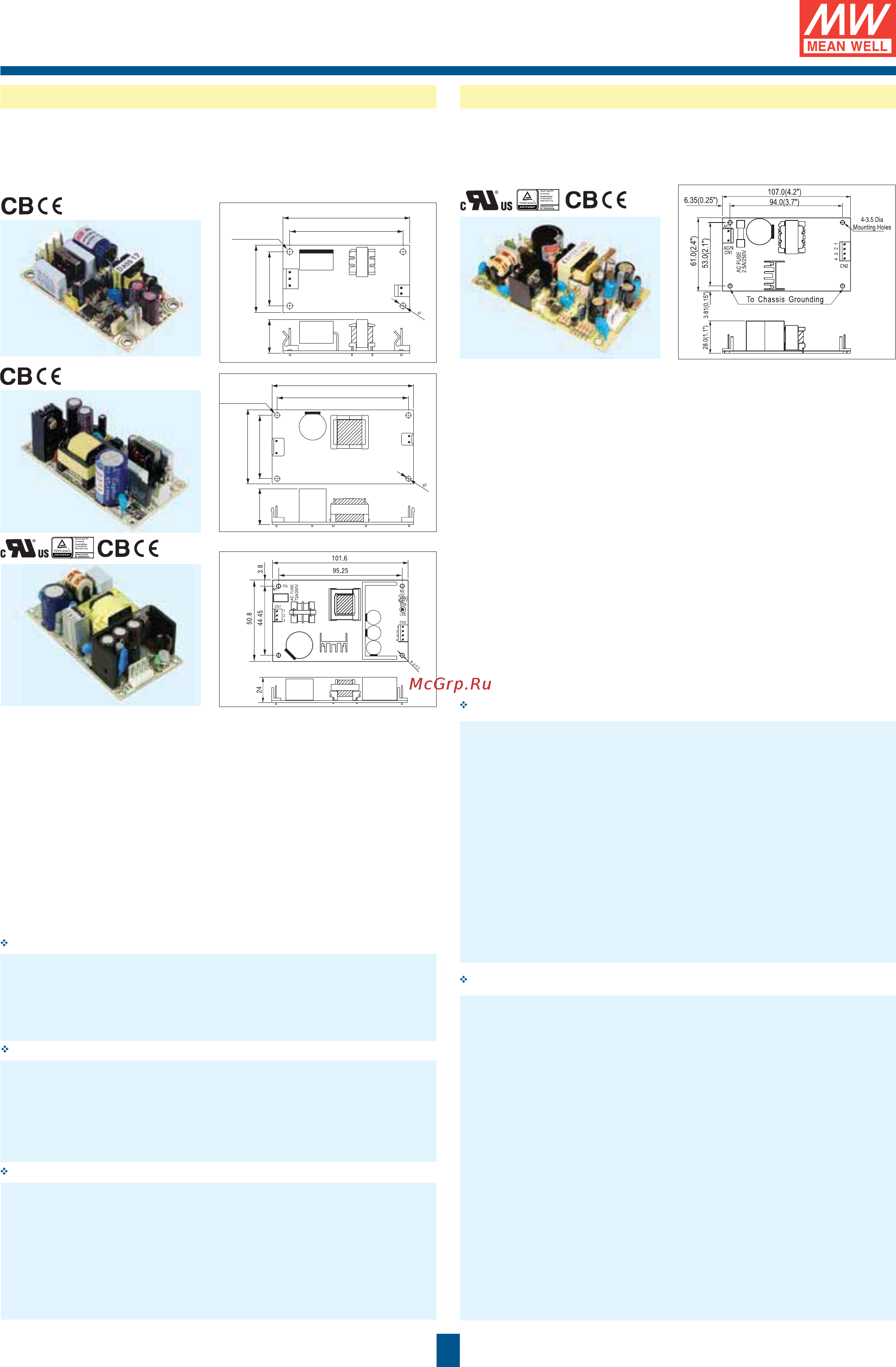

Open Frame
5~35W Single and Dual Output
5W & 15W & 35W Single Output
PS-05
75x 40x 20 mm
Model No. Output Tol. R&N Effi.
PS-05-5 5V, 0~1.0A ±2% 100mV 70%
PS-05-12 12V, 0~0.45A ±2% 120mV 75%
PS-05-15 15V, 0~0.35A ±2% 120mV 75%
PS-05-24 24V, 0~0.22A ±2% 200mV 76%
PS-05-48 48V, 0~0.11A ±1% 200mV 76%
25W 1~2 Output
107x 61x 28 mm
PS-15
94x 49x 25 mm
Model No. Output Tol. R&N Effi.
PS-15-5 5V, 0~2.80A ±2% 100mV 74%
PS-15-12 12V, 0~1.25A ±2% 120mV 77%
PS-15-15 15V, 0~1.00A ±2% 120mV 78%
PS-15-24 24V, 0~0.625A ±2% 150mV 79%
PS-15-48 48V, 0~0.313A ±2% 200mV 77%
Model No. Output Tol. R&N Effi.
PS-25-3.3 3.3V, 0~5.0A ±3% 80mV 66%
PS-25-5 5V, 0~5.0A ±2% 80mV 74%
PS-25-7.5 7.5V, 0~3.3A ±2% 80mV 76%
PS-25-12 12V, 0~2.1A ±2% 100mV 78%
PS-25-13.5 13.5V, 0~1.9A ±2% 100mV 78%
PS-25-15 15V, 0~1.7A ±2% 100mV 78%
PS-25-24 24V, 0~1.0A ±2% 240mV 79%
PS-25-27 27V, 0~0.9A ±2% 240mV 79%
PS-25-48 48V, 0~0.5A ±2% 350mV 79%
Single Output
Dual Output
5W
10W
35W
Model No. Output Tol. R&N Effi. Max.
PD-25A 5V, 0.2~2.5A ±2% 50mV 71% 25W
12V, 0.1~1.5A ±6% 150mV
PD-25B 5V, 0.2~2.0A ±2% 50mV 77% 25W
24V, 0.1~1.0A ±6% 200mV
PD-2505 5V, 0.1~3.0A ±6% 50mV 73% 25W
-5V, 0.1~2.5A ±6% 50mV
PD-2512 12V, 0.1~1.2A ±4% 50mV 74% 24W
-12V, 0.1~1.2A ±4% 50mV
PD-2515 15V, 0.1~1.0A ±4% 50mV 75% 24W
-15V, 0.1~1.0A ±4% 50mV
PD-2503 3.3V, 0.2~5.0A ±2% 50mV 72% 25W
5V, 0.1~4.0A +5%,-8% 50mV
PS-35
101.6x 50.8x 24 mm
Model No. Output Tol. R&N Effi.
PS-35-3.3 3.3V, 0~6.0A ±2% 80mV 70%
PS-35-5 5V, 0~6.0A ±2% 100mV 78%
PS-35-7.5 7.5V, 0~4.7A ±2% 100mV 80%
PS-35-12 12V, 0~3.0A ±1% 120mV 81%
PS-35-13.5 13.5V, 0~2.6A ±1% 120mV 81%
PS-35-15 15V, 0~2.4A ±1% 150mV 81%
PS-35-24 24V, 0~1.5A ±1% 200mV 85%
PS-35-48 48V, 0~0.75A ±1% 240mV 84%
44
• Universal AC input / Full range
• Protections:
Short circuit / Overload / Over voltage
/ Over temperature(PS-05/15)
• Cooling by free air convection
AC input voltage range .......
AC inrush current ...............
Overload protection ............
Over voltage protection ......
Over temp. protection .........
Withstand voltage ..............
Working temperature ..........
Safety standards .................
EMC standards ..................
Connection ...............
85~264VAC; 120~370VDC(PS-05/15)
90~264VAC; 127~370VDC(PS-35)
Cold start, 30A at 230VAC(PS-05),
40A at 230VAC(PS-15), 45A at 230VAC(PS-35)
105%~160% hiccup mode, auto-recovery
115%~150% rated output voltage
Hiccup mode, auto-recovery(PS-05/15)
I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute
-10~+60°C (PS-05/15); -20~+65°C (PS-35)
IEC60950-1 CB approved(PS-05/15)
UL60950-1, TUV EN60950-1 approved(PS-35)
EN55032 class B, EN61000-3-2,3,
EN61000-4-2,3,4,5,6,8,11
AC input voltage range .....
AC inrush current .............
Overload protection ..........
Over voltage protection .....
Over temp. protection .......
Leakage current ...............
Withstand voltage .............
Working temperature ........
Safety standards ..............
EMC standards ................
Connection ......................
Packing ...........................
85~264VAC; 120~370VDC
Cold start, 36A at 230VAC
>105% hiccup mode, auto-recovery
115%~135% rated output voltage
Shut down o/p voltage, re-power on to recover
Less than 0.5mA at 240VAC
I/P-O/P: 3kVAC, I/P-FG:2kVAC, 1minute
-10~+60°C (refer to output derating curve)
UL60950-1, TUV EN60950-1 approved
EN55032 class B, EN61000-3-2,3,
EN61000-4-2,3,4,5
3P, 4P/ 3.96mm pitch, Molex P/N: 41791-03, 04
0.14kg ; 96pcs / 15.0kg / 1.30CUFT(PS-25)
0.15kg ; 96pcs / 15.9kg / 1.30CUFT(PD-25)
0.13kg ; 96pcs / 15.4kg / 1.30CUFT(PD-2503)
• Low leakage current <0.5mA(PS-05/15)
• 100% full load burn-in test
• Low cost, high reliability
• 2 years warranty
• Universal AC input / Full range
• Protections: Short circuit / Overload /
Over voltage / Over temp.
• Cooling by free air convection
• Low leakage current <0.5mA
• 100% full load burn-in test
• Low cost, high reliability
• 2 years warranty
PS-05: 3P/ 5mm, 2P/ 3.96mm pitch, Molex 5285-03,5273-02
PS-15: 3+2P/3.96mm pitch, JST B3P/B2P-VH
PS-35: 3+4P/3.96mm pitch, JST B3P/B4P-VH-B
