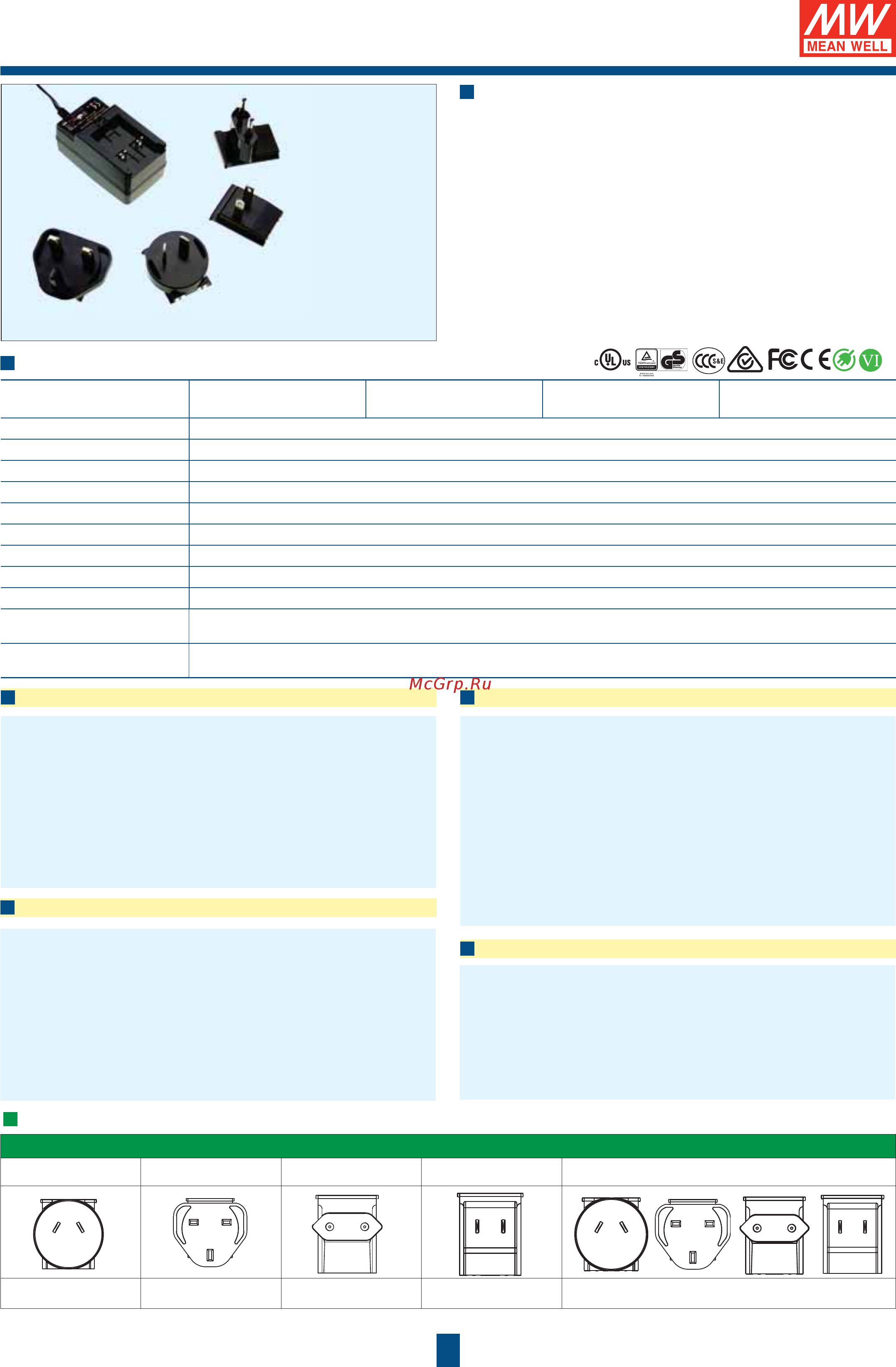

Industrial Adaptor
12~30W Interchangeable Type
Features
• Interchangeable AC plugs (plug kit sold separately)
• Universal AC input / Full range
• No load power consumption <0.075W
• Energy efficiency Level VI
• Comply with EISA 2007/DoE and EU ErP
• Class II power (without earth pin)
• Protections: Short circuit / Over voltage / Overload
• Fully enclosed plastic case
• LED indicator for power on
• Pass LPS
• Approvals: UL / CUL / TUV / CCC / RCM / FCC / CE
• 2 years warranty
General Specification (Please refer to www.meanwell.com for detail spec.)
Interchangeable AC Plug Specifically for GE12/18/24/30
Model No. GE12 GE18 GE24 GE30
AC input voltage range 90~264VAC / 0.4A for GE12; 90~264VAC / 0.7A for GE18/24/30
AC inrush current (max.) Cold start, 40A at 100VAC; 80A at 230VAC
Overload protection Hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 4000ms, 100ms, 30ms at 230VAC input
Withstand voltage I/P-O/P:4242VDC, 1 minute
Working temperature -10~+50°C (refer to output derating curve)
Safety standards UL60950-1, CSA22.2, TUV EN60950-1, CCC GB4943, AS/NZS 60950.1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B, GB9254
Length of output cable
100cm of 16AWG for GE12 5~12V and GE18/24 5~12V
150cm of 18AWG for GE12/18 15~48V and GE24 15~48V
Standard DC plug
(refer to page 62 for DC plug list)
P1J: 2.1øx5.5øx11mm / C+, tuning fork type
Wall-mounted (Interchangeable Type)—12W
Wall-mounted (Interchangeable Type)—18W
Wall-mounted (Interchangeable Type)—30W
Wall-mounted (Interchangeable Type)—24W
GE12 70.7x 40x 38.8 mm
GE18/24/30 81x 43x 40.5 mm
Order No.
(Main body)
Output Tol. R&N Effi.
GE12I05-P1J
5V, 0~2.00A ±5% 50mV 80.0%
GE12I07-P1J
7.5V, 0~1.33A ±5% 75mV 82.0%
GE12I09-P1J
9V, 0~1.33A ±5% 100mV 84.0%
GE12I12-P1J
12V, 0~1.00A ±3% 120mV 84.0%
GE12I15-P1J
15V, 0~0.80A ±3% 150mV 85.0%
GE12I18-P1J
18V, 0~0.83A ±3% 180mV 85.0%
GE12I24-P1J
24V, 0~0.625A ±3% 240mV 85.5%
Order No.
(Main body)
Output Tol. R&N Effi.
GE24I05-P1J
5V, 0~3.00A ±5% 50mV 81.0%
GE24I07-P1J
7.5V, 0~2.00A ±5% 75mV 83.0%
GE24I09-P1J
9V, 0~2.22A ±5% 100mV 85.5%
GE24I12-P1J
12V, 0~2.00A ±3% 120mV 86.0%
GE24I15-P1J
15V, 0~1.60A ±3% 150mV 86.0%
GE24I18-P1J
18V, 0~1.33A ±3% 180mV 87.0%
GE24I24-P1J
24V, 0~1.00A ±3% 240mV 87.5%
GE24I48-P1J
48V, 0~0.50A ±3% 300mV 89.0%
Order No.
(Main body)
Output Tol. R&N Effi.
GE18I05-P1J
5V, 0~2.40A ±5% 50mV 80.5%
GE18I07-P1J
7.5V, 0~1.73A ±5% 75mV 82.5%
GE18I09-P1J
9V, 0~2.00A ±5% 100mV 85.0%
GE18I12-P1J
12V, 0~1.50A ±3% 120mV 86.0%
GE18I15-P1J
15V, 0~1.20A ±3% 150mV 86.5%
GE18I18-P1J
18V, 0~1.00A ±3% 180mV 87.0%
GE18I24-P1J
24V, 0~0.75A ±3% 240mV 87.0%
GE18I48-P1J
48V, 0~0.375A ±3% 300mV 87.0%
Order No.
(Main body)
Output Tol. R&N Effi.
GE30I12-P1J
12V, 0~2.50A ±3% 120mV 84%
GE30I15-P1J
15V, 0~2.00A ±3% 150mV 86%
GE30I18-P1J
18V, 0~1.66A ±3% 180mV 87%
GE30I24-P1J
24V, 0~1.25A ±3% 240mV 87%
AC Plug Type and Order No.
$&3OXJ$8 $&3OXJ8.
AC Plug-EU
$&3OXJ86 $&3OXJ0,;
$XVWUDOLDQ7\SH 8.7\SH (XURSHDQ7\SH 867\SH 0L[HG)RXU7\SH
Note: The main body unit and AC plug should be ordered seperately. The main body needs to be used along with any one of the AC plug.
