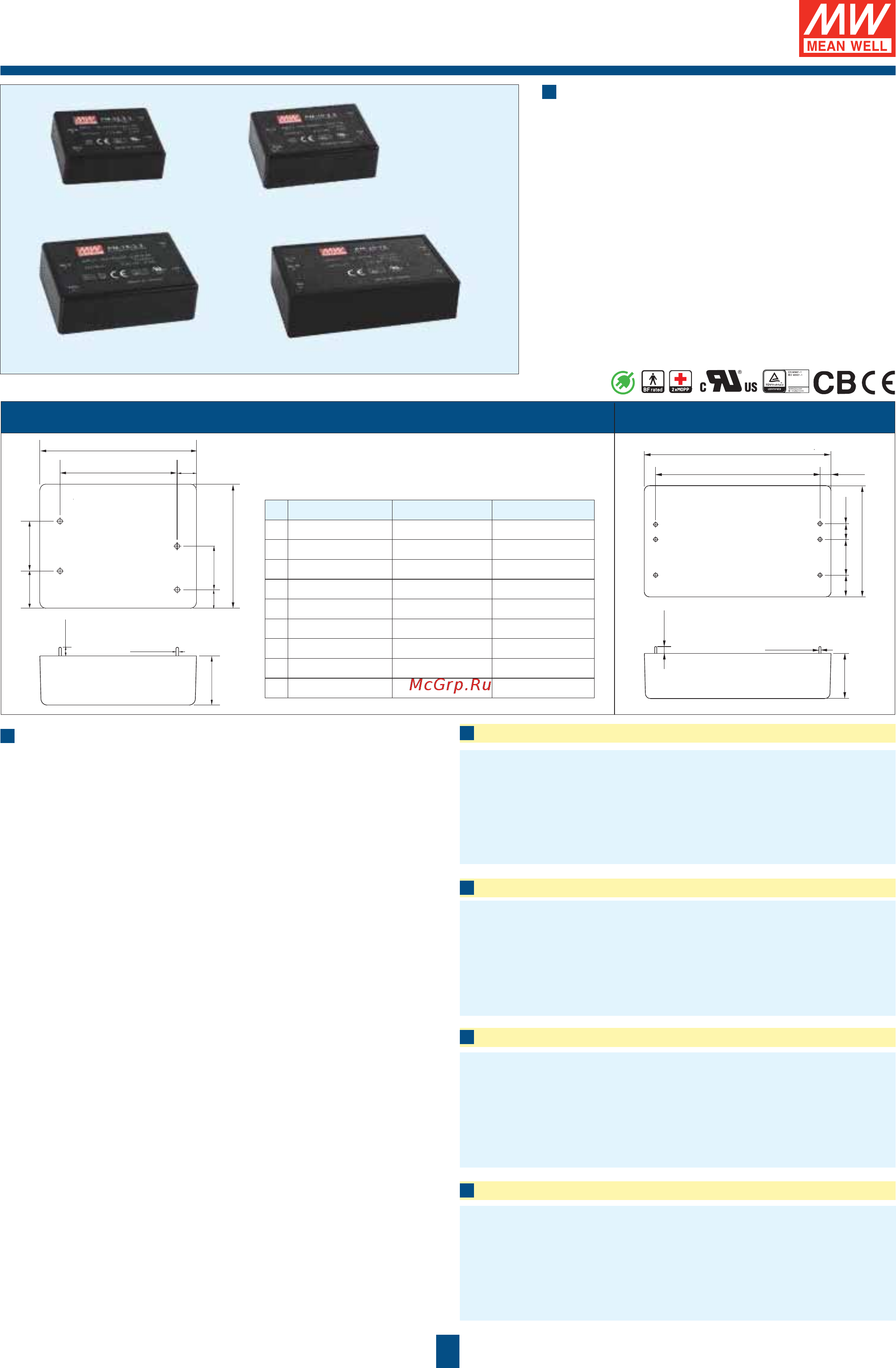

Green Open Frame
5~20W Medical Encapsulated Type
Features
• Universal AC input / Full range
• Medical safety approved (2xMOPP)
• Suitable for BF application with appropriate
system consideration
• Protections: Short circuit / Overload / Over voltage
• /RZOHDNDJHFXUUHQWȝ$:
• No load power consumption <0.5W
(<0.75W for 20W models)
• Fully isolated plastic case
• Isolation class II (5~15W), class I (20W)
• Cooling by free air convection
• Meet industrial, IT safety requirements
• 3 years warranty
5W
62.85x 50x 19.7 mm
General Specification
PM-05 Series
Model No. Output Tol. R&N Effi.
PM-05-3.3 3.3V, 0~1.25A ±3% 80mV 67%
PM-05-5 5V, 0~1.00A ±2% 80mV 71%
PM-05-12 12V, 0~0.42A ±2% 150mV 73%
PM-05-15 15V, 0~0.33A ±2% 150mV 74%
PM-05-24 24V, 0~0.23A ±2% 240mV 76%
PM-10 Series
PM-15 Series
10W
70x 50x 22.7 mm
15W
75x 53x 22.7 mm
20W
94x 56x 22.7 mm
AC input voltage range ......
Frequency range ...............
AC inrush current (max.) ...
Overload protection ..........
Over voltage protection .....
Setup, rise, hold up time ...
Withstand voltage .............
Working temperature .........
Safety standards ..............
EMC standards .................
Connection ......................
Packing ...........................
85~264VAC; 120~370VDC
47-440Hz
Cold start, 25A at 115VAC, 45A at 230VAC
(PM-15: 30A at 115VAC, 50A at 230VAC)
(PM-20: 30A at 115VAC, 65A at 230VAC)
>105% hiccup mode, auto recovery
115%~135% rated output voltage, shut off,
AC recycle to re-start
30PVPVPV#9$&
30PVPVPV#9$&
30PVPVPV#9$&
I/P-O/P: 4kVAC, 1 minute
PM-5/10/15: -20~+70°C
PM-20: -20~+60°C
ANSI/AAMI ES60601-1, TUV EN60601-1,
UL60950-1 (PM-15) approved
EN55011, EN55032 class B, EN61000-3-2,3
EN61000-4-2,3,4,5,6,8,11, EN55024,
EN60601-1-2, EN61204-3 Medical level, criteria A
4 industrial pins (20W: 6 industrial pins)
0.085kg ; 120pcs / 11.2kg / 0.97CUFT(PM-05)
0.105kg ; 120pcs / 13.6kg / 0.97CUFT(PM-10)
0.14kg ; 120pcs / 17.8kg / 0.97CUFT(PM-15)
0.18kg ; 90pcs / 17.2kg / 0.97CUFT(PM-20)
PM-05 / 10 / 15 Series
PM-20 Series
Model No. Output Tol. R&N Effi.
PM-10-3.3 3.3V, 0~2.50A ±3% 150mV 66%
PM-10-5 5V, 0~2.00A ±2% 150mV 74%
PM-10-12 12V, 0~0.85A ±2% 150mV 78%
PM-10-15 15V, 0~0.67A ±2% 150mV 79%
PM-10-24 24V, 0~0.42A ±2% 240mV 79%
Model No. Output Tol. R&N Effi.
PM-15-3.3 3.3V, 0~3.50A ±3% 80mV 73%
PM-15-5 5V, 0~3.00A ±2% 80mV 76%
PM-15-12 12V, 0~1.25A ±2% 150mV 78%
PM-15-15 15V, 0~1.00A ±2% 150mV 79%
PM-15-24 24V, 0~0.63A ±2% 240mV 81%
PM-20 Series
Model No. Output Tol. R&N Effi.
PM-20-3.3 3.3V, 0~4.50A ±3% 80mV 71%
PM-20-5 5V, 0~4.40A ±2% 80mV 75%
PM-20-12 12V, 0~1.80A ±2% 150mV 81%
PM-20-15 15V, 0~1.40A ±2% 150mV 83%
PM-20-24 24V, 0~0.92A ±2% 240mV 84%
