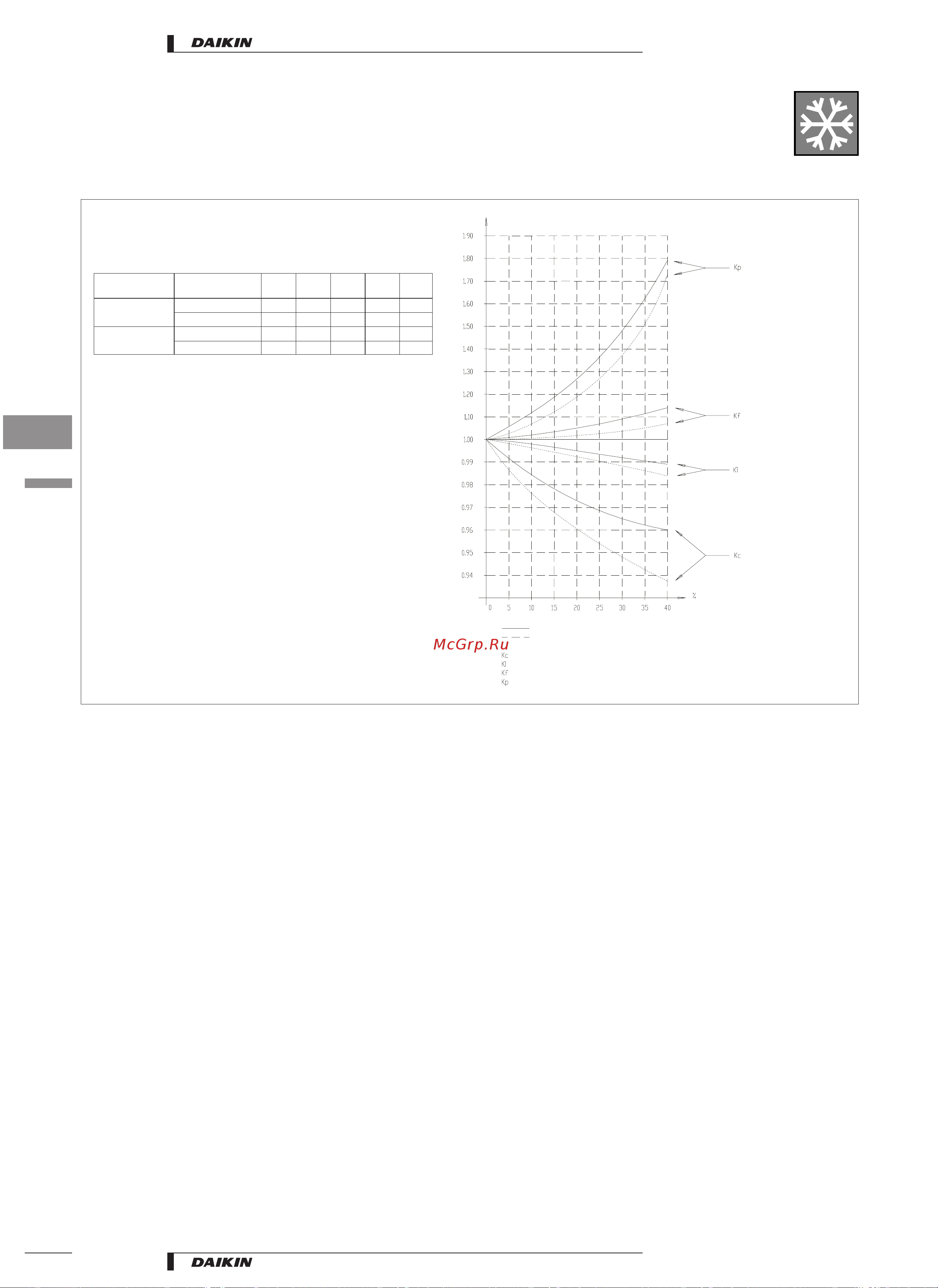

4TW50689-8
CORRECTION FACTOR FOR GLYCOL
Ethylene glycol
Propylene glycol
Legend
Correction on cooling capacity
Correction on power input
Correction on flow rate
Correction on pressure drop
Glycol
Required glycol concentration
Type
Concentration
(wt%)
0 10203040
Ethylene glycol
Freezing point °C 0 -4 -9 -16 -23
Minimum LWE °C 4 2 0 -5 -11
Propylene glycol
Freezing point °C 0 -3 -7 -13 -22
Minimum LWE °C 4 3 -2 -4 -10
•
Water-cooled • R-134a • EUW*40-200KX
3
Capacity tables
3-2
Cooling capacities with glycol for process cooling application
6
3
3-2
190
• Hydronic Systems • Chillers
