EUW*60KX
3TW51549-3A

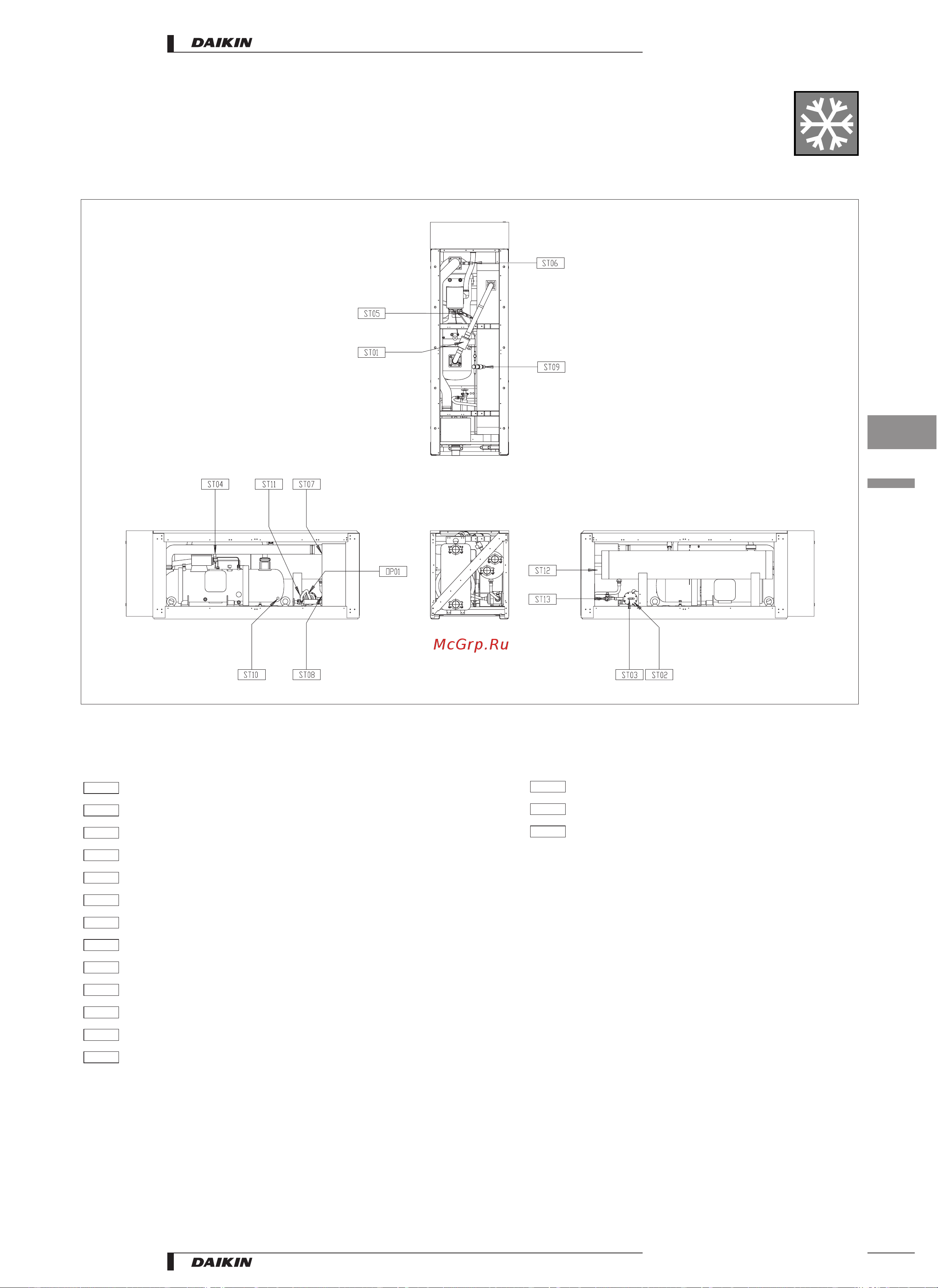

Standard accessories
ST01
Discharge stop valve (suction stop valve only on EUWS40-200KX)
ST02
Drier with solid core
ST03
Charge valve
ST04
Two resetable high pressure switches
ST05
High pressure transmitter
ST06
Low pressure transmitter
ST07
Entering water temperature sensor
ST08
Leaving water temperature sensor
ST09
Pressure relief valves
ST10
Crankcase heater for smooth compressor start
ST11
Sightglass
ST12
Entering water temp. sensor for condenser
ST13
Liquid line stop valve
OPTIONAL ACCESSORIES
OP01
Liquid line solenoid valve
ZH
Glycol application down to -5°
ZL
Glycol application down to -10°
•
Water-cooled • R-134a • EUW*40-200KX
11
Accessories & options
Refrigerant circuit
6
11
221
• Hydronic Systems • Chillers
