Daikin EUW(*)80КХ [27/40] Wiring diagrams
![Daikin EUW(*)80КХ [27/40] Wiring diagrams](/views2/1685124/page27/bg1b.png)
Notes:
1. All used wiring components and materials must comply with the applicable local and
national regulations.
2. Use copper conductors only.
3. For more details, see wiring diagram.
4. Install a circuit breaker for safety.
5. All field wiring and components must be installed by a licensed electrician.
6. The unit shall be grounded in compilance with the applicable local and national codes.
7. The wirings are only general points of connection guides and are not intended to include all
details for a specific installation.
8. Install the main switch that can interrupt all power sources in an integrated manner
because this system consists of the equipment utilizing the multiple power sources.
9. Install the switch and the fuse to the power in line of each equipment.

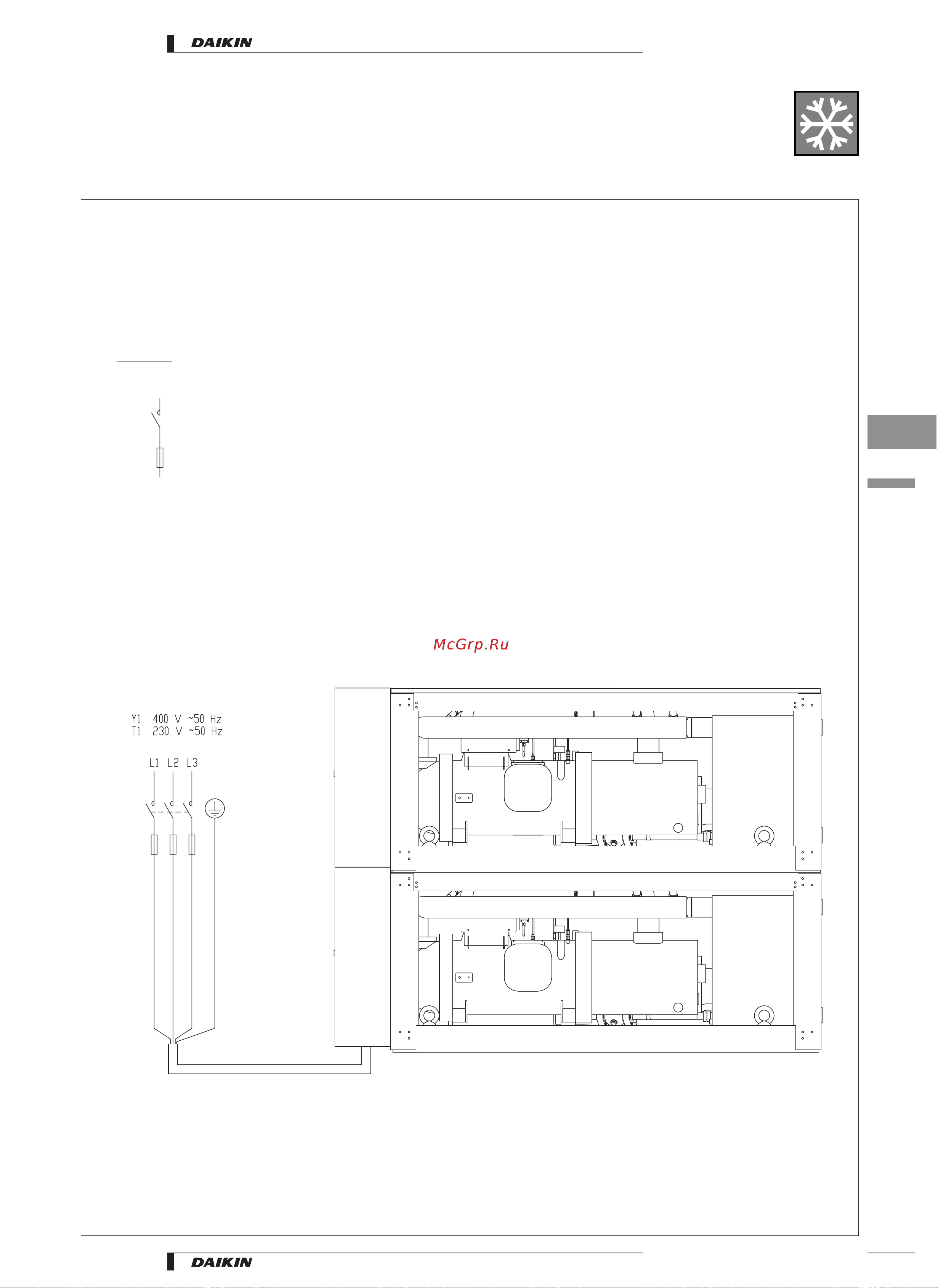

Power supply wiring
Switch
Fuse
Main switch
3TW51569-4
Unit
Electrical circuit equipment
•
Water-cooled • R-134a • EUW*40-200KX
8
Wiring diagrams
6
8
213
• Hydronic Systems • Chillers
