Operation range
4TW51563-1
Glycol
Water

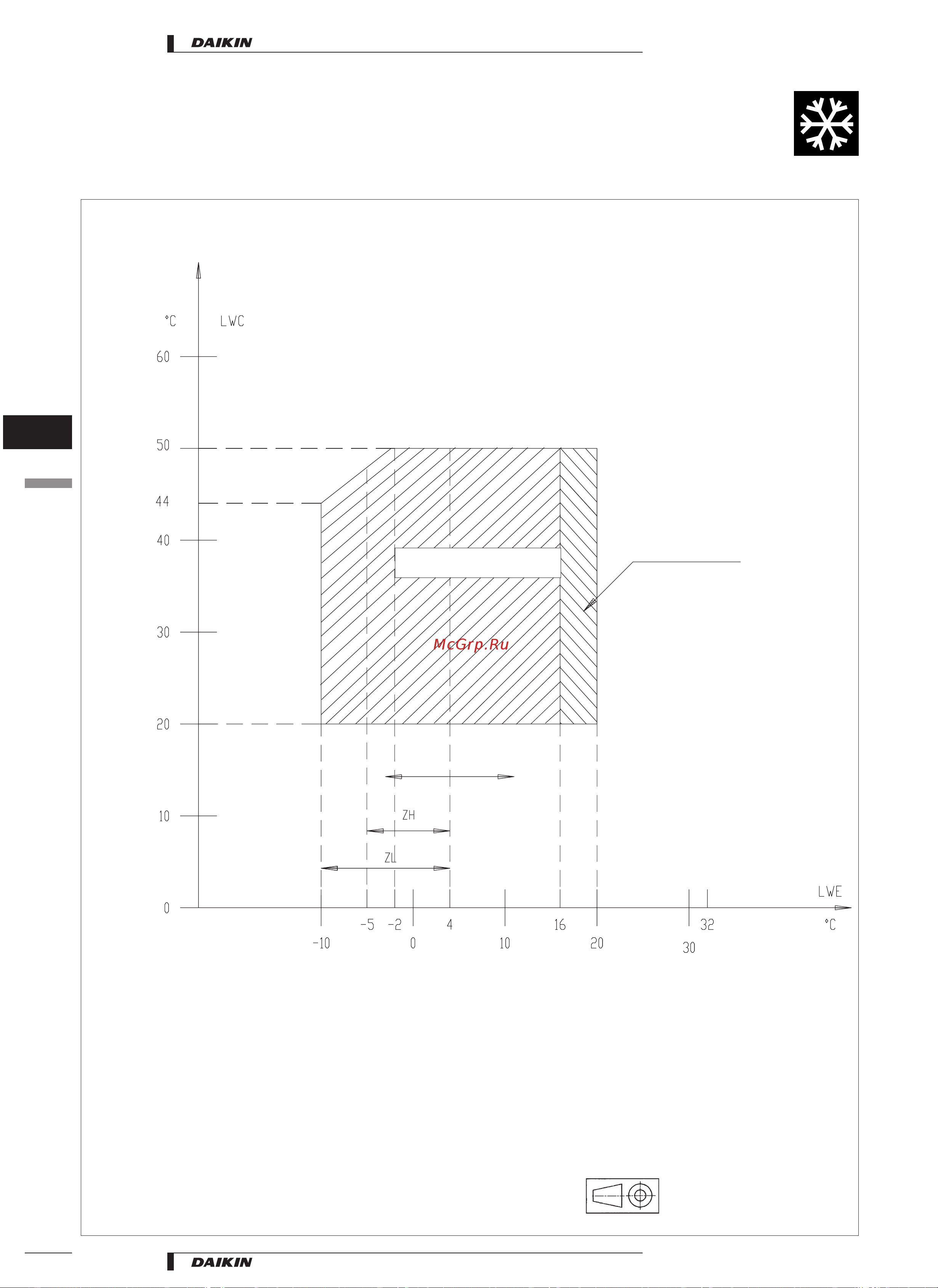

EUW*40-200KX
CONTINUOUS OPERATION AREA
PULL-DOWN AREA
LWE = Leaving Water Evaporator (°C)
LWC = Leaving Water Condenser
* Same application range is applicable for EUWT/B/K/M/S*KX
•
Water-cooled • R-134a • EUW*40-200KX
