10

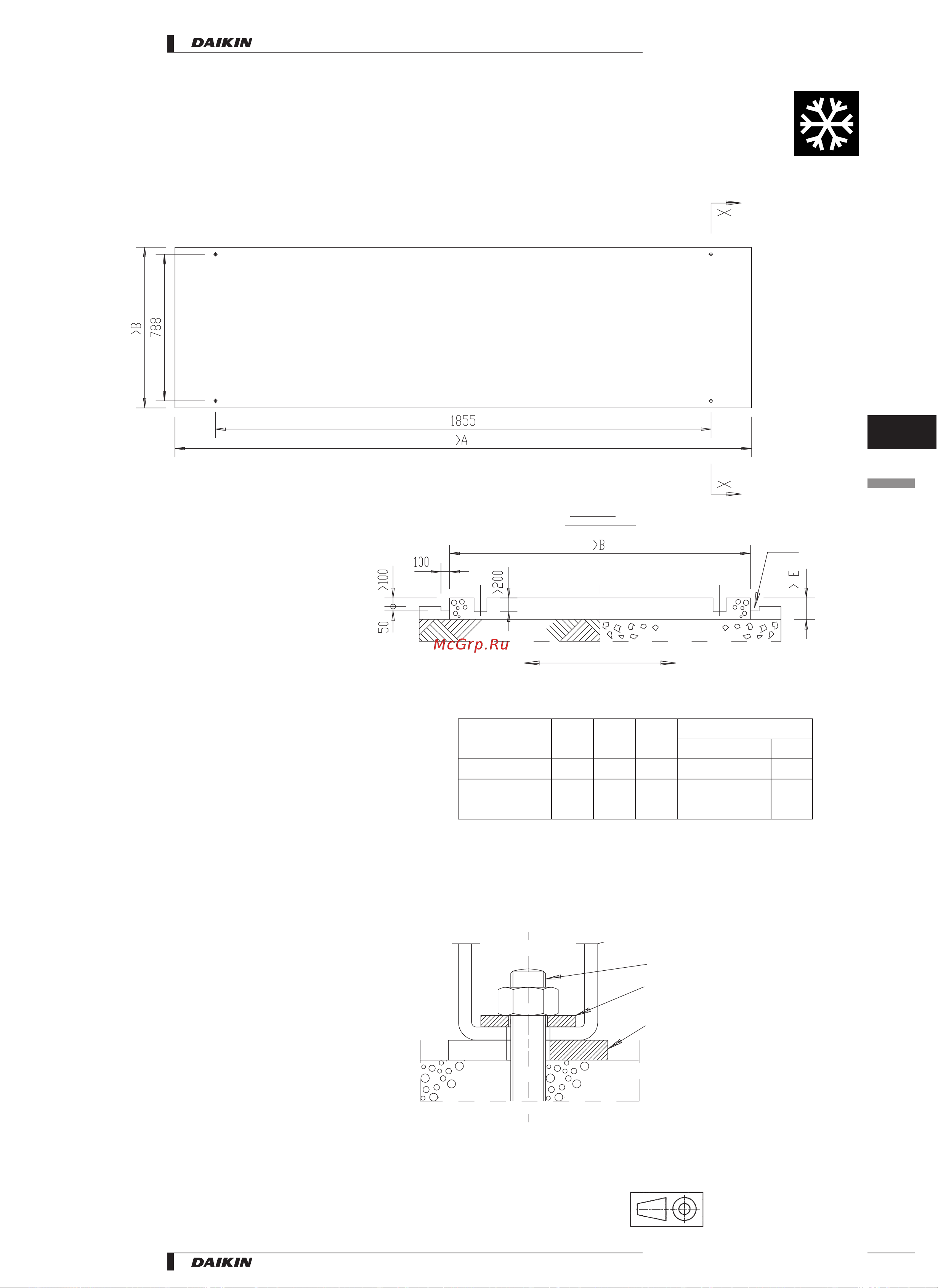

Installation
10-1
Fixation + foundation
4TW51569-2
MODEL A B E
Anchor bolt
Size Qty.
EUW*40-60KX 2367 898 300 M20 x 200 4
EUW*80-100KX 2367 898 350 M20 x 200 4
EUW*120-200KX 2367 898 350 M20 x 270 4
Unit = mm
Anchor bolt
Washer
Field supplied rubber plates, raw
cork or rubber sheet for better
vibration protection.
Foundation is built on concrete floorFoundation is built on the ground
Section X-X
Ditch
Fix anchor bolts into the concrete foundation. The concrete
foundation should be higher than the floor level by
approximately 100 mm for ease of plumbing work and
better drain.
Further, strength of the floor should be sufficient to support
the weight of concrete foundation and unit.
Be certain that the foundation surface is even and flat.
NOTES:
1. The measurement tabulated is based on the fact the base
is made in the ground or on a concrete floor. In case the
base is made on a rigid concrete floor, it is possible to
include thickness of concrete floor in that of the base.
2. In case a base is made on concrete floor, be sure to
provide a ditch as shown. It is important to extract
drainage regardless of wether a base is made in the
ground or on the concrete floor (Ditch → Sewerage).
3. Ingredient ratio of the concrete is cement: 1, sand: 2,
gravel: 3, which is standard and insert iron bars of J10
at every interval of 300 mm. The edge of the concrete
base should be planed.
•
Water-cooled • R-134a • EUW*40-200KX
6
10
10-1
217
• Hydronic Systems • Chillers
