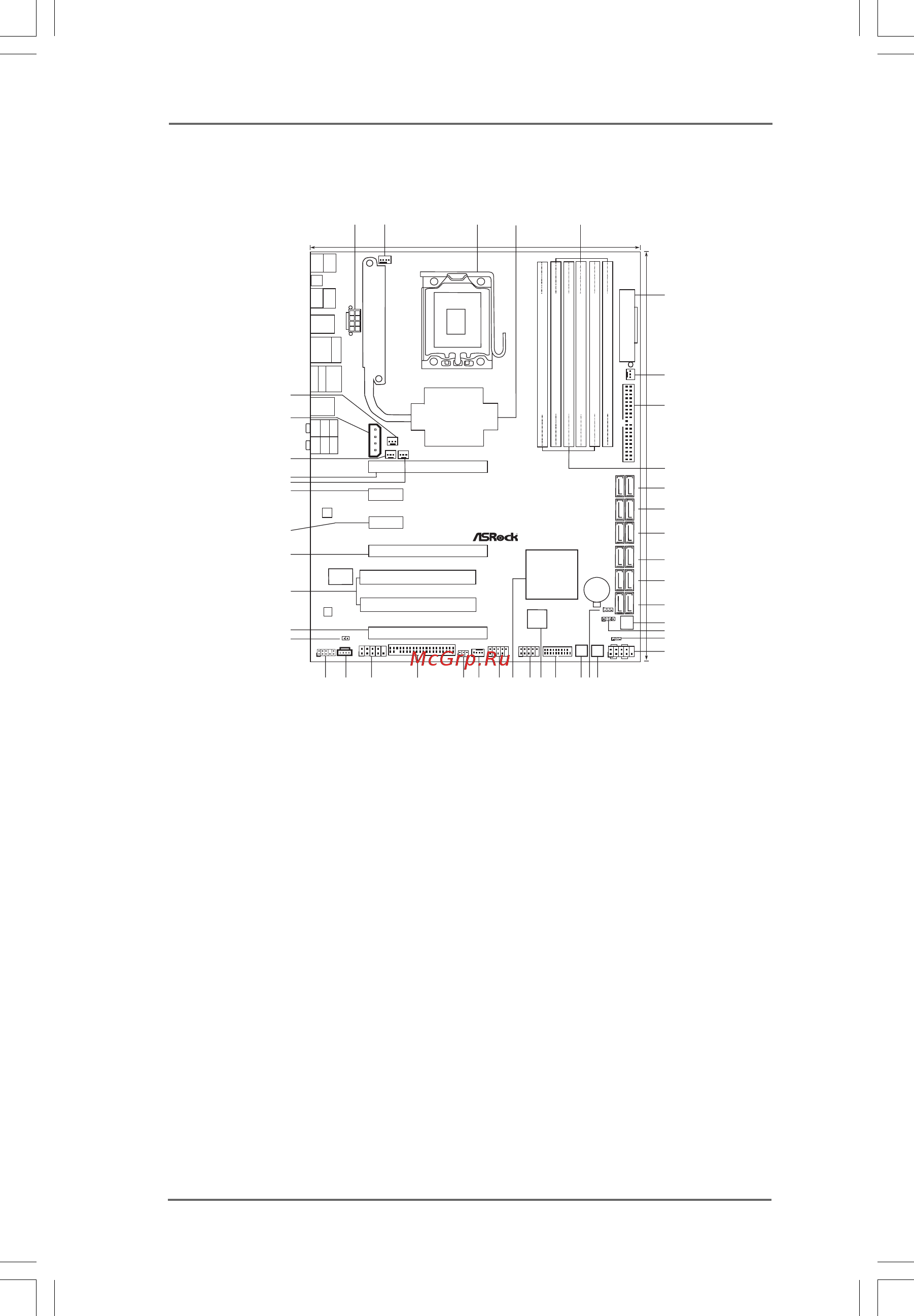

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 22 Power Switch (PWRBTN)
2 CPU Fan Connector (CPU_FAN1) 23 USB 3.0 Header (USB3_1_2, Light Blue)
3 1366-Pin CPU Socket 24 Dr. Debug
4 North Bridge Controller 25 USB 2.0 Header (USB8_9, Blue)
5 3 x 240-pin DDR3 DIMM Slots 26 South Bridge Controller
(Triple Channel: DDR3_A1, DDR3_B1, DDR3_C1 27 Front Panel IEEE 1394 Header
; White) (FRONT_1394, White)
6 ATX Power Connector (ATXPWR1) 28 Chassis Fan Connector (CHA_FAN1)
7 Power Fan Connector (PWR_FAN1) 29 Infrared Module Header (IR1)
8 Primary IDE Connector (IDE1, Blue) 30 Floppy Connector (FLOPPY1)
9 3 x 240-pin DDR3 DIMM Slots 31 COM Port Header (COM1)
(Triple Channel: DDR3_A2, DDR3_B2, DDR3_C2 32 Internal Audio Connector: CD1 (White)
; Blue) 33 Front Panel Audio Header
10 SATA3 Connector (SATA3_1_2, White) (HD_AUDIO1, White)
11 SATA3 Connector (SATA3_3_4, White) 34 HDMI_SPDIF Header (HDMI_SPDIF1, White)
12 SATA3 Connector (SATA3_5_6, White) 35 PCI Express 2.0 x16 Slot (PCIE5, Blue)
13 SATAII Connector (SATAII_1_2, Blue) 36 PCI Slots (PCI1-2)
14 SATAII Connector (SATAII_3_4, Blue) 37 PCI Express 2.0 x16 Slot (PCIE4, Blue)
15 SATAII Connector (SATAII_5_6, Blue) 38 PCI Express x1 Slot (PCIE3, White)
16 8Mb SPI Flash 39 PCI Express x1 Slot (PCIE2, White)
17 Chassis Speaker Header (SPEAKER 1, White) 40 North Bridge Fan Connector (NB_FAN1)
18 Power LED Header (PLED1) 41 PCI Express 2.0 x16 Slot (PCIE1, Blue)
19 System Panel Header (PANEL1, White) 42 Chassis Fan Connector (CHA_FAN2)
20 Reset Switch (RSTBTN) 43 SLI / XFIRE Power Connector
21 Clear CMOS Jumper (CLRCMOS1) 44 CPU Fan Connector (CPU_FAN2)
Intel
ICH10R
30.5cm (12.0 in)
24.4cm (9.6 in)
CMOS
Battery
DDR3_C2 (64 bit, 240-pin module)
DDR3_C1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
HDLED RESET
PLED PWRBTN
PANEL1
1
IDE1
SATA3_5_6
SATA3_3_4
SATA3_1_2
8Mb
BIOS
X58 Extreme6
Intel
X58
Chipset
ATX12V1
DDR3 2000
3 Channels DDR3
QPI 6.4GT/s
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Clr
CMOS
Top:
RJ-45
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
CPU_FAN1
LAN
PHY
1
HD_AUDIO1
CPU_FAN2
CHA_FAN2
PWR_FAN1
CHA_FAN1
PWRBTN
RSTBTN
Debug
LED
AUDIO
CODEC
CD1
Super
I/O
SPEAKER1
1
CLRCMOS1
1
IR1
1
COM1
1
FLOPPY1
1
HDMI_SPDIF1
PCIE1
PCI1
PCI2
NEC USB 3.0
1394a
RoHS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
23
24
22
17
18
19
20
21
25
26
27
28
29
30
31
3233
34
35
36
37
38
39
40
PLED1
1
PCI Express 2.0
SATA3 6Gb/s
ErP/EuP Ready
41
42
44
Designed in Taipei
USB8_9
1
43
SATAII_5_6
SATAII_3_4
SATAII_1_2
FRONT_1394
1
USB3_1_2
PCIE2
PCIE3
PCIE4
PCIE5
NB_FAN1
SLI/XFIRE_PWR1
USB 2.0
T: U SB 0
B: USB1
USB 3.0
T:USB2
B: USB3
USB 2.0
T: U SB 4
B: USB5
IEEE 1394
eSATA1
USB 3.0
T: U SB 6
B: USB7
Front USB 3.0
3-Way SLI
