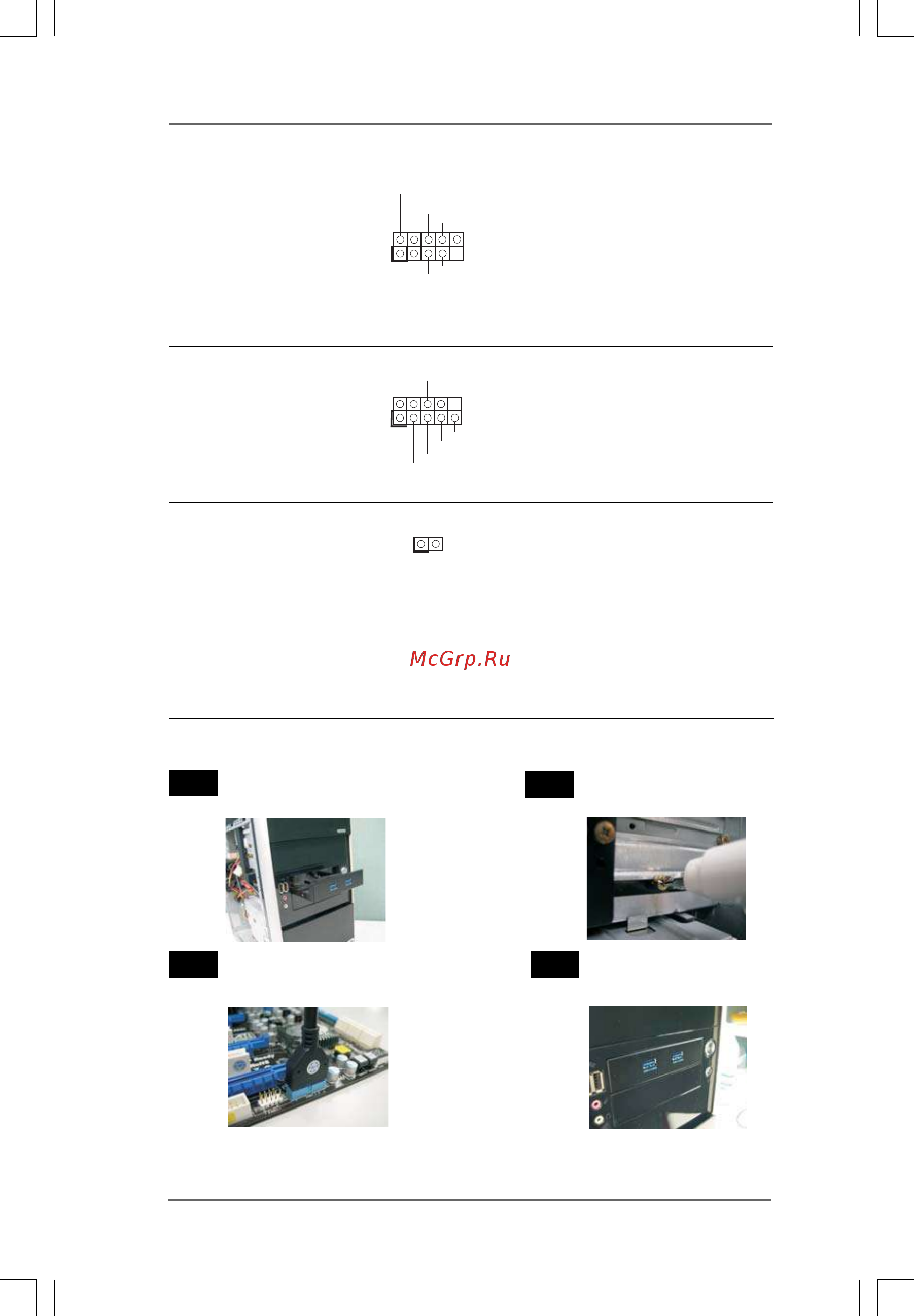

![ASRock X58 Extreme6 [40/76] The installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel](/img/pdf.png)
ASRock X58 Extreme6 [40/76] The installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel
![ASRock X58 Extreme6 [40/76] The installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel the installation guide of front usb 3 panel](/views2/1686721/page40/bg28.png)
4040
4040
40
IEEE 1394 Header Besides one default IEEE 1394
(9-pin FRONT_1394) port on the I/O panel, there is one
(see p.12 No. 27) IEEE 1394 header
(FRONT_1394) on this
motherboard. This IEEE 1394
header can support one IEEE
1394 port.
+12V
GN D
+12V
1
RXTPBM_0
GN D
RXTPAM_0
RXTPBP_0
GN D
RXTPAP_0
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.12 No. 31)
CCTS#1
DDS R#1
DDTR#1
RRXD1
DDCD#1
TTXD1
GND
RRTS #1
RRI#1
1
HDMI_SPDIF Header HDMI_SPDIF header, providing
(2-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA
(see p.12 No. 34) card, allows the system to
con nect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
SPDIFOUT
GND
1
The Installation Guide of Front USB 3.0 PanelThe Installation Guide of Front USB 3.0 Panel
The Installation Guide of Front USB 3.0 PanelThe Installation Guide of Front USB 3.0 Panel
The Installation Guide of Front USB 3.0 Panel
Intall the Front USB 3.0 Panel into the 3.5”
drive bay of the chassis.
Step 1
Step 2
The Front USB 3.0 Panel is ready to use.
Plug the Front USB 3.0 cable into the USB 3.0
header (USB3_1_2) on the motherboard.
Step 3
Step 4
Screw the Front USB 3.0 Panel to the
drive bay.
