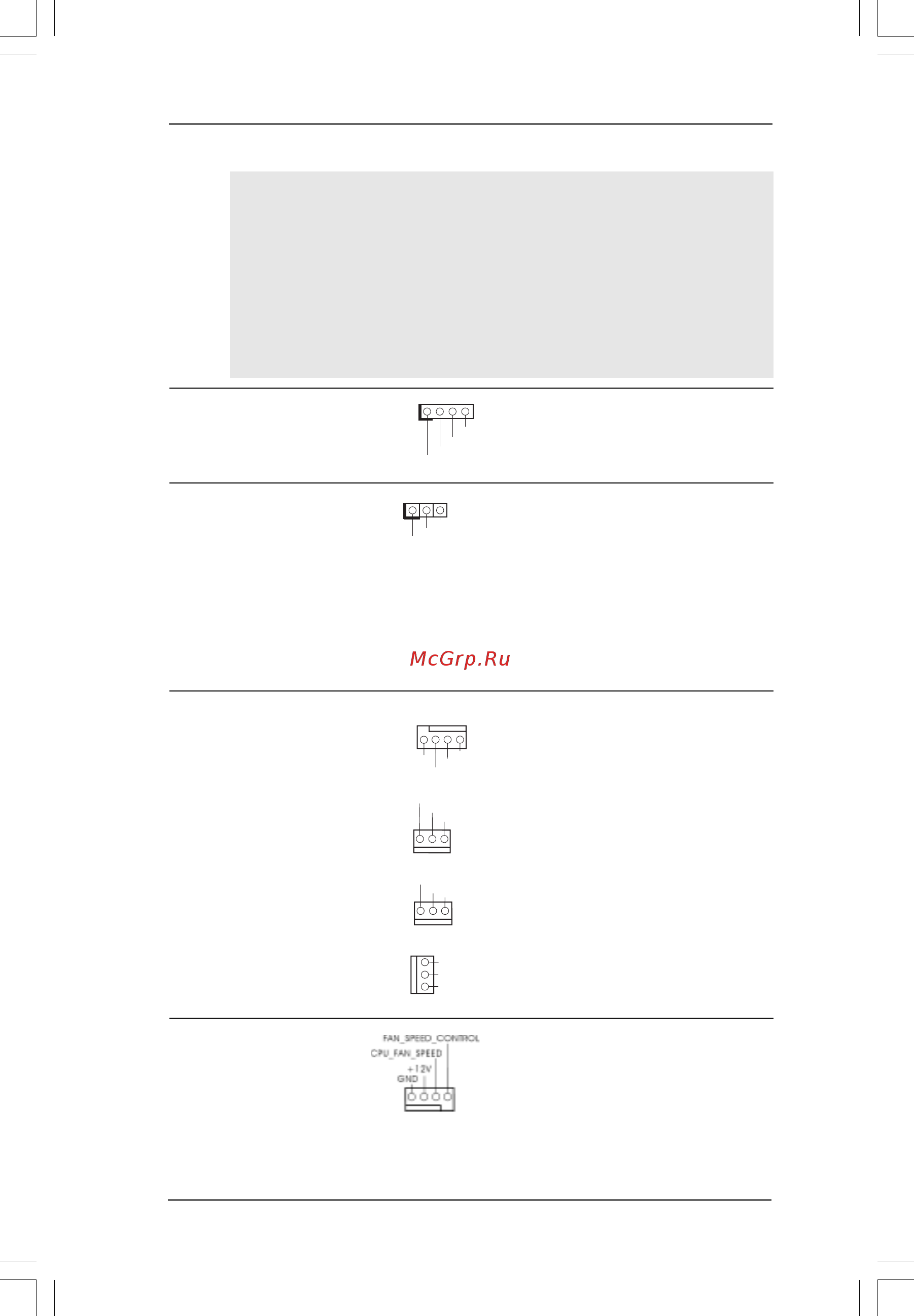

Chassis, NB and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1) to the fan connectors and
(see p.12 No. 28) match the black wire to the
ground pin.
(3-pin CHA_FAN2)
(see p.12 No. 42)
(3-pin NB_FAN1)
(see p.12 No. 40)
(3-pin PWR_FAN1)
(see p.12 No. 7)
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.12 No. 2) match the black wire to the
ground pin.
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
C HA_FAN_SPEED
+5V
D UMMY
D UMMY
SPEAKER
1
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.12 No. 17)
Power LED Header Please connect the chassis
(3-pin PLED1) power LED to this header to
(see p.12 No. 18) indicate system power status.
The LED is on when the system
is operating. The LED keeps
blinking in S1 state. The LED is
off in S3/S4 state or S5 state
(power off).
1
PLED+
PLED+
PLED-
1 2 3 4
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The
LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module
mainly consists of power switch, reset switch, power LED, hard drive
activity LED, speaker and etc. When connecting your chassis front panel
module to this header, make sure the wire assignments and the pin
assign-ments are matched correctly.
PWR_FAN_SPEED
GND
+12V
GND
+12V
NB_FAN_SPEED
