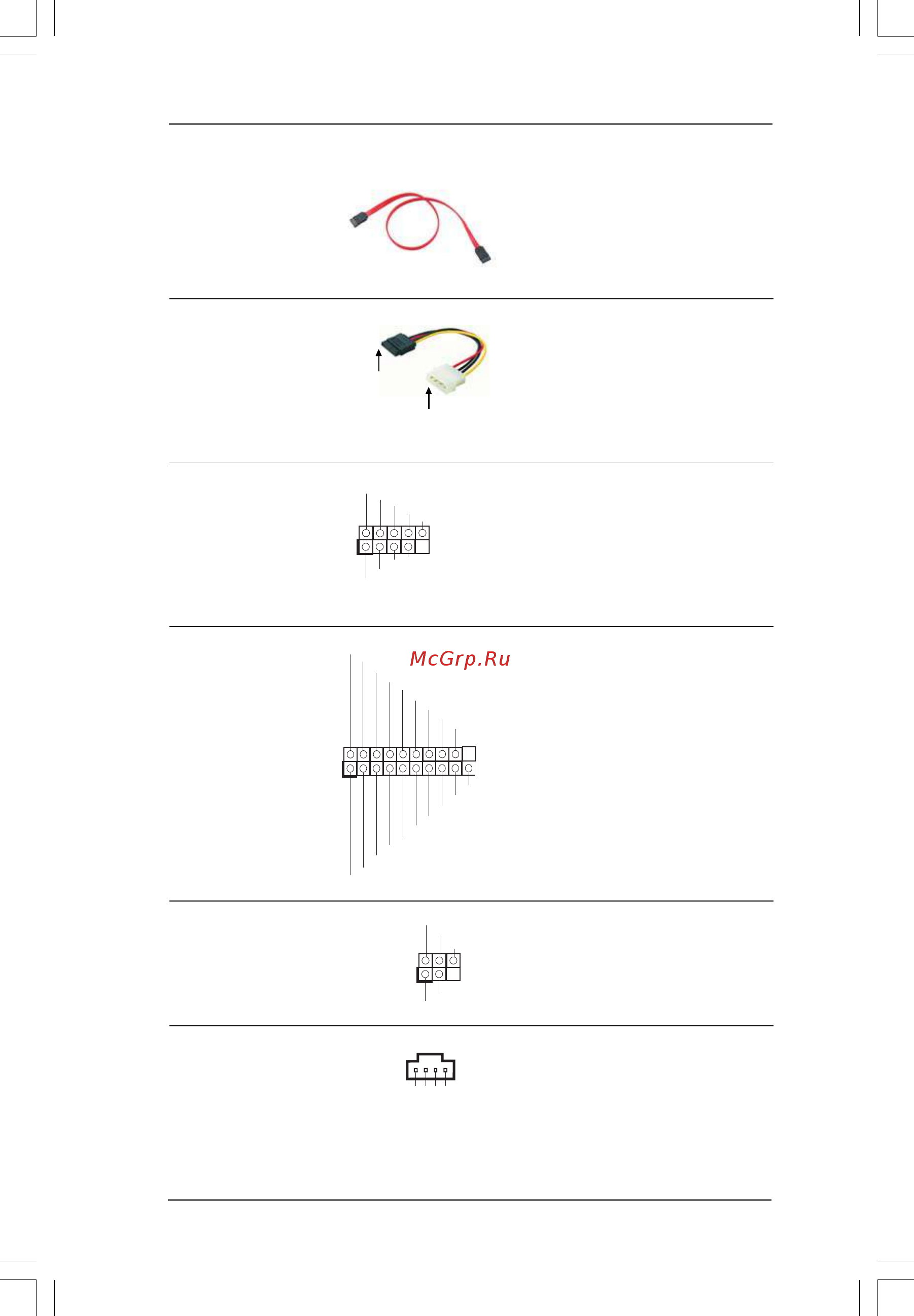

Infrared Module Header This header supports an optional
(5-pin IR1) wireless transmitting and
(see p.12 No. 29) receiving infrared module.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB8_9) ports on the I/O panel, there is
(see p.12 No. 25) one USB 2.0 header on this
motherboard. This USB 2.0
header can support two USB
2.0 ports.
1
IRTX
+5VSB
DUMMY
IRRX
GND
connect to the SATA HDD
power connector
connect to the
power supply
Serial ATA (SATA) Please connect the black end of
Power Cable SATA power cable to the power
(Optional) connector on each drive. Then
connect the white end of SATA
power cable to the power
connector of the power supply.
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII / SATA3 hard disk or the
SATAII / SATA3 connector on this
motherboard.
USB 3.0 Header Besides four default USB 3.0
(19-pin USB3_1_2) ports on the I/O panel, there is
(see p.12 No. 23) one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input
(CD1: see p.12 No. 32) from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
CD-L
GND
GND
CD-R
CD1
1
ID
IntA_P2_D+
IntA_P2_D-
GND
IntA_P2_SSTX+
IntA_P2_SSTX-
GND
IntA_P2_SSRX+
IntA_P2_SSRX-
Vbus
IntA_P1_D+
IntA_P1_D-
GND
IntA_P1_SSTX+
IntA_P1_SSTX-
GND
IntA_P1_SSRX+
IntA_P1_SSRX-
Vbus
1
DUMMY
GND
P+8
P-8
USB_PWR
USB_PWR
GND
P+9
P-9
