BIOS SETUP UTILITY
Hardware Health Event Monitoring
Select Screen
Select Item
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
CPU Temperature
M / B Temperature
Vcore
+ 3.30V
+ 12.0V
+ 5.00V
CPUFan1Speed
ChassisFan1Speed
ChassisFan2Speed
NB Fan1 Speed
Power Fan Speed
CPUFan2Speed
: 37C/98F
: 1.152V
: 3.312V
: 11.968V
: 5.080V
: 31C/87F
:N/A
:N/A
:N/A
:N/A
:N/A
:N/A
Main OC Tweaker Advanced
Boot Security Exit
H/W Monitor
CPUFan1&2Setting
Chassis Fan1 Setting
Chassis Fan2 Setting
3.53.5
3.53.5
3.5

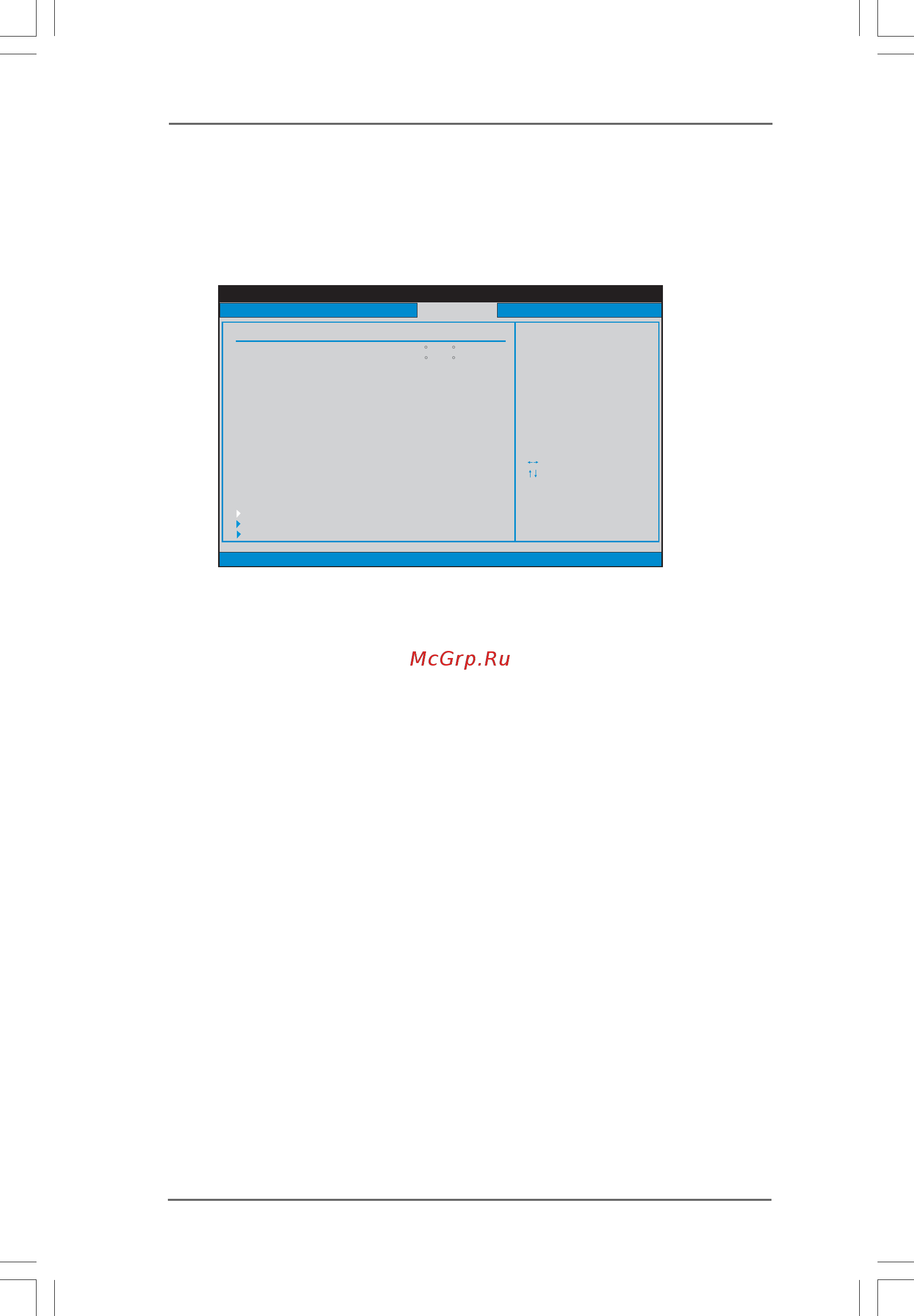

Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen
Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen
Hardware Health Event Monitoring Screen
In this section, it allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, CPU fan
speed, chassis fan speed, and the critical voltage.
CPU Fan 1 & 2 Setting
This allows you to set the CPU fan 1 & 2 speed. Configuration options: [Full
On] and [Automatic mode]. The default is value [Full On].
Chassis Fan1 Setting
This allows you to set the chassis fan1 speed. Configuration options:
[Full On], [Automatic mode] and [Manual Mode]. The default is value [Full
On].
Chassis Fan2 Setting
This allows you to set the chassis fan2 speed. Configuration options:
[Level 1] to [Level 4]. The default is value [Level 4].
NB Fan1 Setting
This allows you to set the NB fan1 speed. Configuration options:
[Full On] and [Manual Mode]. The default is value [Full On].
