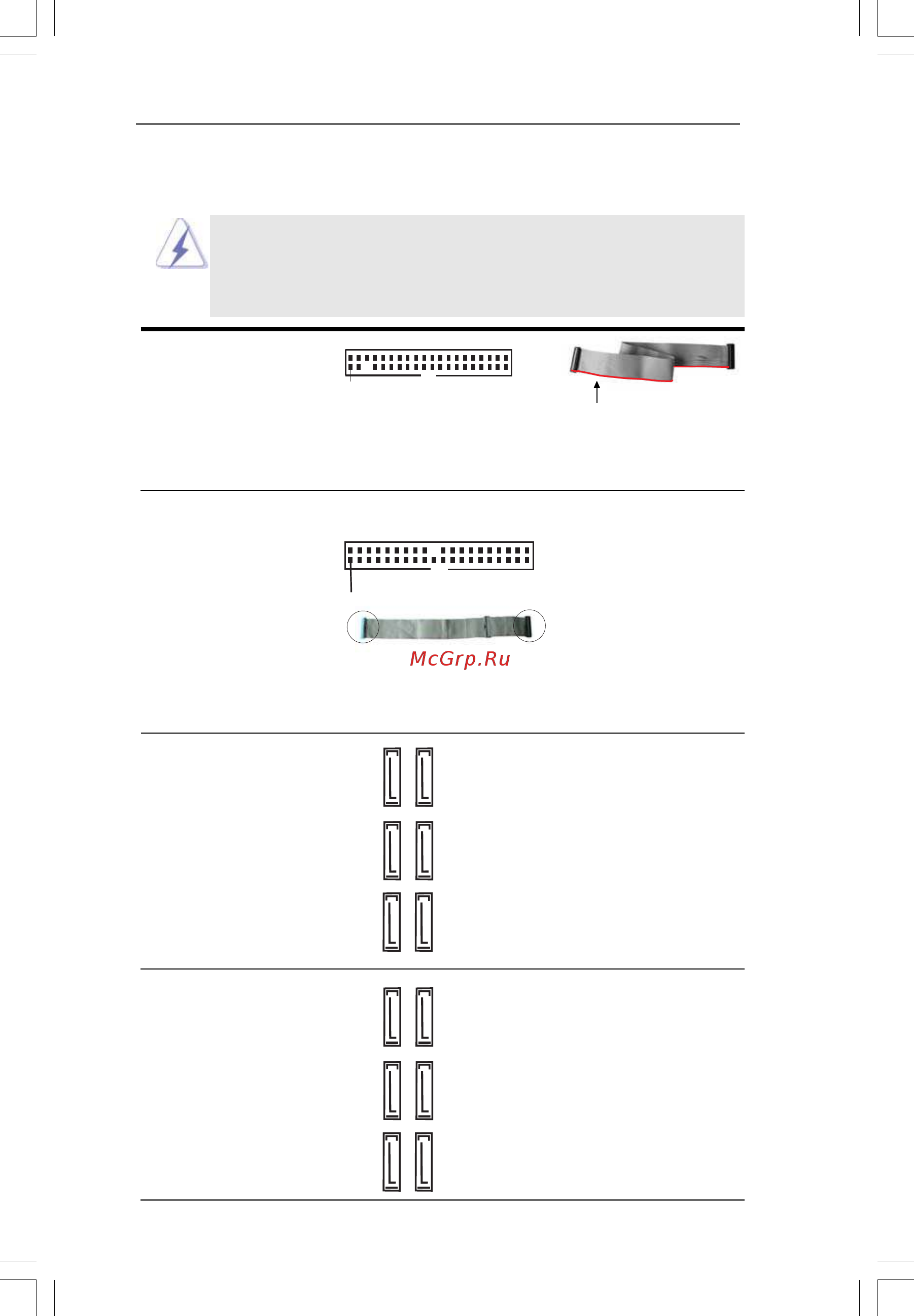

2.11 Onboard Headers and Connectors2.11 Onboard Headers and Connectors

2.11 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

FDD connector

(33-pin FLOPPY1)

(see p.12 No. 30)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.12 No. 8)

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These six Serial ATAII (SATAII)

(SATAII_1_2: see p.12, No. 13) connectors support SATA data

(SATAII_3_4: see p.12, No. 14) cables for internal storage

(SATAII_5_6: see p.12, No. 15) devices. The current SATAII

interface allows up to 3.0 Gb/s

data transfer rate.

FLOPPY1

Pin1

connect the black end

to the IDE devices

connect the blue end

to the motherboard

IDE1

PIN1

80-conductor ATA 66/100/133 cable

SATAII_5_6 SATAII_3_4 SATAII_1_2

Serial ATA3 Connectors These six Serial ATA3 (SATA3)

(SATA3_1_2: see p.12, No. 10) connectors support SATA data

(SATA3_3_4: see p.12, No. 11) cables for internal storage

(SATA3_5_6: see p.12, No. 12) devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate. If you install

the HDD on the eSATA port on

the rear I/O, the internal

SATA3_6 will not function.

SATA3_5_6 SATA3_3_4 SAT3_1_2
