* SLI
TM
appearing here is a registered trademark of NVIDIA
®
Technologies Inc., and is used
only for identification or explanation and to the owners’ benefit, without intent to infringe.
For Windows
®
Vista
TM
/ Vista
TM
64-bit / 7 / 7 64-bit OS:
(For 3-Way SLI
TM
mode)
A. Follow step A to D on page 26.

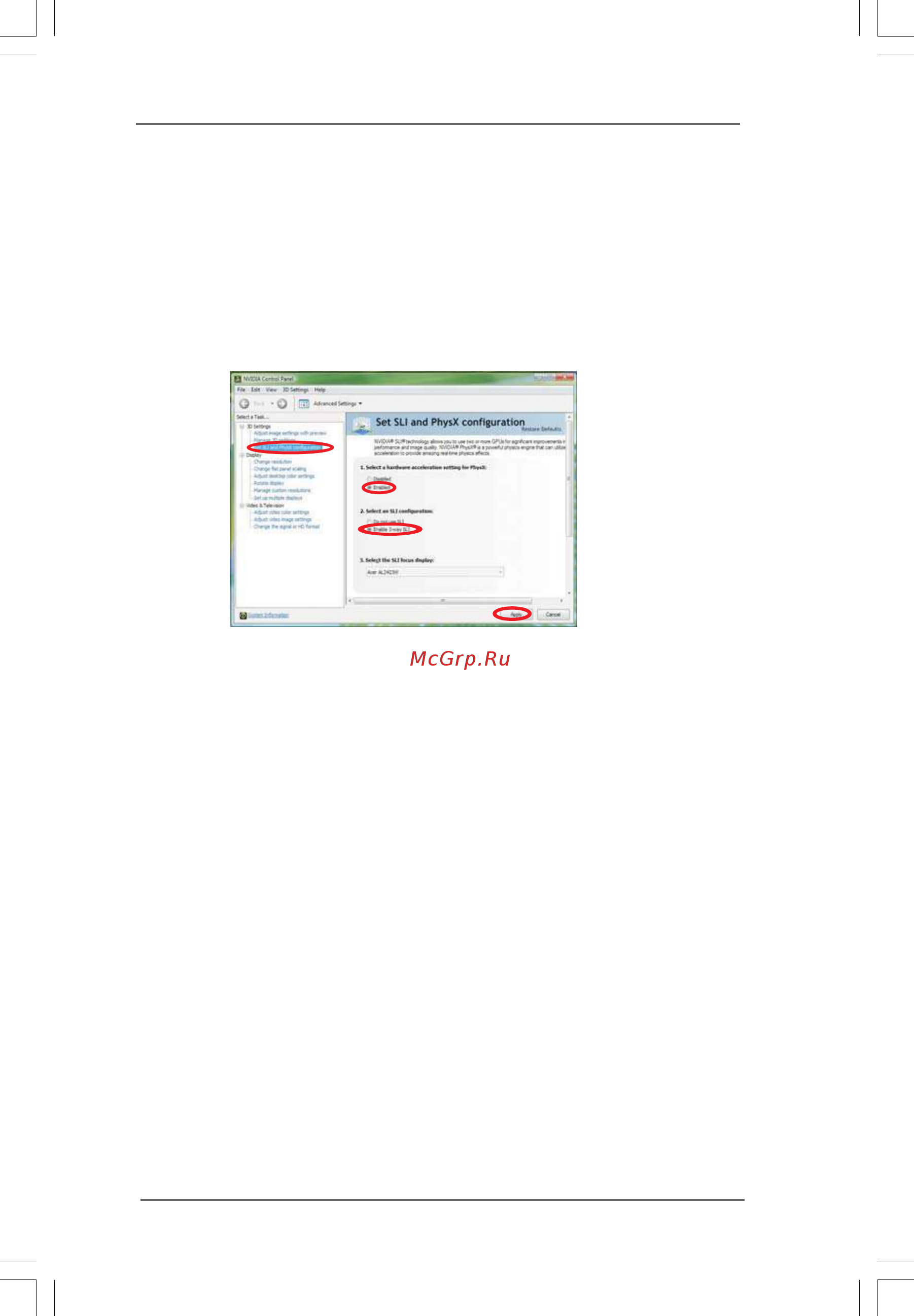

B. From the pop-up menu, select Set SLI and PhysX configuration. In
Select a hardware acceleration setting for PhysX item, please
select Enabled. In Select an SLI configuration item, please select
Enable 3-way SLI. And click Apply.
C. Reboot your system.
D. You can freely enjoy the benefit of 3-Way SLI
TM
feature.
