11

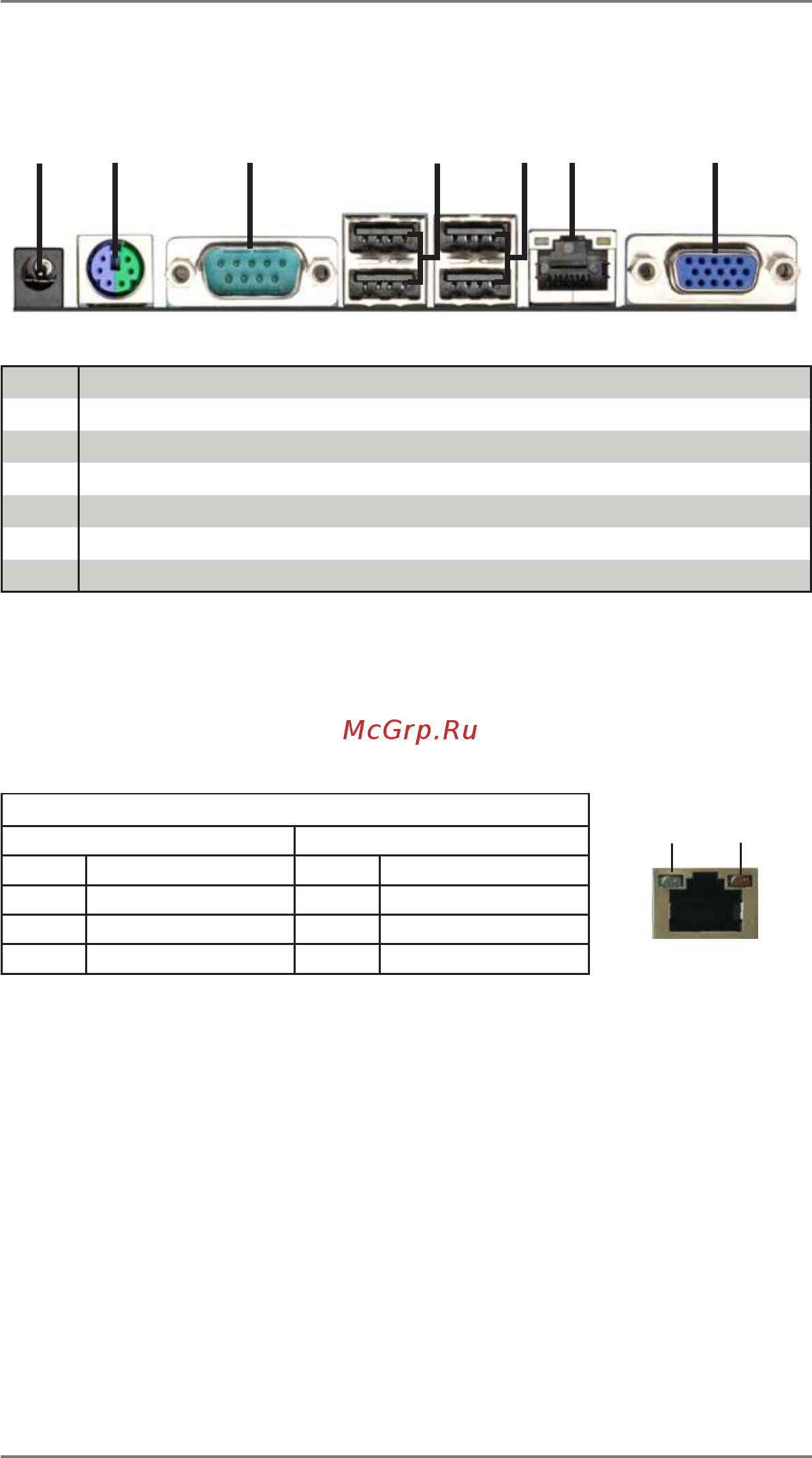

1.5 I/O Panel
* There are two LEDs on each LAN port. Please refer to the table below for the LAN
port LED indications.
ACT/LINK
LED
SPEED
LED
LAN Port
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On 100Mbps connection Green 1Gbps connection
1 DC Jack (Φ 2.0)
2 PS2 Keyboard/Mouse
3 COM Port (COM1)
4 USB 2.0 Ports (USB0_1)
5 USB 2.0 Ports (USB2_3)
6* LAN RJ-45 Port
7 D-Sub (VGA1)
1
4
3
6
2
7
5
