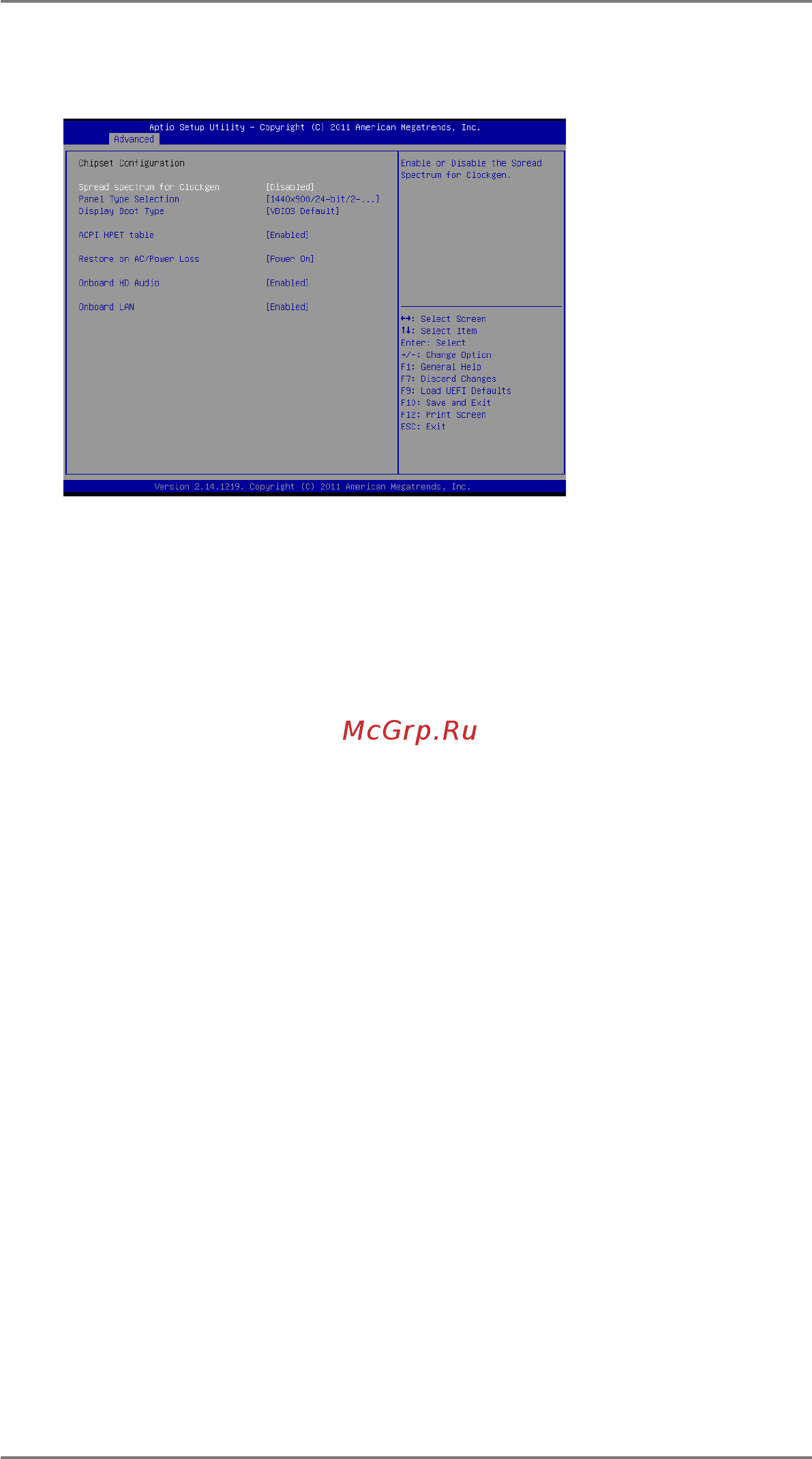

3.3.3 Chipset Conguration
Spread spectrum for Clockgen
Enable or disable the Spread spectrum for Clockgen.
Panel Type Selection
Use this to select a panel type.
Display Boot Type
Use this to select the video device which will be activated during
POST.
ACPI HPET Table
Use this to enable or disable the ACPI HPET Table.
Restore on AC/Power Loss
This allows you to set the power state after an unexpected AC/
power loss. If [Power Off] is selected, the AC/power remains off
when the power recovers. If [Power On] is selected, the AC/power
resumes and the system starts to boot up when the power recov-
ers.
Onboard HD Audio
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio.
Onboard LAN
This allows you to enable or disable the Onboard LAN.
