ASRock IMB-146 Series [15/46] Installing serial sata sata2 hard disks
![ASRock IMB-146 Series [15/46] Installing serial sata sata2 hard disks](/views2/1693622/page15/bgf.png)
15
Serial ATA2 Connectors
(SATAII_1: see p.10, No. 13)
(SATAII_2: see p.10, No. 11)
SATAII_2
SATAII_1
These two Serial ATA2
(SATA2) connectors sup-
port SATA data cables for
internal storage devices.
The current SATA2 interface
allows up to 3.0 Gb/s data
transfer rate.

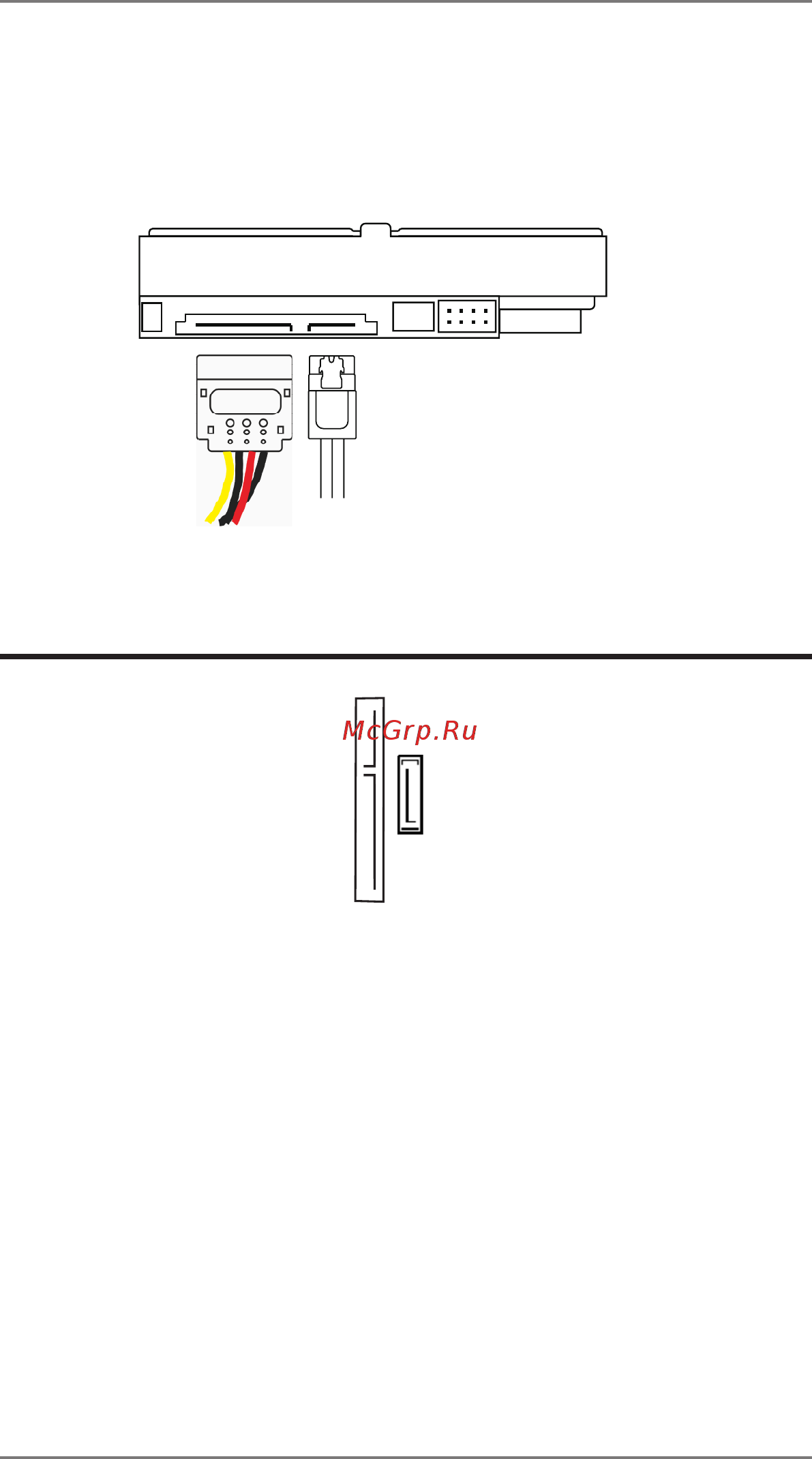

2.3 Installing Serial SATA / SATA2 Hard Disks
STEP 1: Connect the SATA power cable to the hard disk.
STEP 2: Connect one end of the SATA data cable to the hard disk.
STEP 3: Connect the other end of the SATA data cable to the mother-
board’s SATA2 connectors.
