39

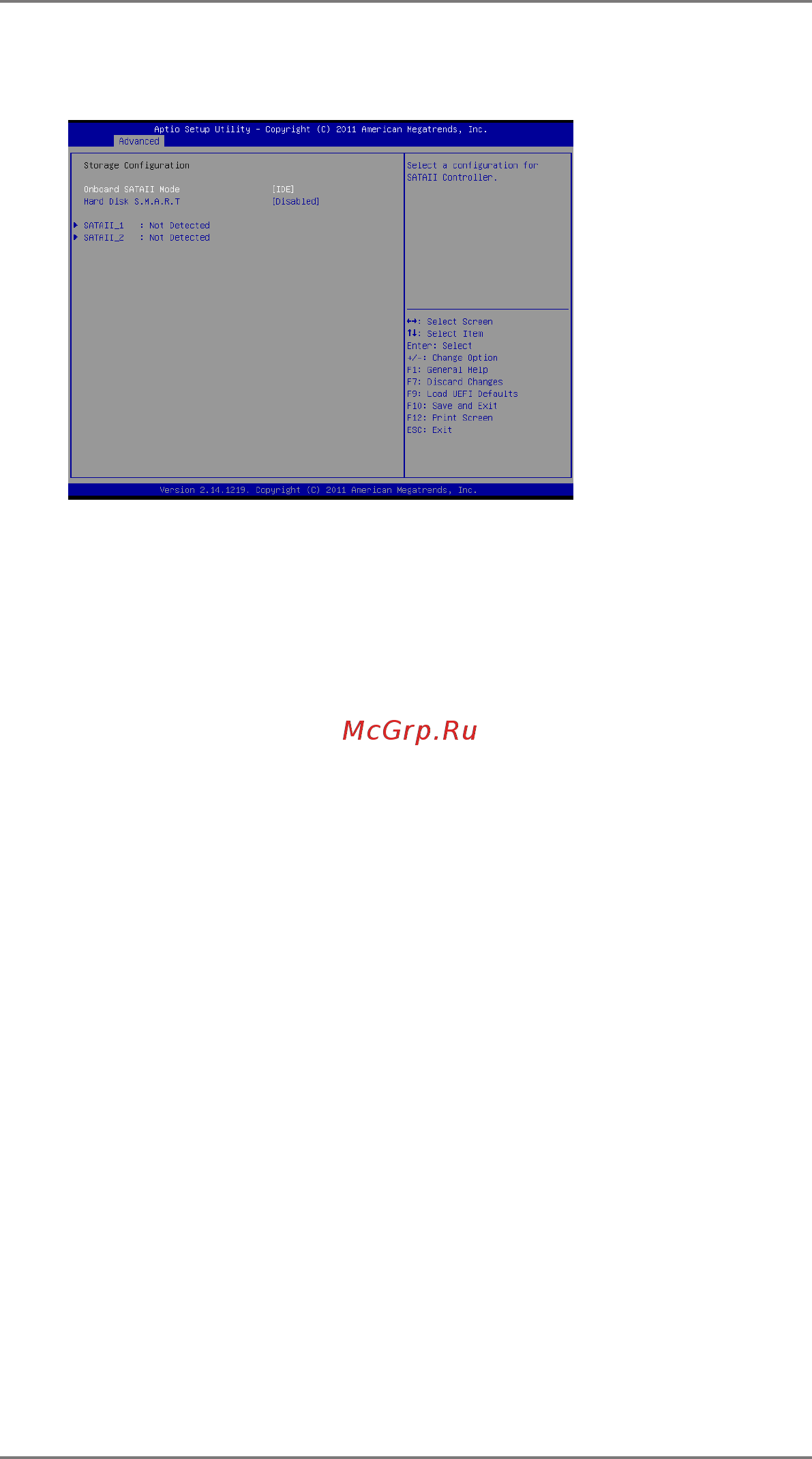

3.3.4 Storage Conguration
Onboard SATAII Mode
Use this to select the SATA mode for SATAII_1 and SATAII_2 ports.
Conguration options: [IDE Mode] and [AHCI Mode].
Hard Disk S.M.A.R.T.
Use this to enable or disable S.M.A.R.T. (Self-Monitoring, Analysis,
and Reporting Technology).
