27

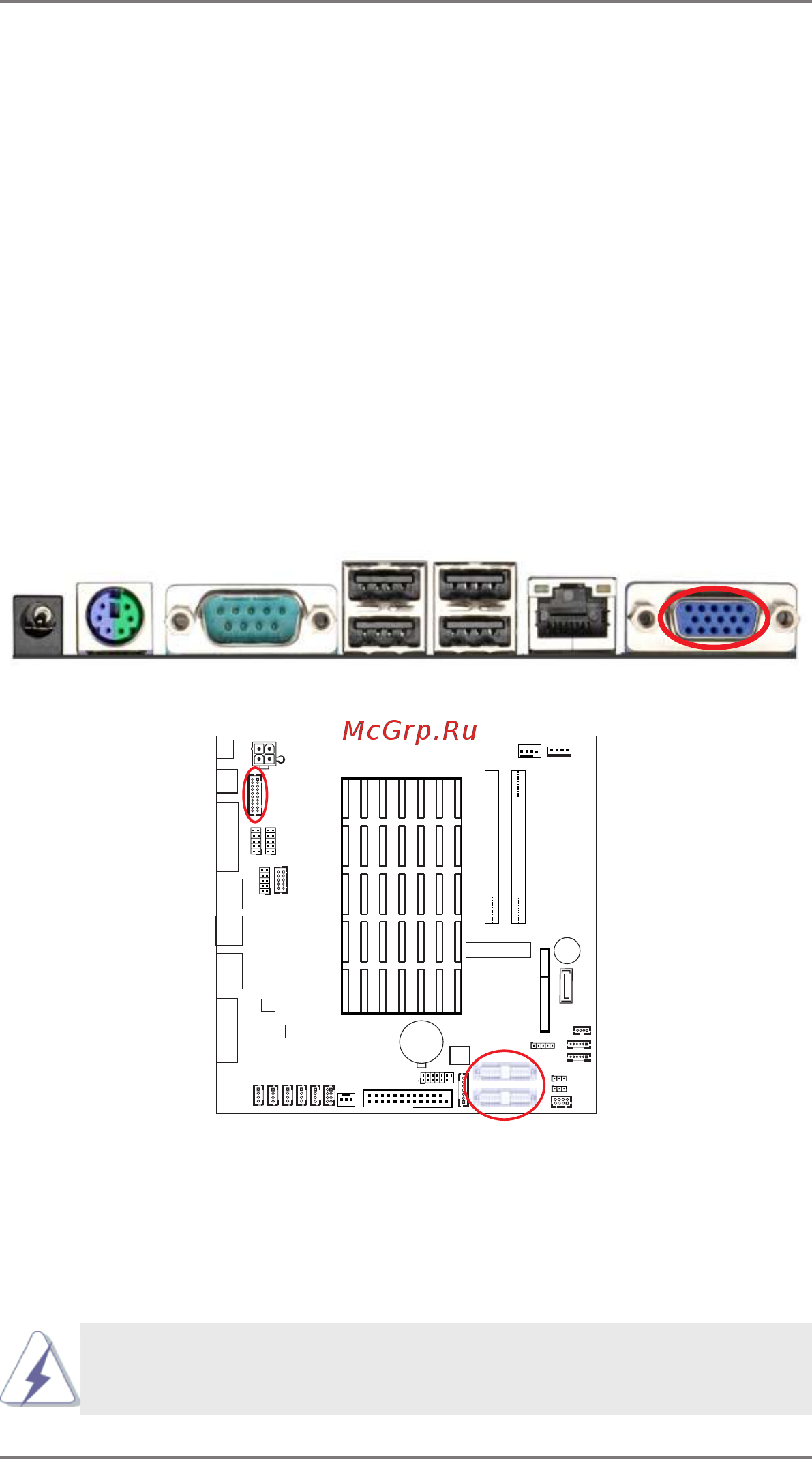

2.10 Dual Monitor
Dual Monitor
This motherboard supports dual monitor. With the internal VGA output sup-
port (D-Sub, DVI and LVDS), you can enjoy dual monitor without installing
any add-on VGA cards to this motherboard. This motherboard also pro-
vides independent display controllers for D-Sub, DVI and LVDS to support
dual VGA output so that the D-Sub, DVI and LVDS can drive the same or
different display contents.
To enable dual monitor, please connect monitor cables to the respective
ports on the I/O panel and the motherboard.
D-Sub, DVI and LVDS monitors cannot all be enabled at the
same time. You can only choose two of them.
LVDS ports
DVI header
If you have already installed the VGA driver from our support CD to your
system, you can enjoy dual monitor after your system reboots. If you
haven’t installed the VGA driver yet, please install it from our support CD
and restart your computer.
ATX12V 1
DDR3_ A1
DDR3_ B1
BUZZ1
CMOS
Battery
USB 2.0
T: USB0
B: USB1
RJ-45
IM B - 146
COM1
AUDIO
CODEC
LAN
16Mb
BIOS
SATAII_ 2
1
LVDS1
CLRCMOS1
1
CPU_FAN1
CHA_FAN1
PCIE1
PS2
Keyboard
/Mouse
SATA_PWR1
1
LPT1
1
1
LVDS2
DC_JACK1
USB 2.0
T: USB2
B: USB3
VGA1
LPC1
PWR_JP1
1
PANEL1
USB4_5
LVDS_VOL1
1
1
1
SATAII_ 1
SET_ CM2
DIO1
DVI1
1
1
SET_ CM1
COM2
1
MIC_IN1
LINE_OUT1
LINE_IN1
SPEAKER_OUT1
USB6
1
1
1
1
1
1
BLT_VO L1
1
1
LVDS2_BLT_CTL1
BLT_PWR3
BLT_PWR2
1
1
1
1
1
D-Sub port
