43

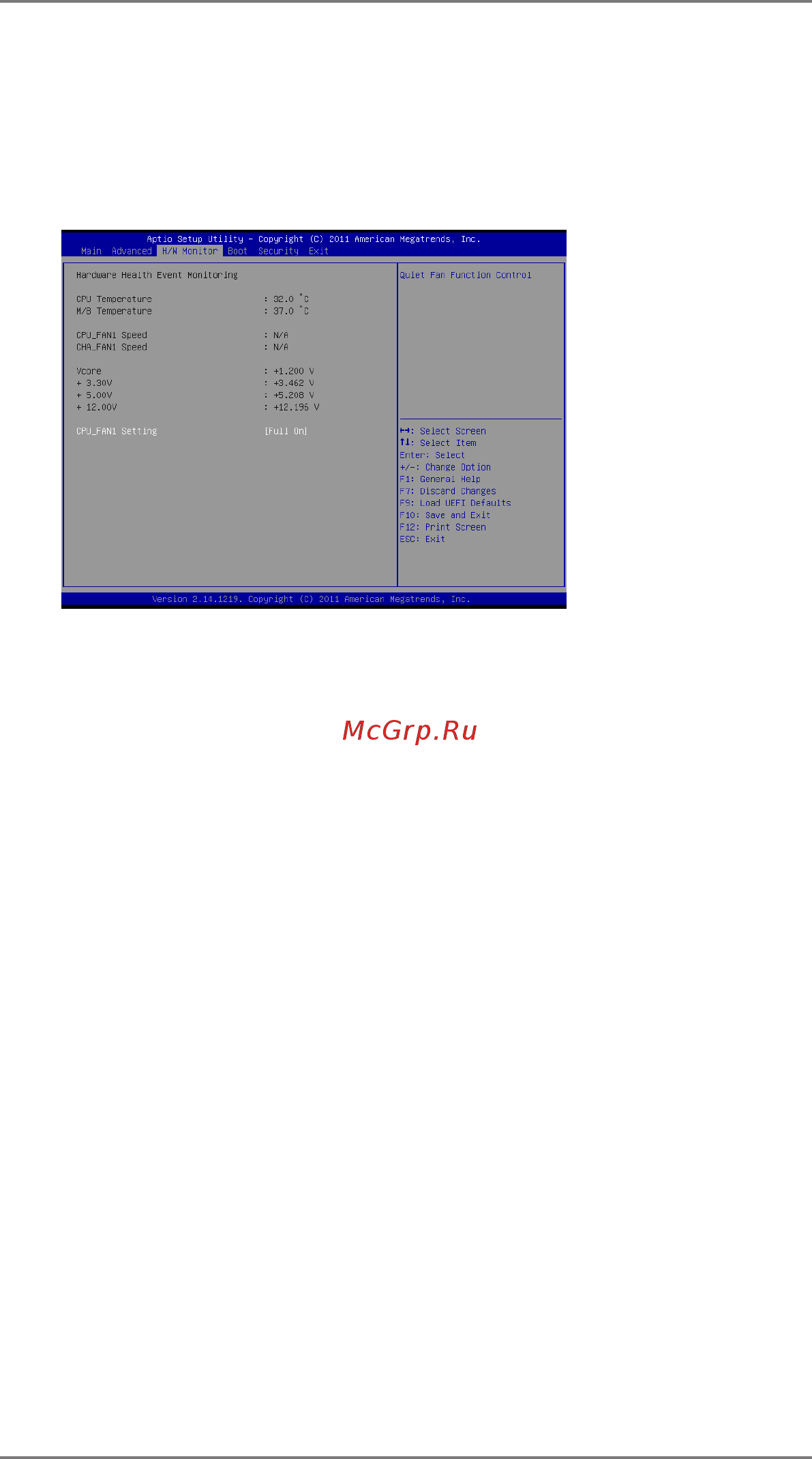

3.4 Hardware Health Event Monitoring Screen
This section allows you to monitor the status of the hardware on your sys-
tem, including the parameters of the CPU temperature, motherboard tem-
perature, fan speed and voltage.
CPU FAN1 Setting
This allows you to set CPU FAN1’s speed. Conguration options:
[Full On] and [Automatic Mode].
