ASRock IMB-146 Series [45/46] Security screen
![ASRock IMB-146 Series [45/46] Security screen](/views2/1693622/page45/bg2d.png)
45

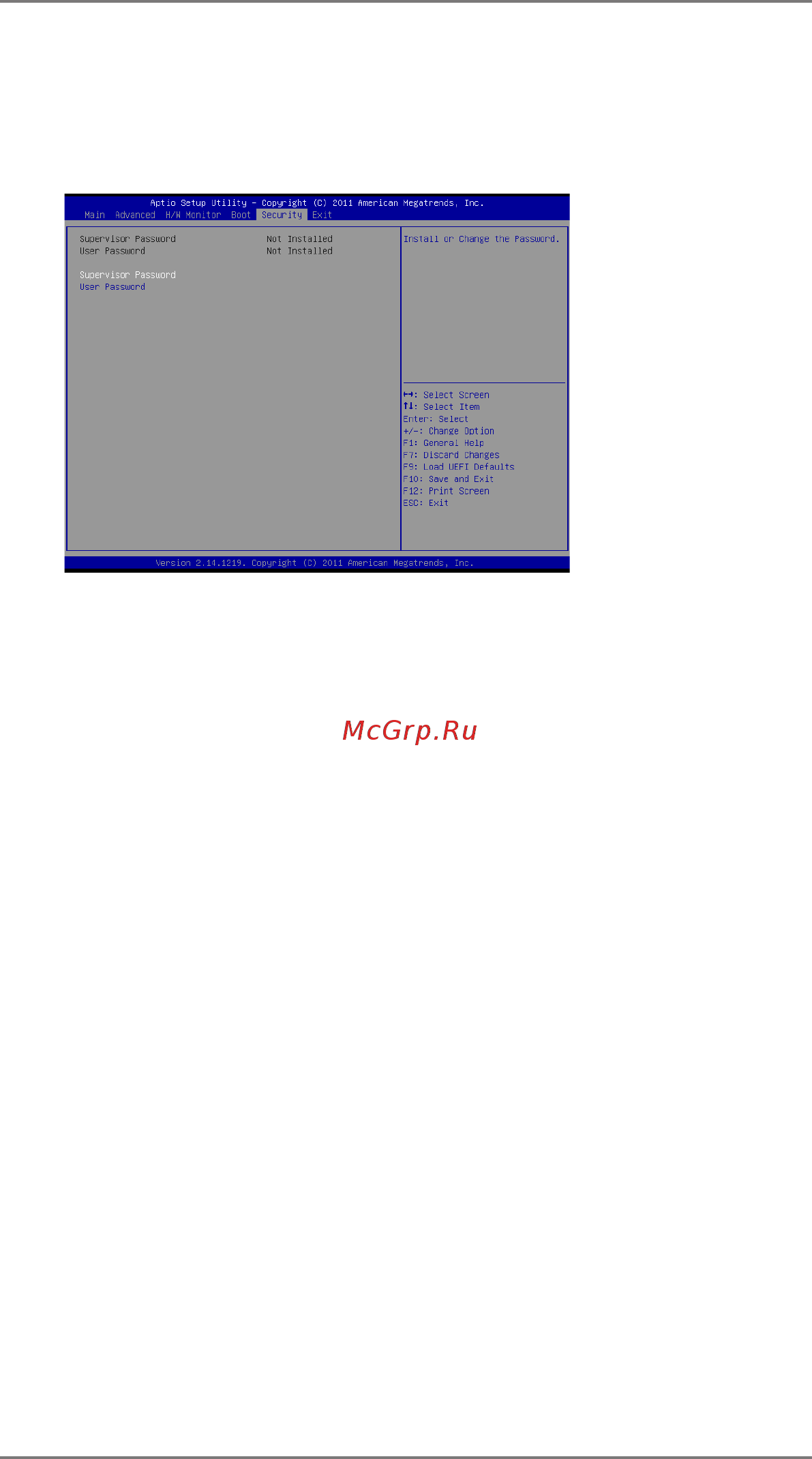

3.6 Security Screen
In this section you may set or change the supervisor/user password for the
system. You may also clear the user password.
