EDBE81-327 Operation Manual
Photocatalytic Air Purifiers 13

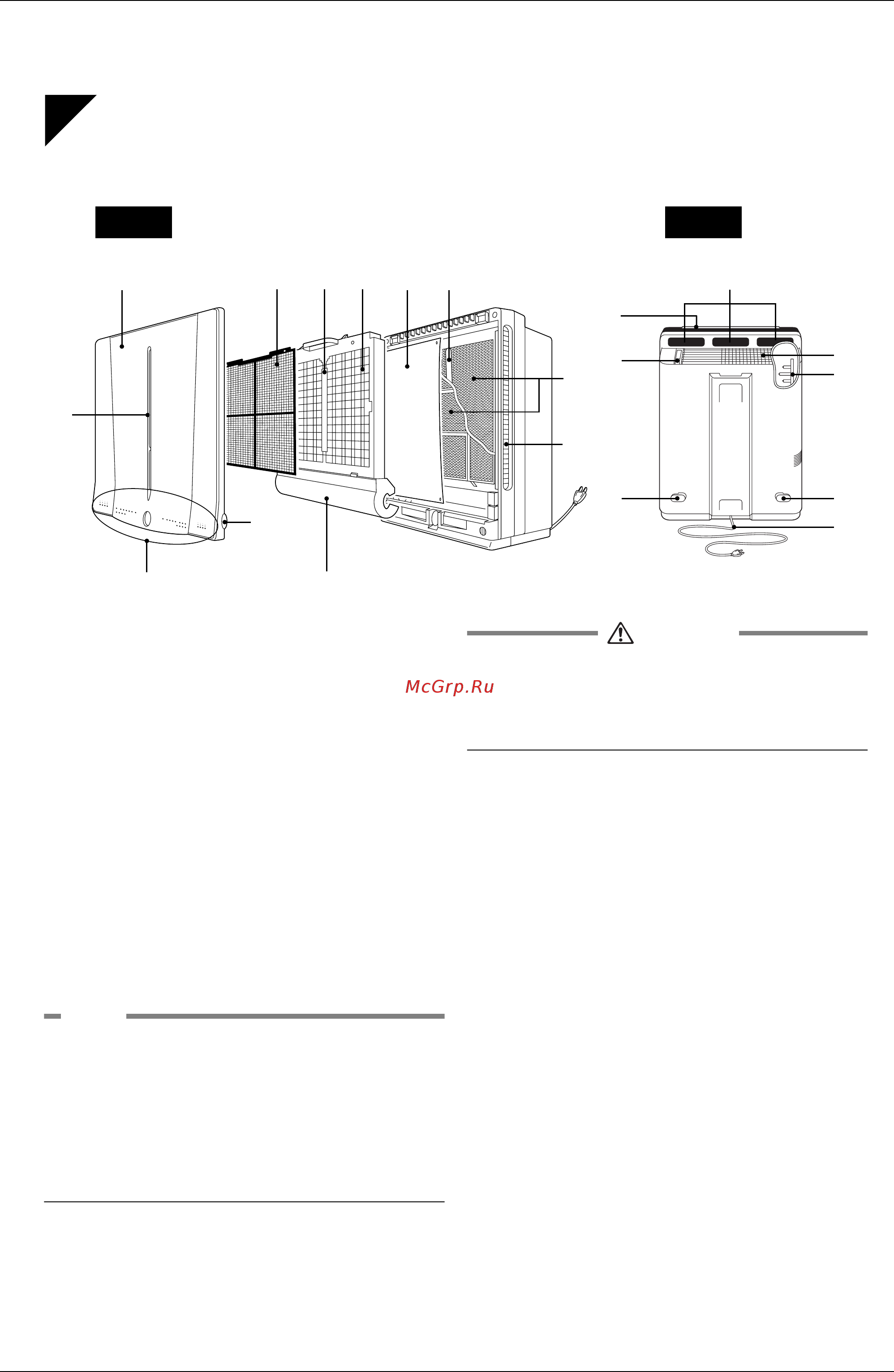

4.3 Names and Operation of each Part
Names and Operation of each Part
■
■■
■
Main unit
1 Front panel
2 Main unit display
(Page 4)
Shows operation status.
3 Knob for panel disassembly
4 Pre-filter
Removes comparatively large material and dust.
5 Plasma ionizer
Positively charges very small dust not collected in the pre-filter.
6 Filter roll receiver
Unified with the plasma ionizer.
7 Opposing pole plate
There are two, right and left, on the rear of the plasma ionizer.
8Filter roll
This filter is negatively charged and absorbs and removes positively
charged dust particles using static electricity.
9 Photocatalyst
This photocatalyst deodorizes and provides viral resistance using
light of a special inverter lamp.
10Special inverter lamp
Light strikes the photocatalyst activating it.
• There are no effects on the human body.
NOTE
Photo operation (photocatalyst format)
• Light from the special lamp striking the photocatalyst deactivates
bacteria and viruses by a strong oxidation action, thereby controlling
infectiousness.
Offensive odors such as cigarettes, garbage and exhaust gases
(NOx) are also decomposed.
(Toxic substances such as cigarettes (carbon monoxide) cannot be
removed.)
• When first used, there is a possibility that a catalyst odor may be
noticed coming from the outlet. This is normal.
It will be decomposed during operation and go away at next use.
CAUTION
• Do not strongly press on the photocatalyst.
The special inverter lamp located inside may be damaged.
• Do not remove the photocatalyst.
• Do not wash the photocatalyst in water.
• Do not look at the special inverter lamp directly for long periods of
time.
11Air inlet
12Remote controller storage slot
Stores the accessory remote controller
13Handle
Use when moving the main unit.
14Air outlet
15Negative ionization assembly
Generates negative ions. Functions to combine positively charged
toxic substances in a room and neutralize and transform them.
• If static electricity is applied, the amount of negative ions gener-
ated will be temporarily reduced.
16Power supply cord hook
Winds the power supply cord when storing the main unit.
Do not wind the cord during operation.
17Power supply cord
1
11
8 105 7
12
13
16
11
4
2
3
6
9
11
16
15
17
14
Front Rear
3
