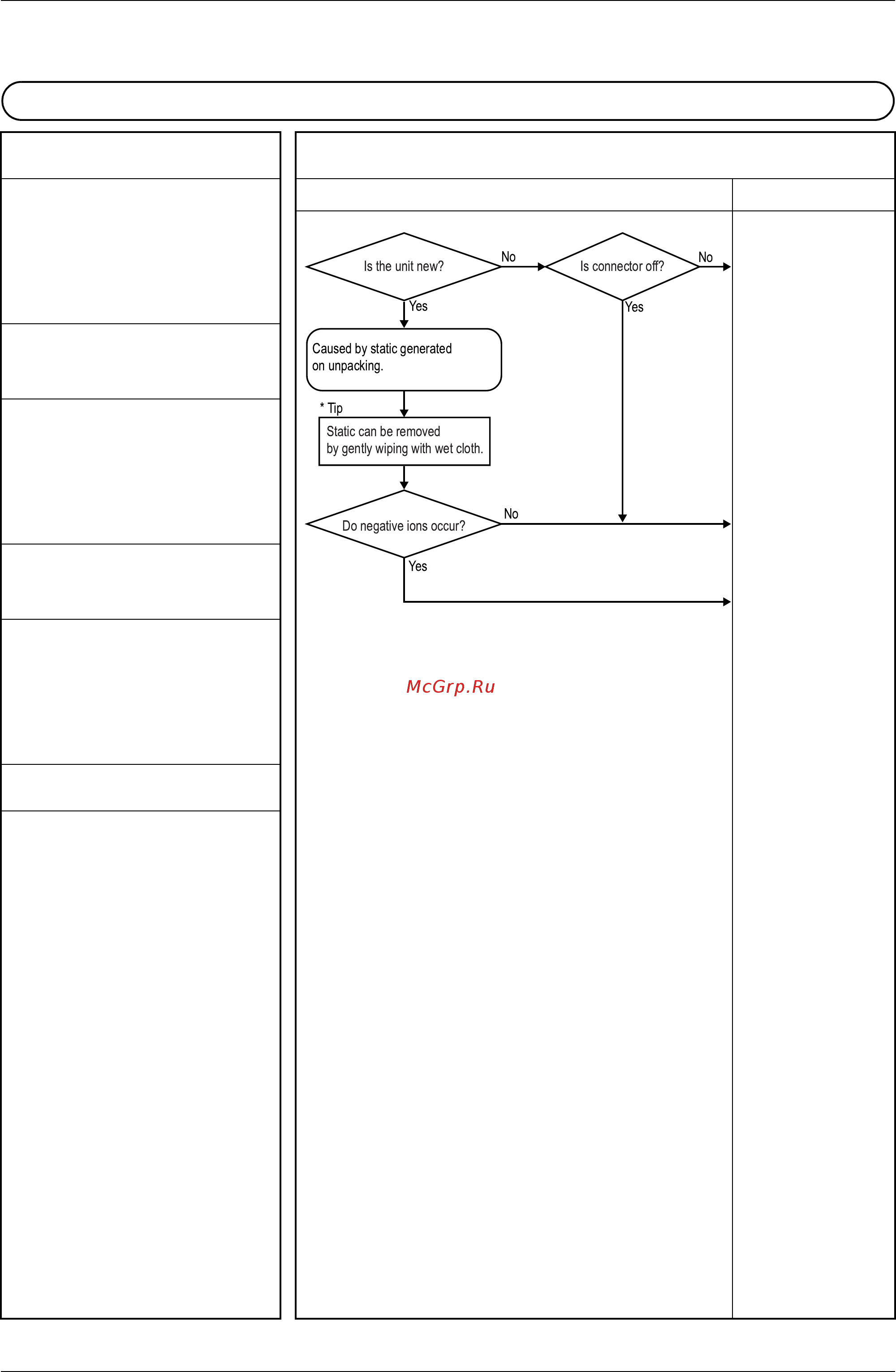

EDBE81-327 Troubleshooting
Photocatalytic Air Purifiers 31
1 Models Covered 5 Troubleshooting
*Be sure to insert/pull out the connector after
turning off the power. It may cause malfunction.
MC704VM
Diagnosis Remedy
The negative ion
generator may be
dirty. Clean up.
NOTE: Gently
clean with a cotton
swab. Do not bend
needles.
Check for connec-
tor connection.
Check for
operation.
Normal
2 Method of Mal-
function Detection
3 Malfunction Deci-
sion conditions
4 Supposed Causes
• The negative ion generator is dirty.
• Malfunction is caused by static
electricity.
(Operation will be restored as time
passes.)
• The connector is off.
7. Negative Ions are not Generated
