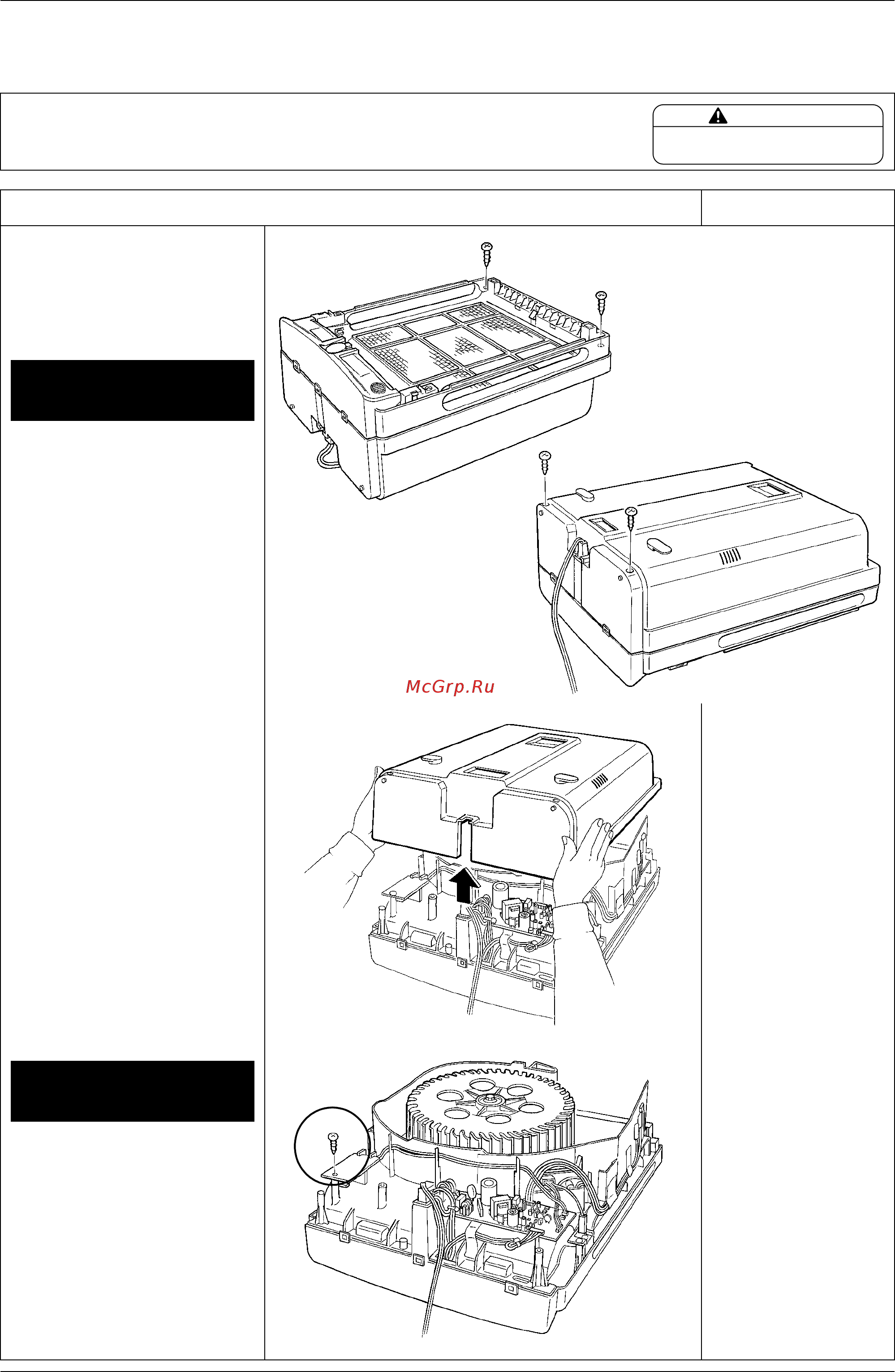

Photocatalytic Air Purifiers 35
EDBE81-327 Removal Procedure
7.3
Removal of Electrical Parts (Special Inverter Lamp)
Procedure Points
* The front panel has
been removed.
* The plasma ionizer has
been removed.
1. Removing the rear
cover
(1) Remove the screws
(2 pieces each in
front and on the rear)
and detach the back
cover.
2. Removing the
connector
* The tielap is supplied
with the unit. Replace it
after disassembly.
* The tielap has to be
equipped with the unit.
Reassemble it after
disassembly.
(1) Remove the screw
on the inverter PCB
WARNING
Make sure the unit is disconnected from
any power source before disassembly.
<Front>
<Rear>
