EDBE81-327 Optional Accessories
Photocatalytic Air Purifiers 23
5. Optional Accessories
5.1 Specifications/Dimension

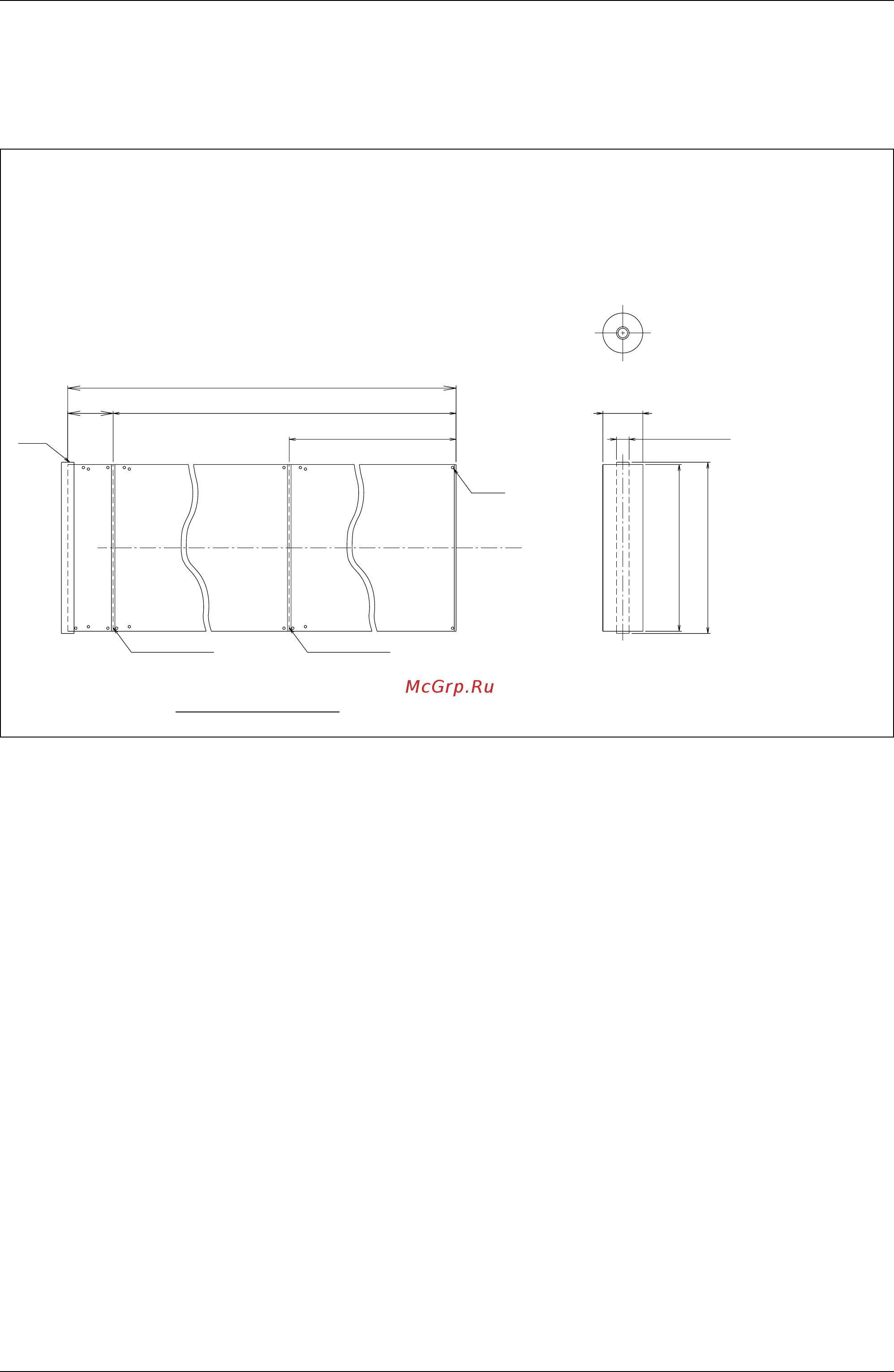

Filter Roll
CORE
BAC14D
90
PERFORATION
(
2400
) (
OVERALL FILTER LENGTH
)
DETAIL OF FILTER ROLL
330 × 7 = 2310
PERFORATION
330
SPECIFICATIONS
TARGET OF REPLACEMENT : ABOUT 7 YEARS
(
1SHEET/YEAR×7SHEETS
)
FILTER ELEMENT :
NONWOVEN FABRIC
(
ELECTROSTATIC PROPERTY
)
THICKNESS OF FILTER ELEMENT
: 1.6mm
FILTER
HOLE
CL
φ 73
φ 25
(
CORE
)
330
(
FILTER
)
339
(
CORE
)
3D040664
