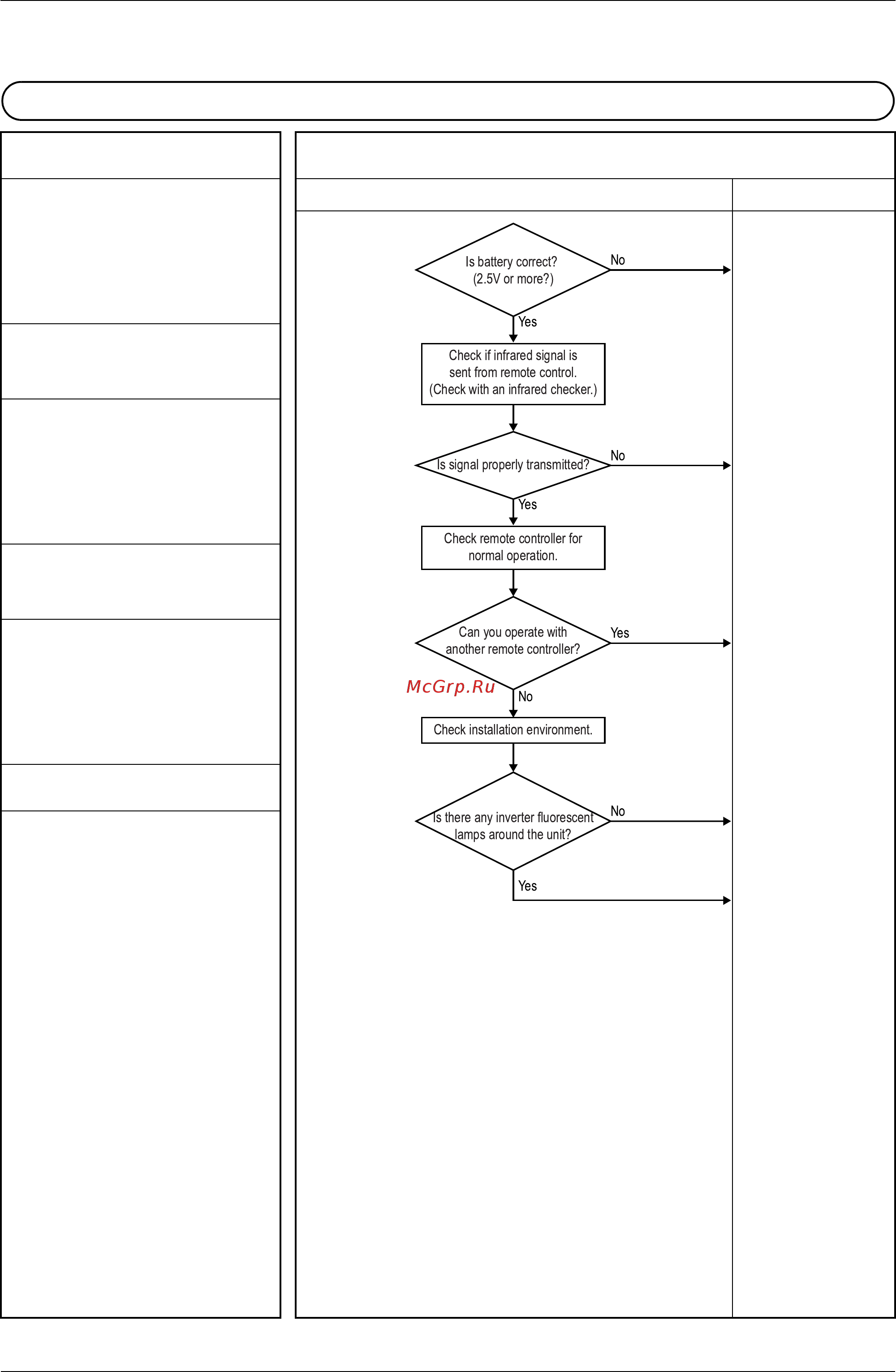

Troubleshooting EDBE81-327
26 Photocatalytic Air Purifiers
1 Models Covered 5 Troubleshooting
*Be sure to insert/pull out the connector after
turning off the power. It may cause malfunction.
MC704VM
Diagnosis Remedy
*Release child lock.
Replace battery.
Replace remote
controller.
Replace remote
controller.
Replace display
PCB.
Replace panel. Or
change installation
location.
2 Method of Mal-
function Detection
3 Malfunction Deci-
sion conditions
You can operate with ON/OFF
switch on the unit, but not with
remote controller.
4 Supposed Causes
• Remote controller battery is
exhausted.
• Remote controller is defective.
• Display PCB is defective.
• Malfunction is caused by inverter
fluorescent lamps.
2. Remote controller Sends Signals Erratically
