Daikin MC704AVM [29/44] Troubleshooting
![Daikin MC704VM [29/44] Troubleshooting](/views2/1694169/page29/bg1d.png)

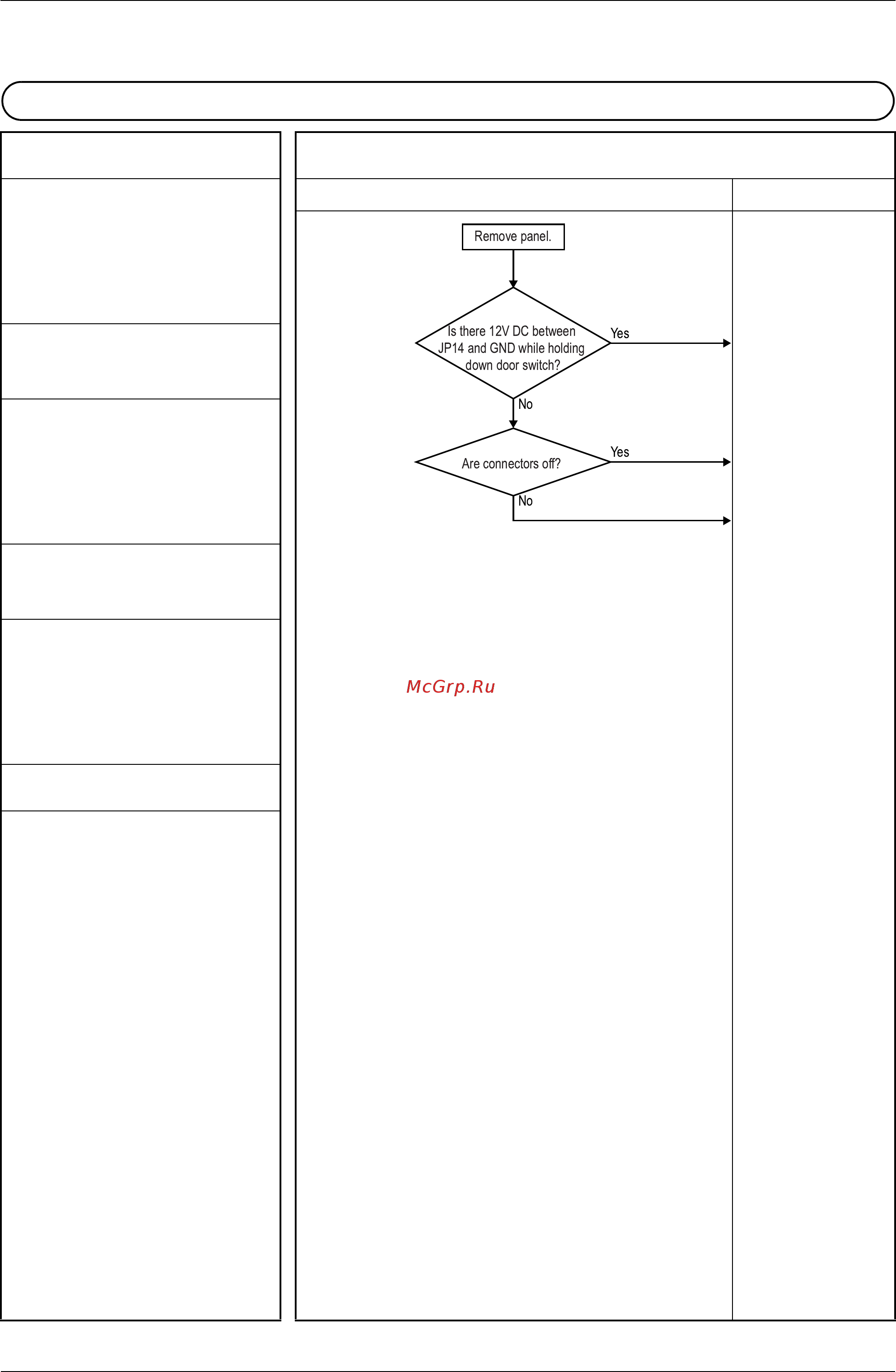

Troubleshooting EDBE81-327
28 Photocatalytic Air Purifiers
1 Models Covered 5 Troubleshooting
*Be sure to insert/pull out the connector after
turning off the power. It may cause malfunction.
MC704VM
Diagnosis Remedy
Replace display
PCB.
Plug in connectors.
Replace power
supply PCB (includ-
ing damaged varis-
ter or fuse).
Or replace door
switch.
2 Method of Mal-
function Detection
3 Malfunction Deci-
sion conditions
4 Supposed Causes
• Connector is off.
• Display PCB is defective.
• Power supply PCB is defective.
• Door switch is defective.
4. PCB is Defective
