34 Photocatalytic Air Purifiers
Removal Procedure EDBE81-327

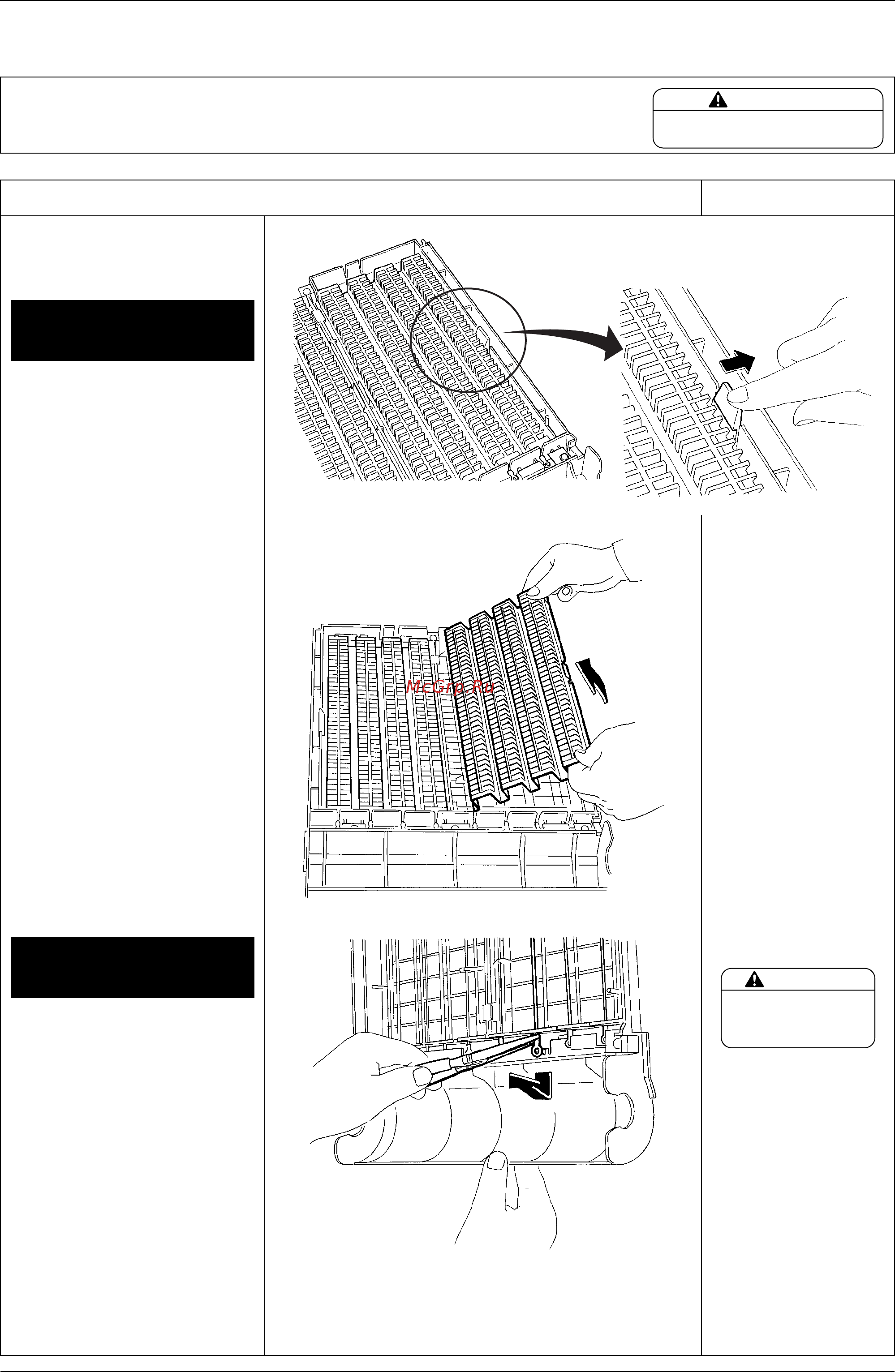

7.2 Removal of lonizing Wire
Procedure Points
* The front panel has
been removed.
1. Removing the
opposing plates
(1) Release the outer
claws and lift the
opposing plates to
remove.
2. Removing the
ionizing wire
(1) Pinch and remove
the ionizing wire with
pincers.
WARNING
Make sure the unit is disconnected from
any power source before disassembly.
CAUTION
Be careful not to cut
your hands with the
ionizing wire.
