28 29
English

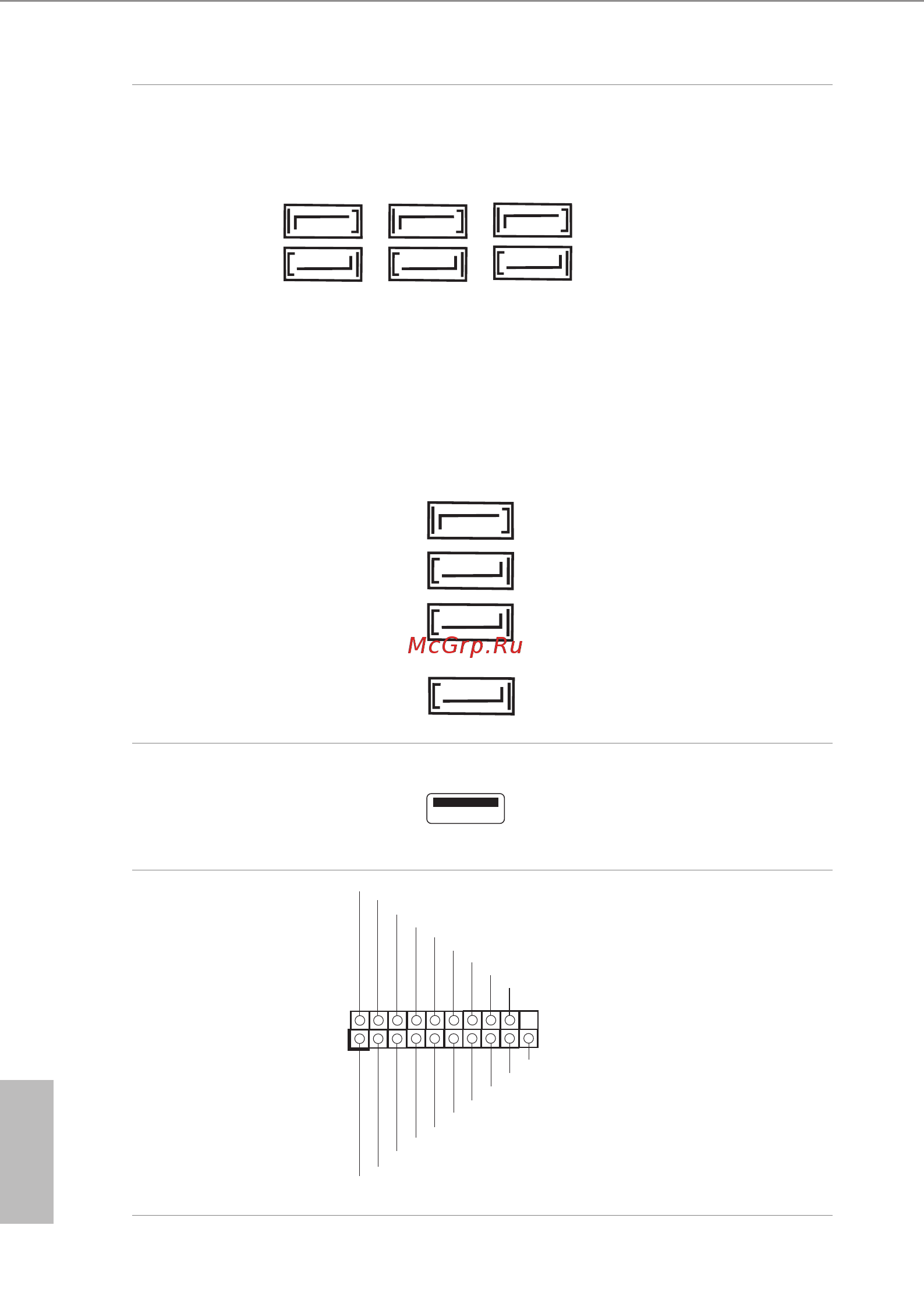

Serial ATA3 Connectors
(SATA_0)
(see p.7, No. 24)
(SATA_1)
(see p.7, No. 23)
(SATA_2)
(see p.7, No. 26)
(SATA_3)
(see p.7, No. 27)
(SATA_4)
(see p.7, No. 28)
(SATA_5)
(see p.7, No. 29)
(SSATA_0)
(see p.7, No. 17)
(SSATA_1)
(see p.7, No. 18)
(SSATA_2)
(see p.7, No. 20)
(SSATA_3)
(see p.7, No. 22)
These ten SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
USB 3.0 Connector
(USB3_3)
(see p.7, No. 19)
USB 3.0 Header
(19-pin USB3_4_5)
(see p.7, No. 16)
Besides two default USB 3.0
ports on the I/O panel, there
is one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
1
Dummy
GND
GND
Vbus
GND
GND
IntA_PA_SSRX+
Vbus
IntA_PA_D+
IntA_PA_D-
IntA_PA_SSTX+
IntA_PA_SSTX-
IntA_PA_SSRX-
IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PB_SSTX-
IntA_PBA_SSTX+
IntA_PB_D-
IntA_PB_D+
SATA_1
SATA_3
SATA_5
SATA_0
SATA_2
SATA_4
SSAT A_0
SSAT A_1
SSAT A_2
SSAT A_3
